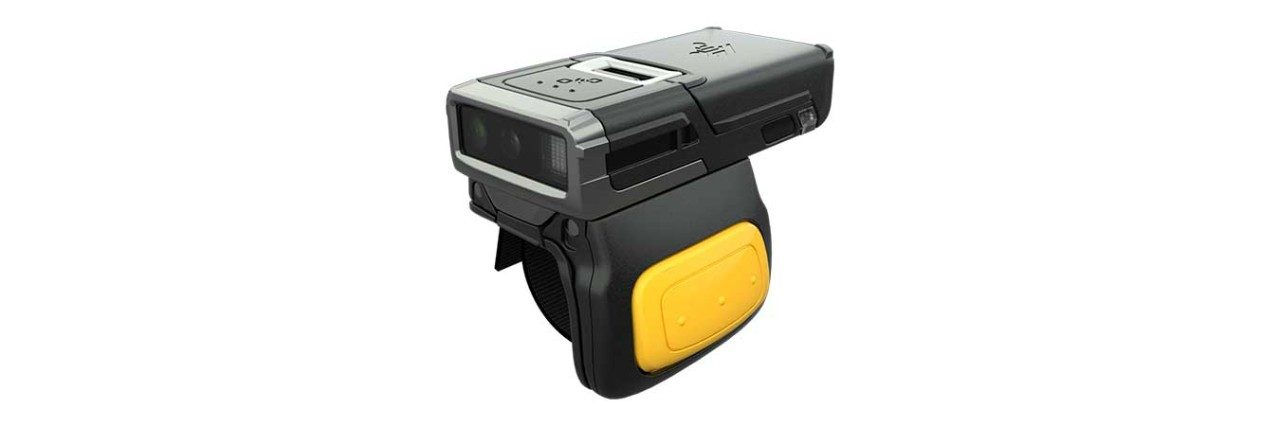

Zebra RS5100 Wearable bar code reader 1D/2D LED Black

RS5100 Ring Scanner, 1D/2D SE4710 610nm LED, Bluetooth 4.0

* Images are for illustrative purposes only.

£862.66 £718.88 Ex. VAT

Free UK Shipping Available*

Availability: 13 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Zebra RS5100 Wearable bar code reader 1D/2D LED Black

Manufacturer: Zebra
Category: Printers & Scanners
Sub-Category: Barcode Readers
EAN: 5704174285731


Finally, there’s a ring scanner that’s designed for use in customer-facing areas, as well as your warehouse and distribution center — the RS5100 next-generation ring scanner. It’s practically weightless, and so small your customers won’t even notice it. There’s a wearing option that will bring comfort to every worker. Best-in-class scanning enables instant capture of virtually every barcode at twice the range of legacy Bluetooth ring scanners. The rugged design outshines competitive devices. And a long list of features provides unsurpassed versatility and flexibility.

At just over two ounces and two cubic inches, it’s practically weightless (about 1/2 the size and weight of the legacy RS507x ring scanner). Wear it on a finger, the back of a hand or on a lanyard. The single-sided trigger model accommodates gloves; the double trigger model lets workers switch hands on the fly. And the top-mounted trigger on both models allows rotation of the RS5100 to the side of a finger for near-zero protrusion.

You get a best-in-class rugged design with a drop, tumble and IP sealing specification — so you can count on reliable operation despite drops, bumps, dust and even a high-pressure hose down. The long-life trigger handles millions of actuations. And the RS5100 is built to handle the high levels of electrostatic discharge common with use on concrete flooring.

Two scan engine options allow you to choose the imager that best matches your scanning and aimer requirements — LED or laser. Both imager engines deliver first time capture of even damaged, dirty and poorly printed 1D/2D barcodes through PRZM Intelligent Imaging, a megapixel sensor and superior algorithms — plus a wide field of view for easy capture of large barcodes. In addition, the two imagers can scan barcodes twice the distance as the legacy RS507x ring scanner.


Type Wearable bar code reader
Linear (1D) barcodes supported Code 11,Code 128,Code 39,Code 93,GS1 DataBar,MSI,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Yaw reading angle 0 – 360°
Wavelength 610 nm
Tilt reading angle -60 – 60°
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -60 – 60°
Light levels (direct sunlight) 0 – 107639 lx
Optical sensor resolution (W x H) 1280 x 960 pixels
Ports & interfaces
Connectivity technology Wireless
Bluetooth version 4.0
Bluetooth Low Energy (BLE) Yes
Standard interfaces Bluetooth
Near Field Communication (NFC) Yes
LED indicators Yes
Product colour Black
Light levels (direct sunlight) 0 – 107639 lx
Type Wearable bar code reader
LED indicators Yes
Product colour Black
Power source type Battery
Battery type Built-in battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 480 mAh
Weight & dimensions
Width 28 mm
Depth 21 mm
Height 61 mm
Weight 70 g
Technical details
Type Wearable bar code reader
LED indicators Yes
Product colour Black
Operational conditions
Storage temperature (T-T) -40 – 60 °C
Operating temperature (T-T) 0 – 50 °C
Operating relative humidity (H-H) 5 – 95%
Light levels (direct sunlight) 0 – 107639 lx

Weight 4010.0400 kg
