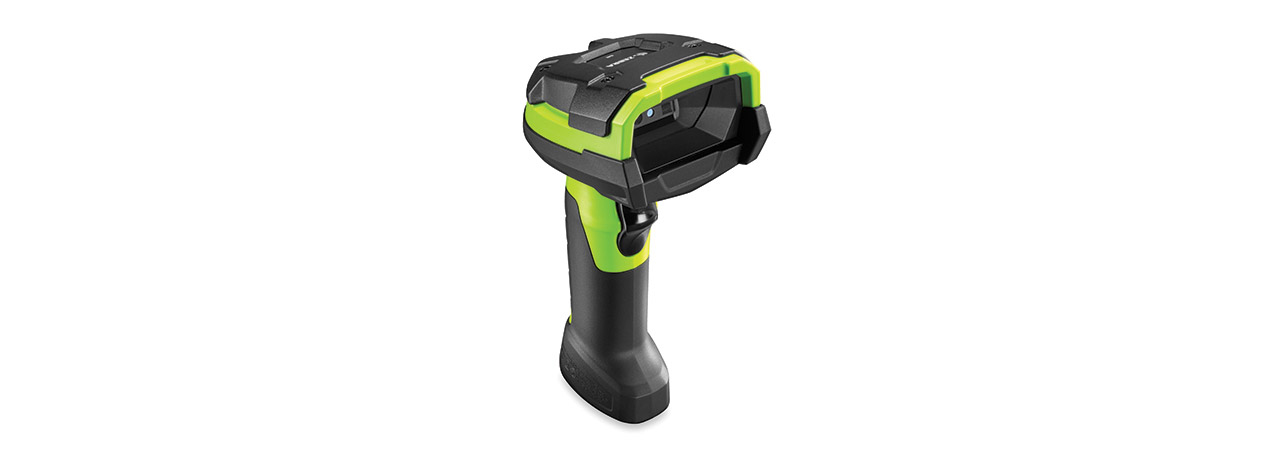

Zebra DS3608-SR 1D/2D LED Black,Green Handheld bar code reader

SKU: DS3608-SR3U4600VZW Category:

Zebra DS3608-SR 1D/2D LED Black,Green Handheld bar code reader

DS3608-SR, 1D/2D Imager, 610nm Led, 1280 x 800, One 660nm LED

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£398.11 £331.76 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Zebra DS3608-SR Handheld bar code reader 1D/2D LED Black,Green

Manufacturer: Zebra
Category: Printers & Scanners
Sub-Category: Barcode Readers
SKU: DS3608-SR3U4600VZW
EAN: 5711783197584

Description

UNSTOPPABLE PERFORMANCE FOR STANDARD RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world’s toughest environments — the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With 30 percent more working range, it’s easy to capture barcodes that are farther away. Even if barcodes are under shrinkwrap or damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets — and the cost of unplanned downtime on the production line is astronomical. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
Optical sensor resolution 1280 pixels
Yaw reading angle -45 – 45°
Wavelength 610 nm
Tilt reading angle -65 – 65°
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -65 – 65°
Ports & interfaces
Connectivity technology Wired
Ethernet LAN Yes
Standard interfaces RS-232,USB,Keyboard wedge
Performance
Programming function Yes
Design
Type Handheld bar code reader
Protection features Dust resistant,Shock resistant,Water resistant
RoHS compliance Yes
LED indicators Yes
International Protection (IP) code IP67
Product colour Black,Green
Power
Power source type Battery
Number of reads per charge 100000
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 3100 mAh
Weight & dimensions
Width 132 mm
Depth 76 mm
Height 185 mm
Weight 305 g
Technical details
Type Handheld bar code reader
Protection features Dust resistant,Shock resistant,Water resistant
RoHS compliance Yes
LED indicators Yes
International Protection (IP) code IP67
Product colour Black,Green
Programming function Yes
Networking
Ethernet LAN Yes
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Operating temperature (T-T) -30 – 50 °C
Operating relative humidity (H-H) 5 – 95%

Brand

UNSPSC

43211701
