SKU: VHW-HWPS-B Category:

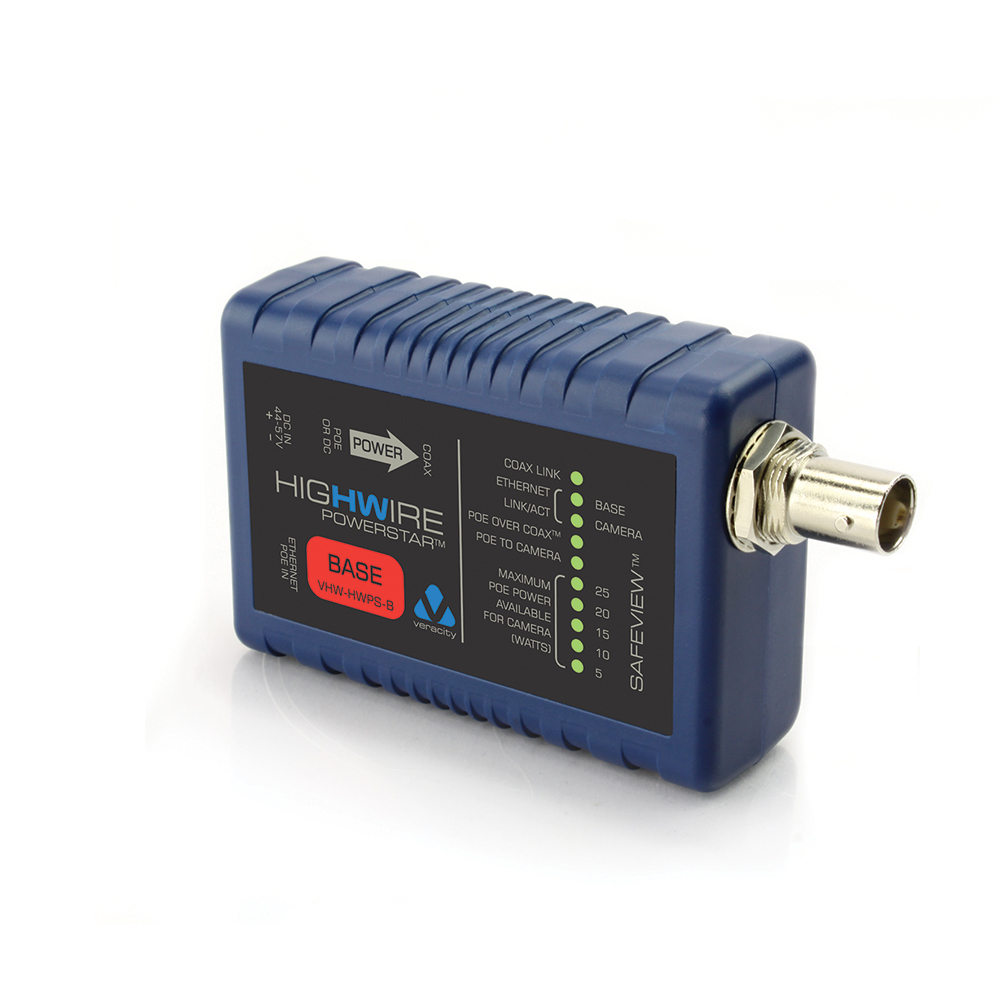

Veracity VHW-HWPS-B network media converter 100 Mbit/s Internal Blue

Highwire Base Unit, 1.5W, 100Base-T Ethernet, Blue

* Images are for illustrative purposes only.

£184.99 £154.16 Ex. VAT

Free UK Shipping Available*

Availability: 1 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Veracity VHW-HWPS-B network media converter 100 Mbit/s Internal Blue

Manufacturer: Veracity
Category: Networking
Sub-Category: Network Media Converters
SKU: VHW-HWPS-B
EAN: 0892314002210 5711045156182 5052184102563 5054629915523

Description

Fast Ethernet and POE power over coax video cable
HIGHWIRE POWERSTAR lets you install IP cameras easily, quickly, and reliably, without the disruption and expense of installing new cable.

Support for your camera is assured, thanks to HIGHWIRE’s unique full-rate Ethernet over Coax technology, which has been tested and trusted by thousands of IP installers worldwide over the past five years.

And now with POE over Coax, you can deliver up to 25 watts of POE power to the camera as well, eliminating the complexity of installing local power supplies.

Simply add power
With no configuration or measurement required, installation of HIGHWIRE PowerStar is as straightforward as plugging it in.

Two models are used, as shown in the diagram below. The BASE unit receives POE power and transmits it down the coax. The CAMERA unit receives power from the coax and delivers up to full POE Plus power to the IP camera.

If PoE is not available, or for an extra power boost at either end of the cable, just connect the optional power supply.

Installer friendly
For fast installation and guaranteed performance, HIGHWIRE POWERSTAR features Veracity’s unique SafeView display.

SafeView provides an instant and easy-to-understand confirmation of network and power status right across the cable, with no need to access remote equipment to check connections.

Meanwhile, safe and compliant detection of POE equipment and POE over coax compatibility ensures correct operation, with no risk of damage to non-POE or legacy analog equipment.

Reliability assured
Because the length and quality of installed coaxial cable is hard to predict or measure, it is important to have confidence that the cable you are upgrading has the capacity to deliver continuous, reliable power to the new IP camera.

However, thanks to HIGHWIRE POWERSTAR’s ultra low-power design and efficient power delivery, even the lowest grade of cheap RG-59 will support a 10 watt IP camera at any range likely to be found in a legacy installation. And once connected, the SafeView power display instantly reaffirms that the actual power available to the camera is sufficient.

For predictable network performance, HIGHWIRE’s proven technology delivers full network bandwidth, right to the limits of range. And secure screw-terminal DC connections, or the option of using a UPS-backed POE source, provide the last link in assuring continuous power delivery.

Specifications

Technical details
Maximum transfer distance 500 m
Internal Yes
Performance
Auto-negotiation Yes
Maximum transfer distance 500 m
Networking
Auto-negotiation Yes
Converter input interface 100Base-T
Networking standards IEEE 802.3af,IEEE 802.3at
Ethernet LAN data rates 100 Mbit/s
Duplex system Full
Maximum data transfer rate 100 Mbit/s
Ports & interfaces
BNC ports quantity 1
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Indication
LED indicators Yes
Design
RoHS compliance Yes
LED indicators Yes
Product colour Blue
Certification FCC, CE, RoHS
Internal Yes
Power
Power consumption (max) 25 W
Power over Ethernet (PoE) Yes
Input voltage 40 – 57 V
Input current 0.7 A
Power consumption (typical) 1.5 W
Colour
Product colour Blue
Weight & dimensions
Width 54 mm
Depth 103 mm
Weight 50 g
Height 25 mm
Package depth 130 mm
Package width 75 mm
Package height 32 mm
Package weight 70 g
Operational conditions
Operating temperature (T-T) -10 – 50 °C
Storage relative humidity (H-H) 0 – 85%
Packaging data
Package depth 130 mm
Package width 75 mm
Package height 32 mm
Package weight 70 g
Packaging content
Quick installation guide Yes
Manual Yes
Certificates
RoHS compliance Yes
Certification FCC, CE, RoHS

Brand

UNSPSC

43201553
