Elevate the Huddle Room Experience

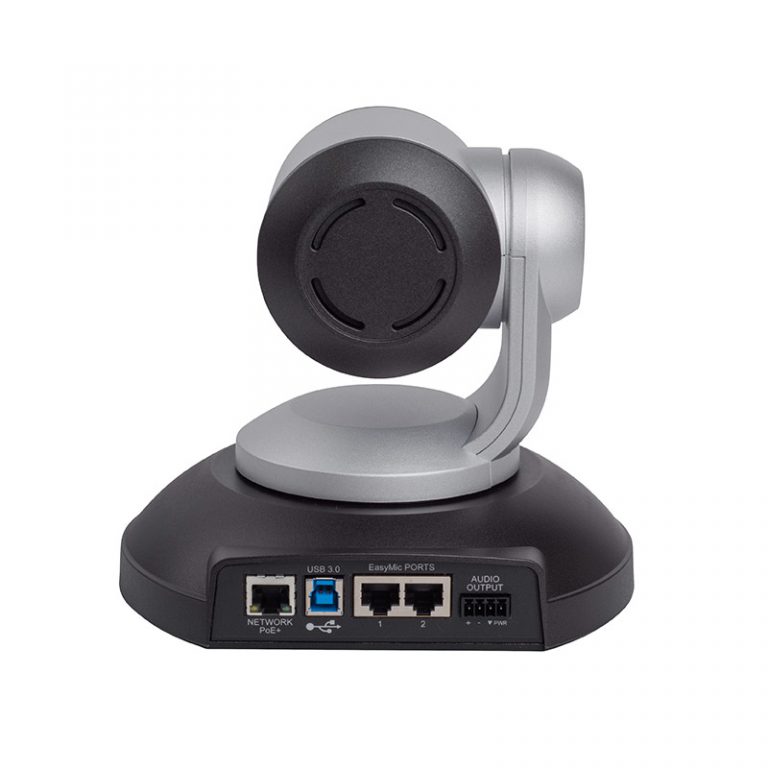

Ideal for huddle rooms and small to medium conference rooms, the Vaddio™ ConferenceSHOT AV brings video conferencing to a new level with sharp video and powerful sound. ConferenceSHOT AV is a PTZ 10x zoom camera with audio inputs and outputs that let you connect a speaker and two Vaddio microphones.
The USB 3.0-based ConferenceSHOT AV supports any collaboration application enabling UC soft clients, such as Skype for Business, WebEx, Google and others, to become a group collaboration application. ConferenceSHOT is UVC compliant, requiring no drivers to be installed on your PC – just plug and play.
With a 74-degree wide horizontal field-of-view and 10x optical zoom with 11x zoom in super-wide mode, the ConferenceSHOT AV is ideal for small meeting spaces in corporate, healthcare, government and education environments.
The high-definition ConferenceSHOT AV provides amazing high quality imaging, exceptional color reproduction and truly fine detail.
ConferenceSHOT AV incorporates the Vaddio Remote Management system – providing remote monitoring, management and control of a distributed camera network. IP-accessible and a built-in Web server enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
Vaddio offers a variety of ConferenceSHOT AV bundles for small meeting spaces. ConferenceSHOT AV Speakers are sold separately or in system bundles. For smaller rooms, the ConferenceSHOT AV with a single EasyUSB table MicPOD is ideal; for larger rooms, two EasyUSB MicPOD microphones (table or ceiling) connected with the Vaddio powered loudspeaker provide complete room coverage.
| Feature | Feature Value |
|---|---|
| Product colour | Black,Silver |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -165 – 165° |
| Pan speed | 90 °/sec |
| Tilt speed | 90 °/sec |
| Tilt angle range | -30 – 90° |
| Megapixel | 2.14 MP |
| HD type | Full HD |
| Supported video modes | 1080p |
| Maximum frame rate | 60 fps |
| Video codecs | H.264 |
| Frequency range | 20 – 20000 Hz |
| Line-out impedance | 50 Ω |
| Output voltage Total Harmonic Distortion (THD) | 0.02% |
| Noise reduction | Y |
| Echo cancellation | Y |
| Automatic gain control | Y |
| Speaker power | 20 W |
| USB 3.0 Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Line-out | Y |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Web-based management | Y |
| Management protocols | Telnet |
| Sensor type | CMOS |
| Image sensor size | 1/2.8″ |
| Focal length range (f-f) (normal mode) | 3.8 – 38 mm |
| Optical zoom (normal mode) | 10x |
| Optical zoom (super-wide mode) | 11x |
| Wide end viewing angle (normal mode) | 67° |
| Tele end viewing angle (normal mode) | 7.6° |
| Wide end viewing angle (super-wide mode) | 74° |
| Tele end viewing angle (super-wide mode) | 7.6° |
| Focus adjustment | Auto/Manual |
| Remote control interface | IR wireless |
| Aperture range (F-F) | 1.8 – 3.4 |
| Minimum illumination | 100 lx |
| White balance | Auto,Manual,One push |
| Closest focusing distance (wide) | 0.01 m |
| Closest focusing distance (tele) | 1 m |
| Lens modes | Normal lens mode,Super-wide lens mode |
| Back Light Compensation (BLC) | Y |
| Sync system | Internal |
| Built-in display | N |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -5 – 60 °C |
| Storage relative humidity (H-H) | 20 – 80% |
| Power over Ethernet (PoE) power per port | 25 W |
| Speaker dimensions (WxDxH) | 184 x 171 x 92 mm |
| Camera dimensions (WxDxH) | 155 x 145 x 163 mm |
| Weight | 2.08 kg |
| PoE adapter included | Y |
| Mounting kit | Y |
| Speaker included | Y |
| Camera included | Y |
