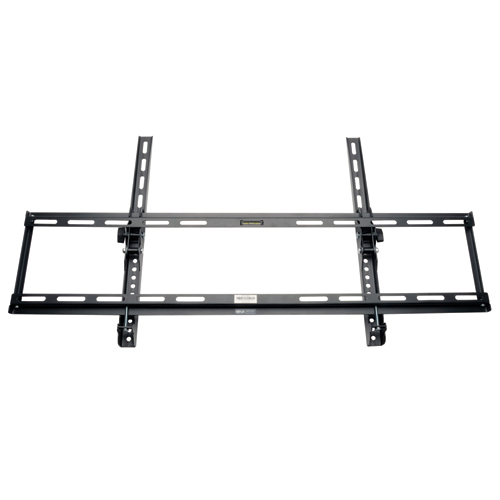

Tripp Lite Tilt Wall Mount for 37" to 70" TVs and Monitors

SKU: DWT3770X Category:

Tripp Lite Tilt Wall Mount for 37" to 70" TVs and Monitors

* Images are for illustrative purposes only.

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£61.16 £50.97 Ex. VAT

Availability: 1 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The VESA-compliant DWT3770X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 91 kgs (200 lbs.) Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.

Mounts Your TV or Monitor to the Wall
● Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
● Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
● Mounts out of sight behind display for sleek, professional appearance
● Mounting hardware included

Convenient One-Touch Adjustment
● -10° to 0° tilt capability provides comfortable viewing from multiple angles
● Improves viewing angles in applications where audience is below the display

Durable Metal Construction
● Supports up to 90 kg (200 lb.)
● Open frame allows easy wall access
● Adjustable mounting rails compensate for off-center wall studs
● Built-in bubble level for accurate display leveling
● Scratch-resistant powder-coated finish

VESA Compliance
● Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm

● Fits most flat-panel displays from 37 to 70 in.
● Hangs out of sight for a sleek, professional appearance
● -10° to 0° tilt capability for comfortable viewing
● 5-year warranty
● Supports up to 91 kg (200 lb.)

Package Includes

● DWT3770X Tilt Wall Mount for 32″ to 70″ TVs and Monitors
● (4) M5 x 14 screws
● (4) M6 x 14 screws
● (4) M6 x 30 screws
● (4) M8 x 20 screws
● (4) M8 x 30 screws
● (4) Washers
● (8) Small spacers
● (4) Big spacers
● (6) Anchor bolts
● (6) Concrete anchors
● (6) D6 washers
● Owner’s manual


Feature Feature Value
Maximum weight capacity 91 kg
Maximum screen size compatibility 177.8 cm (70″)
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 800 x 400 mm
Minimum screen size compatibility 94 cm (37″)
Panel mounting interface 100 x 100,200 x 100,200 x 200,400 x 200,400 x 400,600 x 400,800 x 400
Number of displays supported 1
Tilt angle range -10 – 0°
Product colour Black
RoHS compliance Y
Weight 3.29 kg
Minimum VESA mount

100 x 100 mm

Weight

3.29 kg

Maximum VESA mount

800 x 400 mm

Panel mounting interface

100 x 100,200 x 100,200 x 200,400 x 200,400 x 400,600 x 400,800 x 400
