Tripp Lite Swivel/Tilt Wall Mount for 17" to 42" TVs and Monitors, 80° Swivel, -15° to +15° Tilt, -4° to +4° Screen Adjustment

SKU: DWM1742MN Category:

Tripp Lite Swivel/Tilt Wall Mount for 17" to 42" TVs and Monitors, 80° Swivel, -15° to +15° Tilt, -4° to +4° Screen Adjustment

* Images are for illustrative purposes only.

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£68.68 £57.23 Ex. VAT

Availability: 9 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

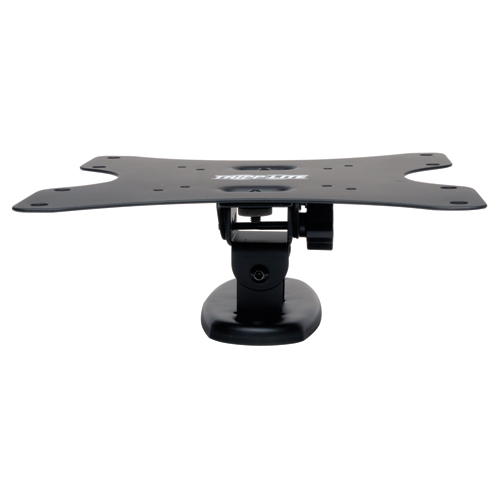

The VESA-compliant DWM1742MN Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches. Adjust the display angle to fit your environment and comfort level. An 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 52 kgs (115 lbs.) Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm.

Mounts Your TV or Monitor to the Wall
● Fits most flat-panel televisions, monitors and other displays from 17 to 42 in.
● Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
● Display angle adjusts to fit your environment and comfort level
● Mounting hardware included

Convenient One-Touch Adjustment
● 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability provides comfortable viewing from multiple angles

Durable Metal Construction
● Supports up to 52 kg (115 lb.)
● Scratch-resistant powder-coated finish
● Fully assembled for immediate installation

VESA Compliance
● Supports the following VESA mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm

● Fits most flat-panel displays from 17 to 42 in.
● One-touch adjustment for comfortable viewing
● 80° swivel, -15° to +15° tilt and -4° to +4° screen adjustment
● 5-year warranty
● Supports up to 52 kg (115 lb.)

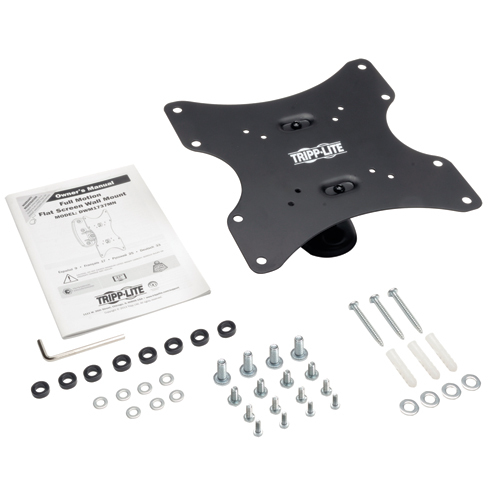

Package Includes

● DWM1742MN Swivel/Tilt Wall Mount for 17″ to 42″ TVs and Monitors
● (4) M4 x 14 screws
● (4) M5 x 14 screws
● (4) M6 x 14 screws
● (4) M8 x 20 screws
● (4) D5 washers
● (4) D8 washers
● (8) Small spacers
● (3) Anchor bolts
● (3) Concrete anchors
● (3) D6 washers
● Hex key, 4 mm
● Owner’s manual


Feature Feature Value
Maximum weight capacity 52 kg
Maximum screen size compatibility 106.7 cm (42″)
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 200 x 200 mm
Minimum screen size compatibility 43.2 cm (17″)
Panel mounting interface 75 x 75,100 x 100,200 x 100,200 x 200
Tilt angle range -15 – 15°
Swivel angle 80°
Product colour Black
RoHS compliance Y
Weight 1.64 kg
Minimum VESA mount

75 x 75 mm

Weight

1.64 kg

Maximum VESA mount

200 x 200 mm

Panel mounting interface

75 x 75,100 x 100,200 x 100,200 x 200
