SKU: SRW18USG Category:

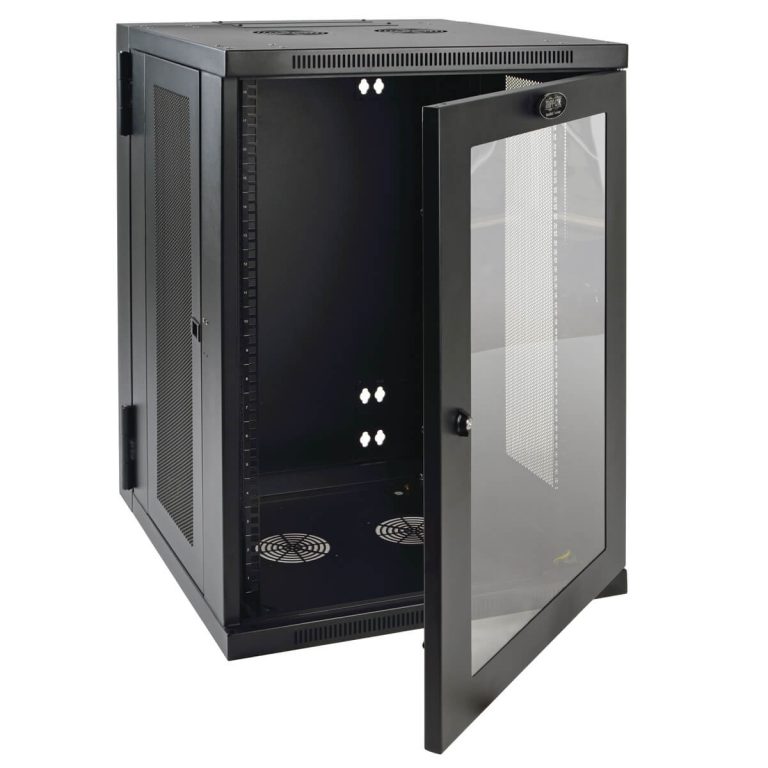

Tripp Lite SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window, Hinged Back

* Images are for illustrative purposes only.

£542.28 £451.90 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

The SRW18USG comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.

Saves Valuable Workspace
– Perfect for network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way
– Houses EIA-standard 19 in. rack equipment in 18U of space
– Maximum load capacity of 250 lb.

Hinged Cabinet for Convenient Access
– Swings away from the wall to allow easy access to equipment and cabling during installation and maintenance
– Rotate cabinet 180° before mounting to open reversible front door left or right

Shatter-Resistant Clear Acrylic Front Window
– Lets you monitor equipment without unlocking the enclosure
– Prevents equipment tampering
– Reduces acoustic noise
– Provides extra visual flair

Keeps Important Equipment Secure
– Side panels and front door lock securely
– Vented panels allow generous airflow that keeps equipment cool
– Convenient ports with removable covers allow cable routing through top and bottom

Easy Enclosure and Equipment Installation
– Ships fully assembled for quick installation
– Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit
– Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement
– Vertical mounting rails adjust in 7/8 in. increments to house equipment up to 20.5 in. deep
– Rails support square-hole or 12-24 threaded-hole mounting
– Rack spaces numbered for easy reference

Meets Payment Card Industry Standards
– Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

Package Includes
– SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
– (42) M6 screws
– (42) M6 cage nuts
– (42) M6 washers
– (42) 12-24 screws
– (2) Keys
– Owner’s manual


Feature Feature Value
Rack capacity 18U
Type Freestanding rack
Maximum weight capacity 113 kg
Product colour Black
Material Steel
Cable management Y
RoHS compliance Y
Certification UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100
Size 48.3 cm (19″)
Width 600 mm
Depth 548.6 mm
Height 904.2 mm
Weight 43.5 kg
Nuts included Y
Number of nuts 42
Screws included Y
Number of screws 42
Number of washers included 42
Manual Y
Package width 685.8 mm
Package depth 609.6 mm
Package height 1041.4 mm
Package weight 49.9 kg
Rack capacity

18U

Material

Steel

Size

48.3 cm (19")

Weight

43.5 kg

Type

Freestanding rack

Width

600 mm
