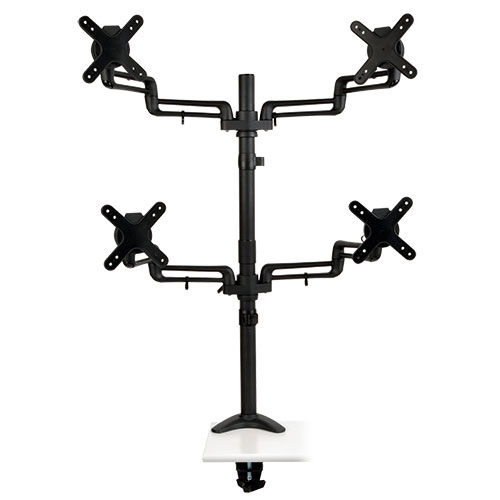

The VESA-compliant DDR1327SQFC Quad Full Motion Flex Arm Desk Clamp attaches to your desk, table or workstation, allowing you to mount up to four monitors above it and free up valuable workspace. Ideal for home and office, the DDR1327SQFC fits most flat-panel displays from 13 to 27 inches. Swivel arms can be independently adjusted for angle to give you maximum flexibility in positioning your monitors to fit your environment and comfort level. Move a screen closer to you, and push screens out of your way when not in use. A 180° swivel and -15° to +15° tilt capability minimizes glare and provides comfortable viewing from multiple angles. A 360° rotation lets you view your monitor in portrait or landscape orientation. Durable clamp attaches to most flat surfaces up to 3.5 inches thick with a firm grip, or you can install it using a desk hole up to 2.75 inches in diameter. Each swivel arm supports up to 10 kgs (22 lbs.) The durable all-metal frame with scratch-resistant powder-coated finish tolerates frequent handling and blends with any décor. Mounting hardware is included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm and 100 x 100 mm.
Attaches to Most Desks, Tables and Workstations
● Clamps securely to most flat surfaces from 0.4 in. to 3.5 in. to mount up to 4 monitors
● Also attaches to desk using surface hole from 0.4 in. to 2.75 in. diameter
● Fits most flat-panel displays from 13 to 27 in.
● Swivel arms adjust independently for angle
● Ideal for home and office use
Convenient One-Touch Adjustment
● 180° swivel and -15° to +15° tilt capability provides comfortable viewing from multiple angles
● Full 360° rotation for viewing in portrait or landscape orientation
Durable Metal Construction
● Each swivel arm supports up to 9 kg (22 lb.)
● Scratch-resistant powder-coated finish blends with any décor
● Mounting hardware included
● Display cables attach to mount to reduce clutter
VESA Compliance
● Supports the following VESA mounting hole patterns: 75 x 75 mm and 100 x 100 mm
● Fits most flat-panel displays from 13 to 27 in.
● One-touch adjustment for comfortable viewing
● 5-year warranty
● 180° swivel and -15° to +15° tilt for wide range of motion
● Each swivel arm supports up to 10 kg (22 lb.)
Package Includes
● (2) Adapter bracket assemblies
● Top pole
● Bottom pole
● Connector
● Desk clamp assembly
● (16) M4 screws
● (16) M5 screws
● (16) D5 washers
● Base plate
● Pad
● Hex key, 3 mm
● Hex key, 4 mm
● Owner’s manual
| Feature | Feature Value |
|---|---|
| Maximum weight capacity | 9.98 kg |
| Maximum screen size compatibility | 68.6 cm (27″) |
| Minimum screen size compatibility | 33 cm (13″) |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 4 |
| Tilt angle range | -15 – 15° |
| Swivel angle | 180° |
| Angle of rotation | 360° |
| Cord management | Y |
| Product colour | Black |
| Housing material | Steel |
| Width | 853.9 mm |
| Depth | 115 mm |
| Height | 880.1 mm |
| Manual | Y |
