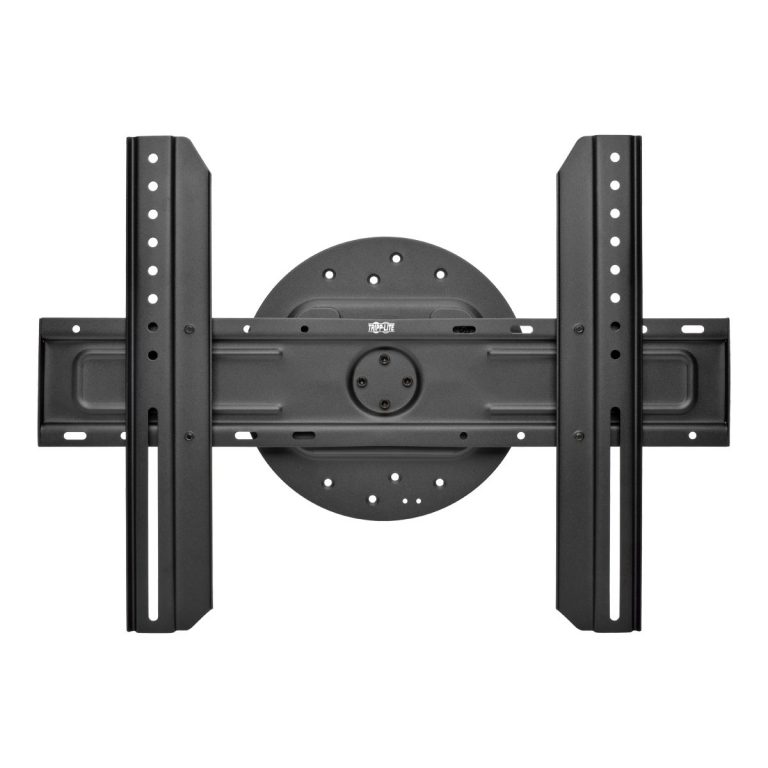

The VESA-compliant DWM3770PLX Portrait/Landscape Rotatable Fixed Flat-Screen Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. The DWM3770PLX effortlessly rotates 90 degrees to position your display in either portrait or landscape mode to fit your environment and comfort level. The durable all-metal frame with scratch-resistant powder-coated finish supports up to 50 kgs (110 lbs.) To ease wall installation, the VESA plate attached to the display slides down into the wall-mounted plate. Mounting hardware is included. A built-in bubble level allows accurate wall plate leveling. The DWM3770PLX conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm and 600 x 400 mm.
Mounts Your TV or Monitor to the Wall
● Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
● Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants
● Mounting hardware included
● Display plate slides down into wall plate for easy wall-mounting
Allows 90° Rotation
● Spins effortlessly for portrait or landscape viewing
Durable Metal Construction
● Supports up to 49 kg (110 lb.)
● Scratch-resistant powder-coated finish blends with any décor
● Built-in bubble level allows accurate display leveling
VESA Compliance
● Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm and 600 x 400 mm
● Fits most flat-panel displays from 37 to 70 in.
● Rotates smoothly 90° from portrait to landscape and vice versa
● Slide-in VESA plate for easy mounting
● Durable metal construction
● Supports up to 50 kg (110 lb.)
Package Includes
● Wall plate
● Universal plate
● (2) Adapter brackets
● (4) M5 x 14 screws
● (4) M6 x 14 screws
● (4) M6 x 10 screws
● (4) M6 x 30 screws
● (4) M8 x 20 screws
● (4) M8 x 30 screws
● (4) Washers
● (4) D6 washers
● (8) Small spacers
● (4) Big spacers
● (4) Anchor bolts
● (4) Concrete anchors
● Hex key, 4 mm
● Owner’s manual
| Feature | Feature Value |
|---|---|
| Maximum weight capacity | 50 kg |
| Maximum screen size compatibility | 177.8 cm (70″) |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Minimum screen size compatibility | 94 cm (37″) |
| Suitable for | Computer monitor / TV |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Angle of rotation | 90° |
| Distance to the wall (max) | 5 cm |
| Product colour | Black |
| Housing material | Steel |
| Cable management | N |
| Screws included | Y |
| Quick installation guide | Y |
| Width | 607 mm |
| Depth | 46 mm |
| Height | 403.9 mm |
| Weight | 4.42 kg |
