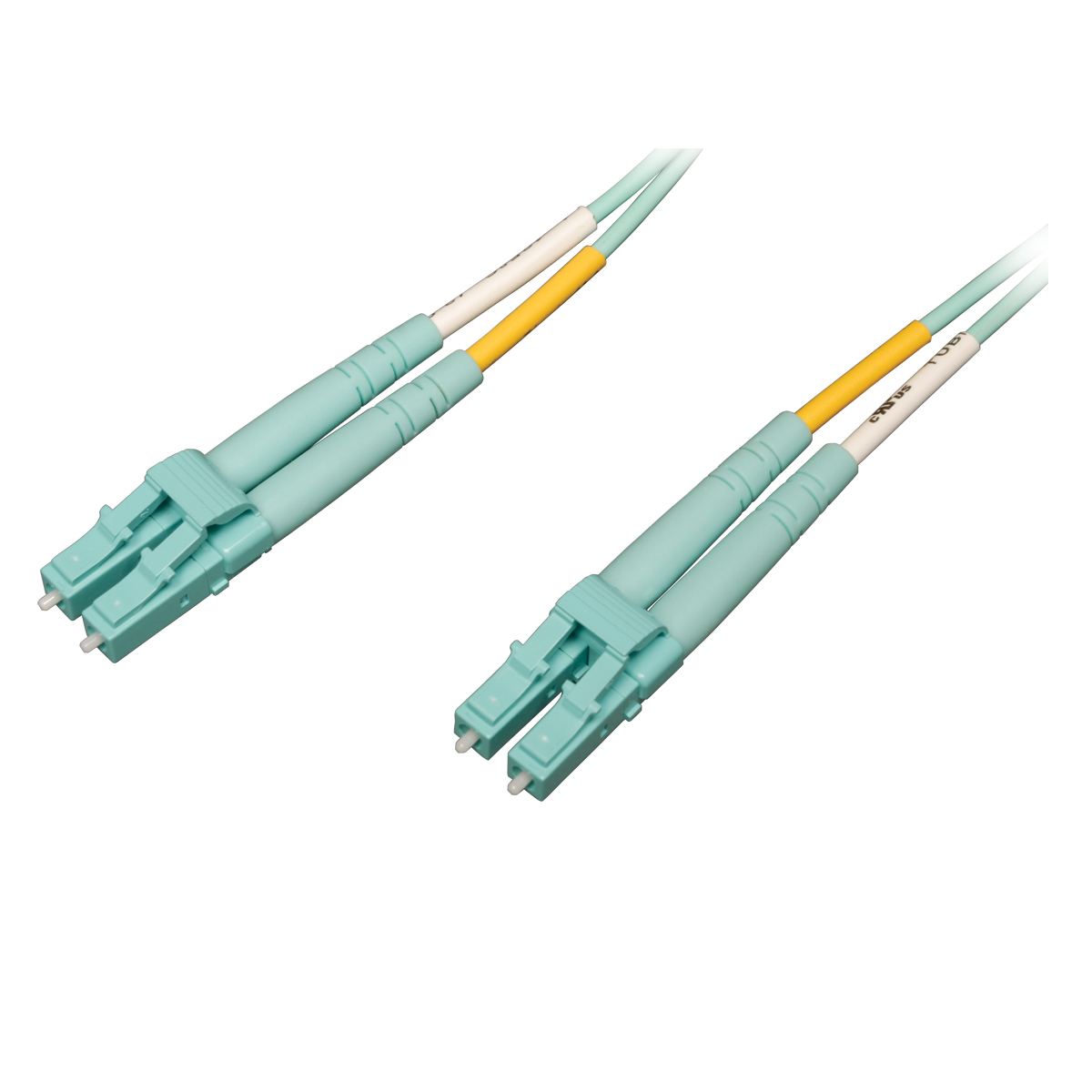

Tripp Lite 10Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC) - Aqua, 3M

SKU: N820-03M-OM4 Category:

Tripp Lite 10Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC) - Aqua, 3M


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£18.16 £15.13 Ex. VAT

Availability: 15 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Tripp Lite introduces it’s new OM4 Laser-Optimized Multimode Fiber (LOMMF) “Aqua” cables, for use with 40/100Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly ten times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 40/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN’s, SAN’s, and high-speed parallel interconnects for head-ends, central offices, and data centers.
– Designed for 40/100-Gig Ethernet applications…OM4 Rated
– Backward compatible with existing 50/125 fiber
– Max 40/100Gb distance of 300 Metres @850nm
– Low-Smoke, Zero Halogen (LSZH) Aqua jacket

– 3 Metre (10ft) Duplex Multimode 50/125 Aqua OM4 Fiber Patch Cable, LC/LC
– 3 Metre (10ft) LC/LC, OM4 Rated
– 40/100gb Ethernet speed to 300 Metres @850nm
– Use with VCSEL and LED laser light sources
– High-Speed, High-Bandwidth, Low-Cost
– Backward compatible with legacy LAN’s
– Ideal for Fibre Channel (SAN) applications
– IEEE 802.3ae and TIA LOMMF compliant

Feature Feature Value
Cable length 3 m
Cable type OFC
Connector 1 LC
Connector 2 LC
Connector gender Male connector / Male connector
Cable colour Blue
Full duplex Y
Core diameter 50 µm
Cladding diameter 125 µm
Wavelengths supported 850 nm
Data transfer rate 100 Gbit/s
RoHS compliance Y
Cable length

3 m

Full duplex


Data transfer rate

100 Gbit/s

Cable type
