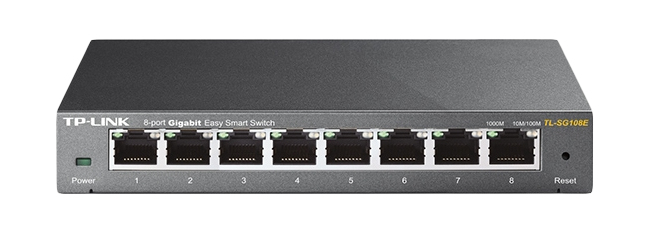

TP-LINK TL-SG108E network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

SKU: TL-SG108E Category:

TP-LINK TL-SG108E network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

RJ45 x 8, 10/100/1000 Mbps, MDI/MDIX, Jumbo Frame

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£34.76 £28.97 Ex. VAT

Availability: 16 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

TP-LINK TL-SG108E network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Manufacturer: TP-LINK
Category: Networking
Sub-Category: Network Switches
SKU: TL-SG108E
EAN: 6935364021863 6935364021856 5054242155597 5054230861295 0687681917317 8459730218568 0863190005978 5054230884201 6355052070018 0803983008342 0641125114564 0731215283208 0739197184360 0780746857761

Description

The TL-SG108E 8-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG108E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG108E can save up to 80% of power consumption, making it an eco-friendly solution for your business network.

Simple & Effective Management
TP-LINK’s Gigabit Easy Smart switch, TL-SG108E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG108E 8-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length
Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG108E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Ease of Use
TL-SG108E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Specifications

Networking
IGMP snooping Yes
Networking standards IEEE 802.1ab,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3u,IEEE 802.3x
VLAN support Yes
Rate limiting Yes
Port mirroring Yes
Number of VLANs 32
Link aggregation Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Virtual LAN features
VLAN support Yes
Number of VLANs 32
Data transmission
Number of multicast groups filtered 128
Number of VLANs 32
Throughput 11.9 Mpps
Packet buffer memory 1.5 MB
MAC address table 4000 entries
Switching capacity 16 Gbit/s
Store-and-forward Yes
Number of queues 4
Jumbo frames support Yes
Performance
Packet buffer memory 1.5 MB
Auto-negotiation Yes
Plug and Play Yes
Technical details
Product colour Black
Housing material Metal
Management features
Switch type Unmanaged
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Security
IGMP snooping Yes
Multicast features
Number of multicast groups filtered 128
Certificates
Certification FCC, CE, RoHS
Memory
Packet buffer memory 1.5 MB
Design
Product colour Black
LED indicators Yes
Housing material Metal
Certification FCC, CE, RoHS
Indication
LED indicators Yes
Power
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 90%
Weight & dimensions
Width 158 mm
Depth 101 mm
Height 25 mm
Packaging data
Quick start guide Yes
Cables included AC
Packaging content
Quick start guide Yes
Cables included AC

Brand

UNSPSC

43222612
