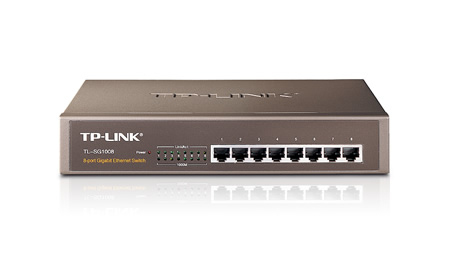

TP-LINK TL-SG1008 network switch Unmanaged

Manufacturer: | TP-LINK |
Category: | Networking |
Sub-Category: | Network Switches |
SKU: | TL-SG1008 |
EAN: | 6935364020019 9888185235506 0191120098838 3548383171308 5054242181039 6315487614188 0809186281797 0845973021573 8459730200198 0845973020019 0898029647708 0809385676646 0132018280270 5054814467257 7432349143163 0807030506072 0731215286490 0803982835352 6935364021573 |
Description
The TL-SG1008 is a high performance Smart Gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 8 10/100/1000BASE-T Gigabit Ethernet ports with AUTO-MDIX provides full bandwidth (Maximum 2000Mbps in full duplex mode). Easy-to-view LED indicators are supported for cable installation and normal operational diagnostics. The switch can be used a desktop or in a rack-mount.
Specifications
Ports & interfaces | |
---|---|
Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Weight & dimensions | |
Dimensions (W x D x H) (imperial) | 248.9 x 157.5 x 43.2 mm (9.8 x 6.2 x 1.7″) |
Power | |
Input voltage | 100 – 240 V |
Management features | |
Switch type | Unmanaged |
Networking | |
Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
Full duplex | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Data transmission | |
MAC address table | 8000 entries |
Supported data transfer rates | 10/100/1000 Mbps |
Store-and-forward | Yes |
Maximum data transfer rate | 1 Gbit/s |
Protocols | |
Supported network protocols | CSMA/CD, TCP/IP |
Certificates | |
Certification | FCC, CE, RoHS |
Design | |
Certification | FCC, CE, RoHS |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 – 70 °C |
Storage relative humidity (H-H) | 5 – 90% |
Operating temperature (T-T) | 32 – 104 °F |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 10 – 90% |
Other features | |
Dimensions (WxDxH) | 294 x 180 x 44 mm |
Connectivity technology | Wired |
Bandwidth | 16 Gbit/s |
Networking features | Gigabit Ethernet |
Input voltage | 100 – 240 V |
Input frequency | 50 – 60 Hz |
Connectivity LEDs | Yes |
Dimensions (W x D x H) (imperial) | 248.9 x 157.5 x 43.2 mm (9.8 x 6.2 x 1.7″) |
