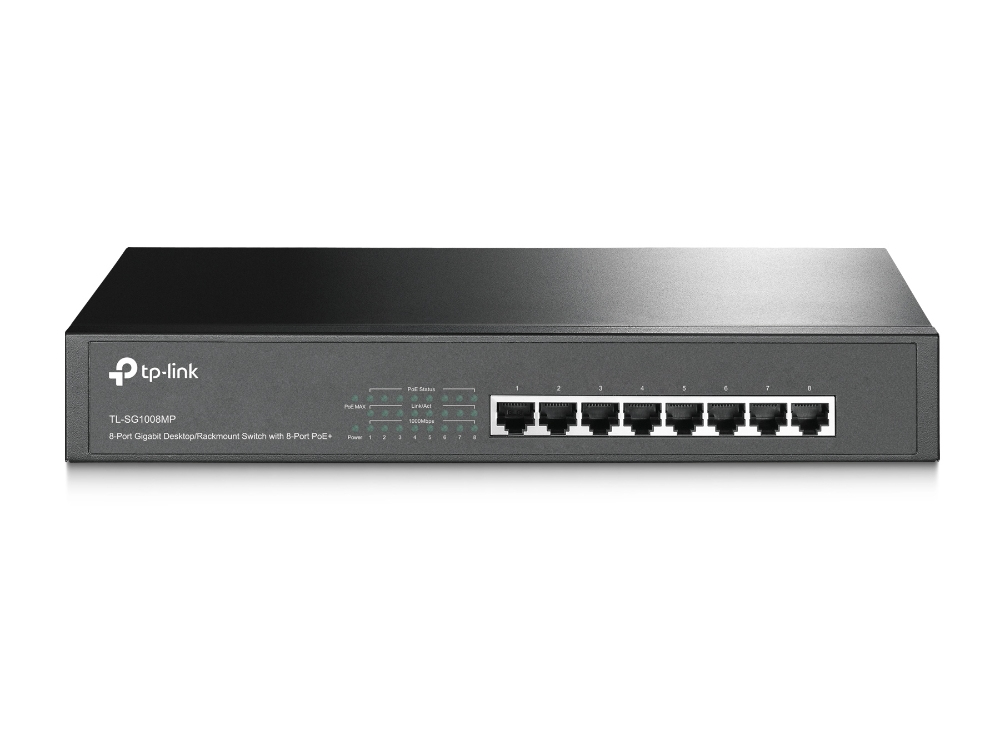

TP-LINK 8 Port Gigabit PoE Switch Unmanaged Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)

SKU: TL-SG1008MP Category:

TP-LINK 8 Port Gigabit PoE Switch Unmanaged Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)

8x 10/100/1000 Mb/s RJ-45, PoE+, 16 Gb/s, Rack Mountable

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£98.72 £82.27 Ex. VAT

Availability: 320 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

TP-LINK 8 Port Gigabit PoE Switch Unmanaged Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)

Manufacturer: TP-LINK
Category: Networking
Sub-Category: Network Switches
SKU: TL-SG1008MP
EAN: 6935364085254 6935364086770 0840030700057

Description

What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

– 8 10/100/1000Mbps RJ45 ports
– Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
– Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
– Innovative energy-efficient technology reduces power consumption
– Rack mountable with included rack mount bracket
– Total PoE power budget up to 126W
– Plug and play design, no configuration required

Specifications

Performance
Auto-negotiation Yes
Technical details
Product colour Black
Rack mounting Yes
Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Networking
Networking standards IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Data transmission
MAC address table 4000 entries
Switching capacity 16 Gbit/s
Certificates
Certification FCC, RoHS
Design
Product colour Black
Certification FCC, RoHS
Rack mounting Yes
Number of fans 1 fan(s)
Power
Power consumption (max) 144.4 W
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (typical) 140.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 90%
Heat dissipation 492.6 BTU/h
Weight & dimensions
Width 294 mm
Depth 180 mm
Height 44 mm
Packaging data
Rack mount kit Yes
User guide Yes
Packaging content
Rack mount kit Yes
User guide Yes

Brand

UNSPSC

43222612
