TP-LINK 10/100Mbps Single-mode Media Converter network media converter 1310 nm
Manufacturer: | TP-LINK |
Category: | Networking |
Sub-Category: | Network Media Converters |
SKU: | MC110CS |
EAN: | 6935364030407 0809186265032 0845973030407 0112840374064 0791445498292 0230494832980 8459730304070 0807030489559 0988808262212 0191120078380 5054484135302 5054533135307 5054629099797 0851975726729 0806293522812 0803983008137 0132018507209 0809385660010 0731215282034 0115971160506 |
Description
– Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
– Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
– Extends fiber distance up to 20-60km

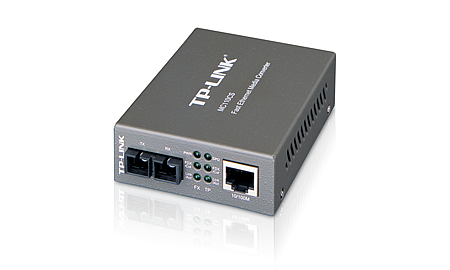

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’’ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Specifications
Technical details | |
---|---|
Wavelength | 1310 nm |
Maximum transfer distance | 20000 m |
I/O ports | 1x 100M SC 1x 100M RJ45 |
Weight & dimensions | |
Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
Networking | |
Cabling technology | UTP 3, 4, 5e, 5 |
Ports & interfaces | |
Connectivity technology | Wired |
Performance | |
Wavelength | 1310 nm |
Maximum transfer distance | 20000 m |
Design | |
Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Certification | FCC, CE |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 10 – 90% |
Storage relative humidity (H-H) | 5 – 90% |
Certificates | |
Certification | FCC, CE |
Other features | |
Cabling technology | UTP 3, 4, 5e, 5 |
Full duplex | Yes |
Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
I/O ports | 1x 100M SC 1x 100M RJ45 |
