Supermicro 1028U-TR4+ Intel® C612 LGA 2011 (Socket R) Rack (1U) Black

SKU: SYS-1028U-TR4+ Category:

Supermicro 1028U-TR4+ Intel® C612 LGA 2011 (Socket R) Rack (1U) Black

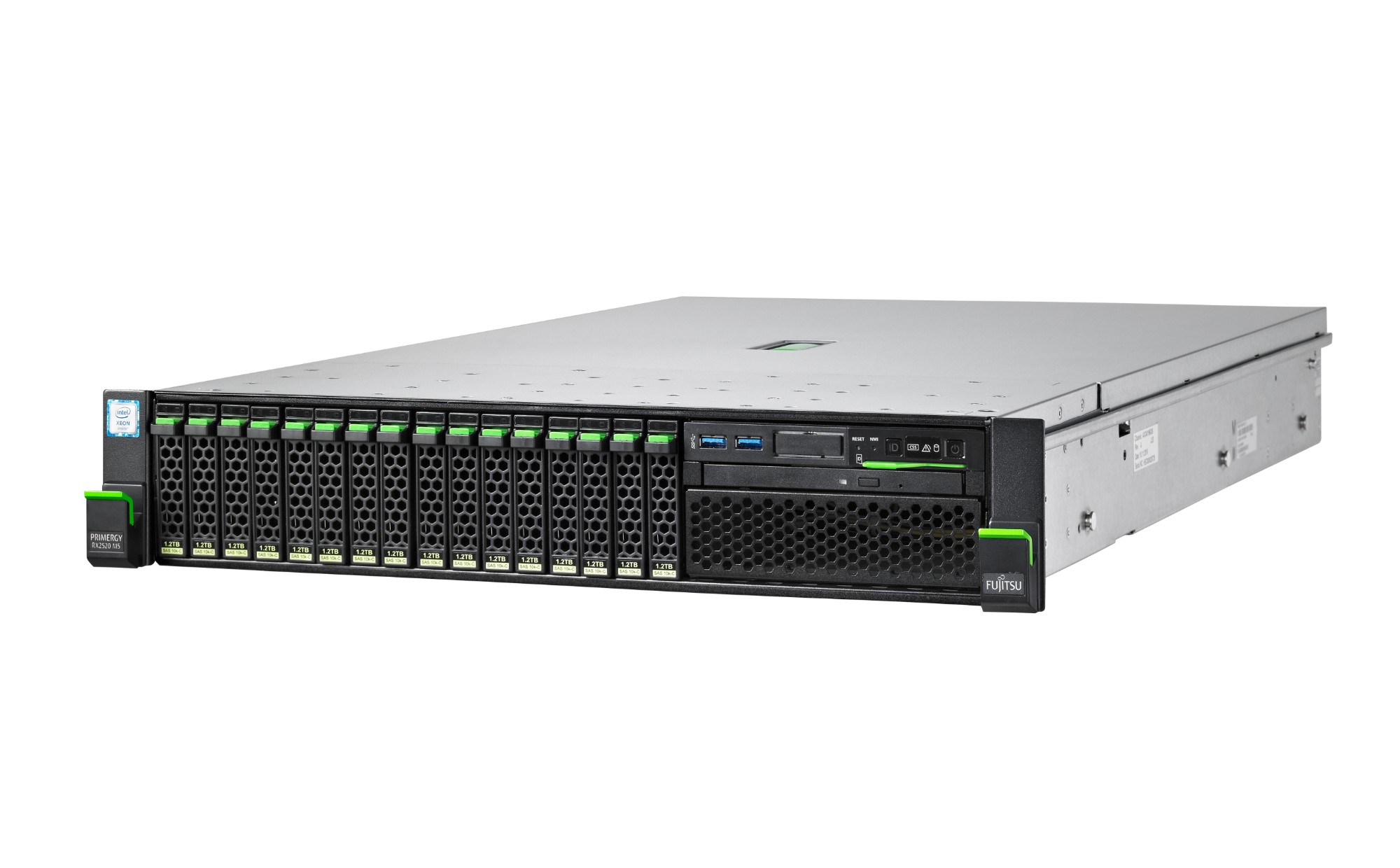

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£1,756.58 £1,463.82 Ex. VAT

Free UK Shipping Available*

Availability: 6 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

– Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
– Up to 1.5TB ECC, up to DDR4 2133MHz; 24x DIMM slots
– 2x PCI-E 3.0 x16 slots (FH, 10.5″ L), 2x PCI-E 3.0 x8 slots (LP, 1 internal)
– 4x Gigabit Ethernet ports
– 10x Hot-swap 2.5″ Drive Bays: 10x SATA3 ports by default; optional 8x SAS3 ports
– 4x heavy duty fans w/ optimalfan speed control
– 750W Redundant Power Supplies Platinum Level (94%+)


Feature Feature Value
Motherboard chipset Intel® C612
Processor socket LGA 2011 (Socket R)
Number of processors supported 2
Processor family Intel
System bus rate 9.6 GT/s
System bus type QuickPath Interconnect (QPI)
Maximum cache 45 MB
Compatible processor series Intel® Xeon®
Intel Xeon series E5-2600
Number of DIMM slots 24
Supported memory types DDR4-SDRAM
Supported DIMM module capacities 4GB,8GB,16GB,32GB,64GB
Maximum internal memory 1500 GB
Maximum RDIMM memory 1500 GB
Supported RDIMM clock speeds 1600,1866,2133 MHz
Memory form factor 288-pin DIMM
Memory voltage 1.2 V
Memory bus 72 bit
ECC Y
Number of storage drives supported 10
Hot-swap HDD bays Y
Storage drive sizes supported 2.5″
Supported storage drive interfaces Serial ATA III
RAID levels 0,1,5,10
On-board graphics adapter model Aspeed AST2400
Ethernet LAN Y
Ethernet interface type Fast Ethernet,Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Copper ethernet cabling technology 10GBASE-T
LAN controller Intel® I350, Realtek RTL8211E
Ethernet LAN (RJ-45) ports 2
USB 3.0 (3.1 Gen 1) Type-A ports quantity 5
IPMI LAN (RJ-45) port Y
VGA (D-Sub) ports quantity 1
Serial ports quantity 1
Number of SATA III connectors 10
PCI Express slots version 3.0
PCI Express x8 slots 2
PCI Express x16 slots 2
PC health monitoring FAN,LED,Temperature,Voltage
Integrated BMC with IPMI Y
Intelligent Platform Management Interface (IPMI) support Y
BIOS type AMI
BIOS memory size 16 Mbit
ACPI version 4.0
BIOS features APM 1.2,Plug & Play,UEFI
Chassis type Rack (1U)
Product colour Black
LED indicators Fan fail,HDD,Network,Power
On/off switch Y
Rack-Friendly board Y
Number of fans 4 fan(s)
RoHS compliance Y
Certification 80 PLUS Platinum
Power supply 750 W
Redundant power supply (RPS) support Y
Number of redundant power supplies installed 1
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
DC output current (+12 V) 62.5 A
Operating temperature (T-T) 5 – 40 °C
Storage temperature (T-T) -40 – 60 °C
Operating relative humidity (H-H) 8 – 90%
Storage relative humidity (H-H) 5 – 95%
Width 437 mm
Depth 707 mm
Height 43 mm
Weight 11.8 kg
Keyboard included Y
