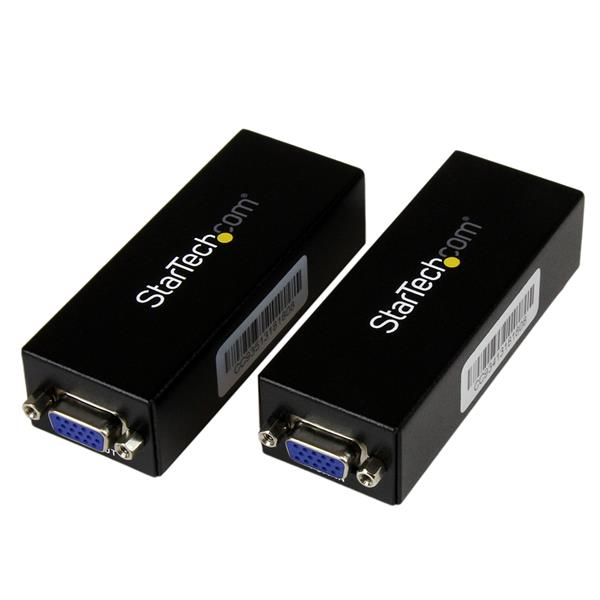

The ST121UTPEP VGA Video Extender over Cat5 – Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.
– Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment
– Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation
|Type||AV transmitter & receiver|
|Maximum resolution||1920 x 1200 pixels|
|Cable types supported||Cat5|
|Maximum transfer distance||80 m|
|Supported graphics resolutions||1280 x 1024 (SXGA),1600 x 1200 (UXGA),1920 x 1200 (WUXGA)|
|Plug and Play||Y|
|RJ-45 input ports||1|
|RJ-45 output ports||1|
|VGA (D-Sub) input ports||1|
|VGA (D-Sub) output ports||1|
|Operating voltage||12 V|
|Output current||0.6 A|
|Power consumption (typical)||7.2 W|
|External power adapter||Y|
|Receiver dimensions (W x D x H)||138 x 100 x 25 mm|
|Receiver weight||36 g|
|Transmitter dimensions (WxDxH)||138 x 100 x 25 mm|
|Transmitter weight||36 g|
|Package dimensions (WxDxH)||60 x 320 x 145 mm|
|Package weight||1.2 kg|
|Mounting brackets included||Y|
