USB to RS232 DB9/DB25 Serial Adapter Cable - M/M

SKU: ICUSB232DB25 Category: USB to RS232 DB9/DB25 Serial Adapter Cable - M/M


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£14.58 £12.15 Ex. VAT

Availability: 421 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

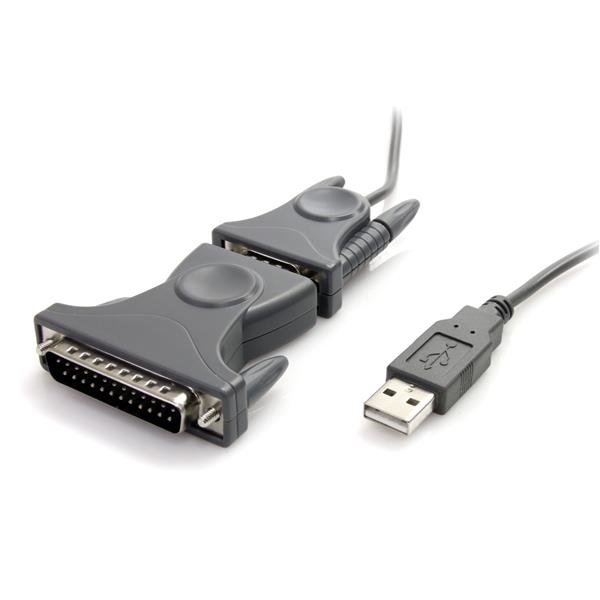

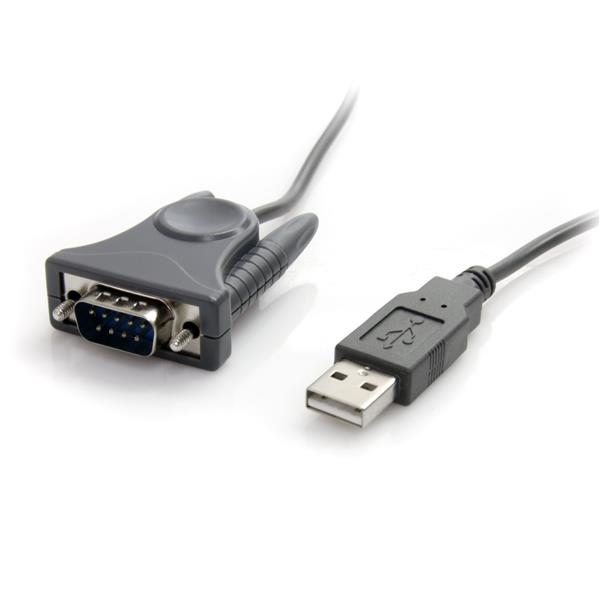

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.

A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.

Backed by a 2-year warranty and free lifetime technical support.

The Advantage
– This versatile device ships with a 9-pin connector, and a 25-pin RS232 adapter for a variety of connection options
– Integrated 3ft cable allows you to connect directly to your serial devices
– Plug-and-Play/Hot-swap support enables you to add and remove this adapter without having to reboot the computer

Feature Feature Value
Connector 1 USB 2.0
Connector 2 DB-25 + DB-9
Connector gender Male connector / Male connector
Cable length 0.9 m
Product colour Grey
Housing material Plastic
Chipset Prolific – PL-2303
Data bits 4,5,6,7,8
Stop bits 1,1.5,2
Flow Control type N,XON/XOFF
Baud rate 230.4 Kbit/s
Parity bit Even,Mark,N,Odd,Space
FIFO (First In, First Out) 512 B
Compatible operating systems – Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10n- Windows Server 2003, 2008 R2, 2012, 2016, 2019n- Mac OS X 10.6 – 10.14n- Linux 2.4.x to 4.11.x LTS
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -40 – 85 °C
Relative humidity 5 – 85%
Weight 70 g
Package width 37.5 mm
Package depth 175 mm
Package height 137.5 mm
Package weight 90 g
Manual Y
Drivers included Y

Prolific – PL-2303

Cable length

0.9 m

Flow Control type



70 g
