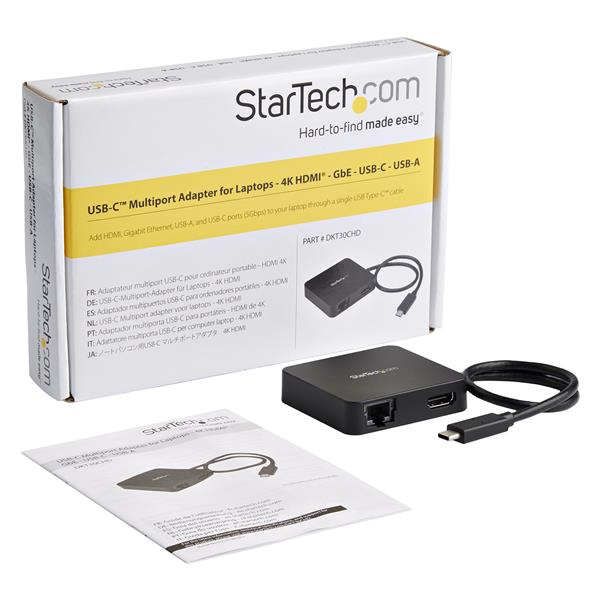

Portable Docking Station | Windows & Mac | 4K | GbE | TAA Compliant

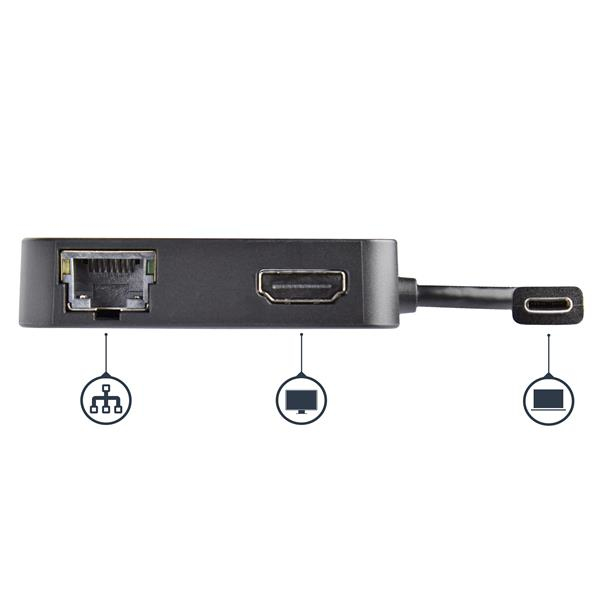

This USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters, a USB-C video adapter, USB-C to USB 3.0 adapter, and Gigabit Ethernet adapter, into a portable docking station for your laptop. You can connect a 4K HDMI display and two USB 3.0 devices (1x USB-A, 1x USB-C), and get high-speed network access, all through a single cable.
The USB Type-C adapter is compatible with Thunderbolt 3 ports.
Add a 4K UHD Monitor
With HDMI output, this USB-C multiport adapter makes it easy to expand your virtual workspace onto an external 4K HDMI monitor. The adapter supports resolutions up to 4096 x 2160p (24Hz) or 3840 x 2160p (30Hz), as well as audio.
Reliable Network Access
The USB-C multiport adapter ensures a reliable wired network connection with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi access such as in classrooms, office buildings and hotels.
Connect Your USB Devices Easily
With two USB 3.0 ports (1x USB-A, 1x USB-C) you get access to traditional USB Type-A devices, as well as newer USB-C devices you add in the future.
Bring Productivity with You Wherever You Go
With its compact design and bus-powered performance, the portable multiport adapter is easy to take with you anywhere you take your laptop. The adapter features a pre-attached USB-C cable, so you have one less cable to carry when you’re on the move.
The StarTech.com Advantage for Docking Stations
Maximum compatibility – StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
Get more done faster – More ports and more displays maximize end user connectivity and productivity
Quick installation – eliminate deployment headaches that waste time and frustrate end users
IT Grade quality – trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support
The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery.
The StarTech.com Advantage
– Add 4K HDMI, USB-A, USB-C and Gigabit Ethernet to your Thunderbolt 3 compatible Windows or MacBook laptop
– Easily connect an external 4K Ultra HD display (4096 x 2160p @ 24Hz or 3860 x 2160p @ 30Hz)
– Connect peripheral devices to the USB-A port (backward compatible with USB 2.0 and 1.x) and USB-C port
|Host interface||USB 3.0 (3.1 Gen 1) Type-C|
|USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity||1|
|HDMI ports quantity||1|
|USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity||1|
|Ethernet LAN (RJ-45) ports||1|
|Ethernet LAN data rates||10,100,1000 Mbit/s|
|Copper ethernet cabling technology||10BASE-T,100BASE-TX,1000BASE-T|
|Networking standards||IEEE 802.3,IEEE 802.3ab,IEEE 802.3u|
|Card reader integrated||N|
|Data transfer rate||5 Gbit/s|
|Maximum digital resolution||4096 x 2160 pixels|
|Certification||CE, FCC, TAA, REACH|
|Power source type||USB|
|Windows operating systems supported||Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64|
|Mac operating systems supported||Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave|
|Other operating systems supported||Chrome|
|Package width||145 mm|
|Package depth||210 mm|
|Package height||40 mm|
|Package weight||200 g|
|Quick start guide||Y|
|Operating temperature (T-T)||0 – 60 °C|
|Storage temperature (T-T)||-20 – 60 °C|
|Operating relative humidity (H-H)||5 – 90%|
|Cable length||0.34 m|
|Chipset||Genesys Logic – GL3523, Realtek – RTL8153, Parade – PS176|
