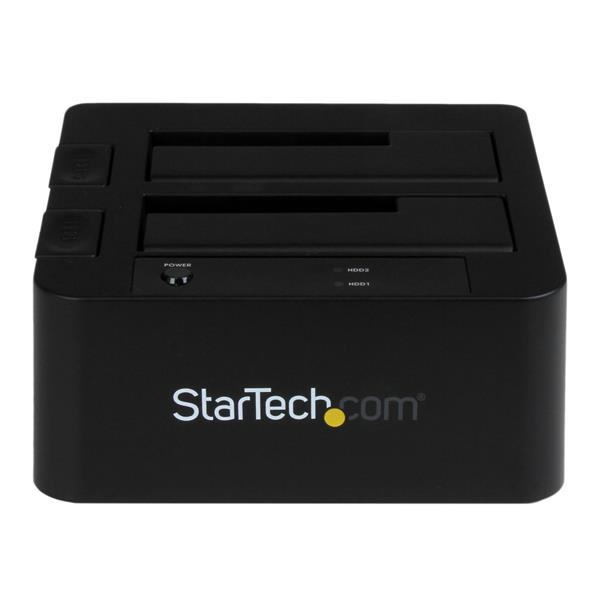

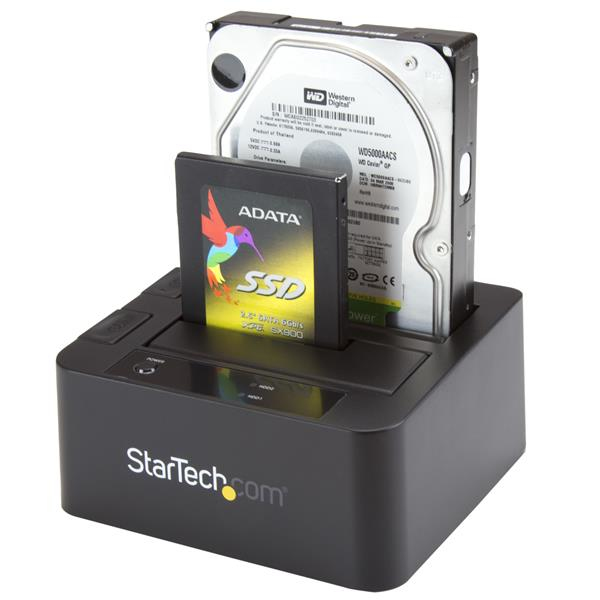

The SDOCK2U33EB Dual 2.5/3.5″ SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.
For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds — up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
– Versatile connectivity options, through either USB or eSATA
– Maximize performance, with file transfer speeds up to 6Gbps using eSATA
– Save time, with file transfers up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
|Storage media type||HDD,SSD|
|Storage drive interface||Serial ATA III|
|Storage drive sizes supported||2.5,3.5″|
|Number of storage drives supported||2|
|Maximum storage capacity||8 TB|
|Host interface||USB 3.0 (3.1 Gen 1) Type-B|
|USB 3.0 (3.1 Gen 1) ports quantity||1|
|eSATA ports quantity||1|
|Maximum data transfer rate||6 Gbit/s|
|Chipset||JMicron – JMS562|
|AC input voltage||100-240 V|
|Input current||1.5 A|
|Output voltage||12 V|
|Output current||3 A|
|Power plug type||Type M|
|Windows operating systems supported||Windows 2000,Windows 8,Windows 8.1,Windows Vista Home Basic,Windows XP Home|
|Linux operating systems supported||Y|
|Mac operating systems supported||Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks|
|AC adapter included||Y|
|Included power plug types||EU,NA,UK|
|Operating temperature (T-T)||5 – 35 °C|
|Storage temperature (T-T)||-20 – 50 °C|
|Operating relative humidity (H-H)||20 – 80%|
|Standard interfaces||eSATA,USB 3.0|
|Package dimensions (WxDxH)||120 x 185 x 210 mm|
|Package width||120 mm|
|Package height||210 mm|
|Package weight||1 kg|
