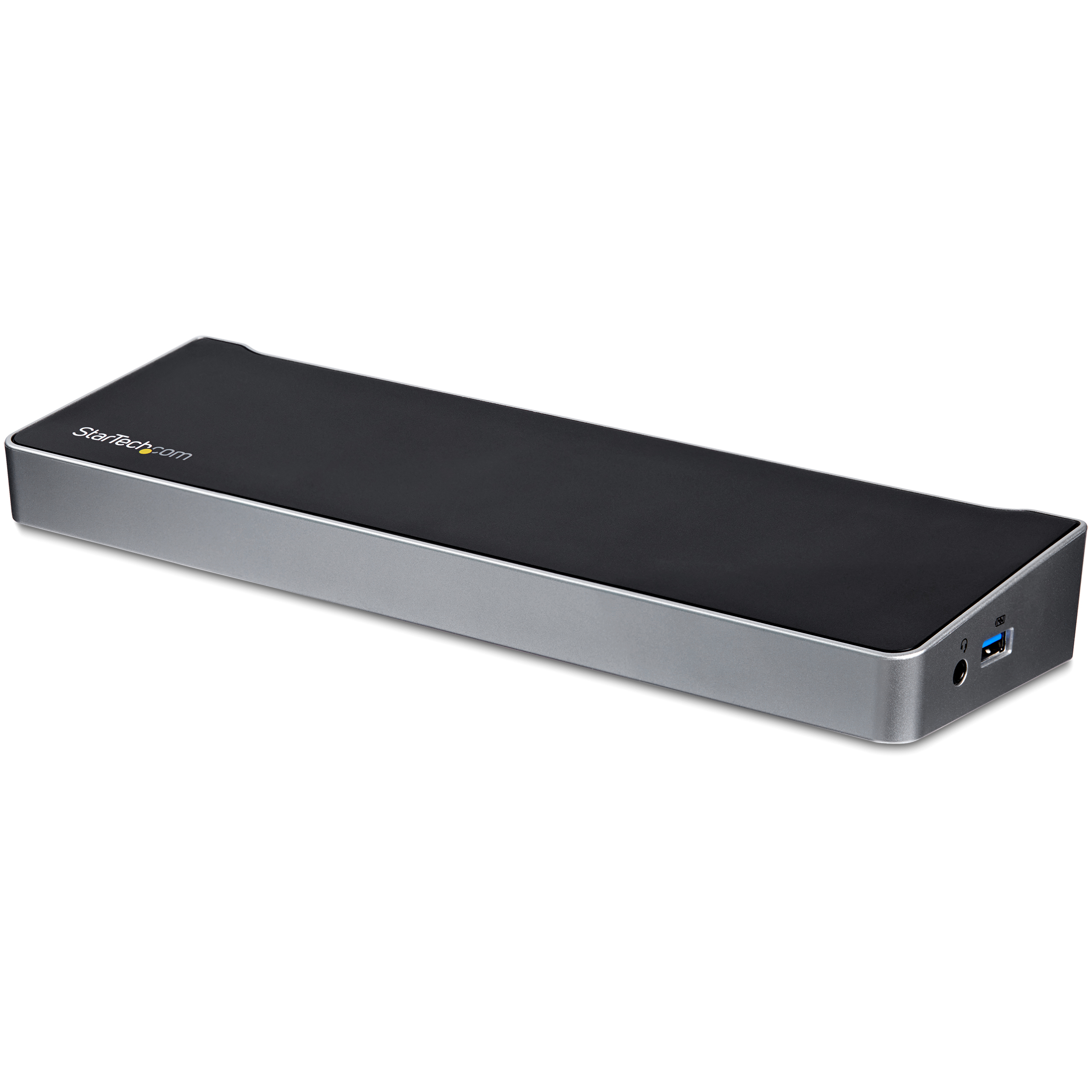

StarTech.com Triple-Monitor USB 3.0 Docking Station - 1x HDMI - 2x DisplayPort

Transparent IT Expo — Wednesday 1st March 2023

SKU: USB3DOCKH2DP Category:

StarTech.com Triple-Monitor USB 3.0 Docking Station - 1x HDMI - 2x DisplayPort

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£281.96 £234.97 Ex. VAT

Free UK Shipping Available*

Availability: 147 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Port Replicator | Mac & Windows | 4K DP | 5 USB ports | TAA Compliant

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048×1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

Powerful Connections and Fast Device Charging

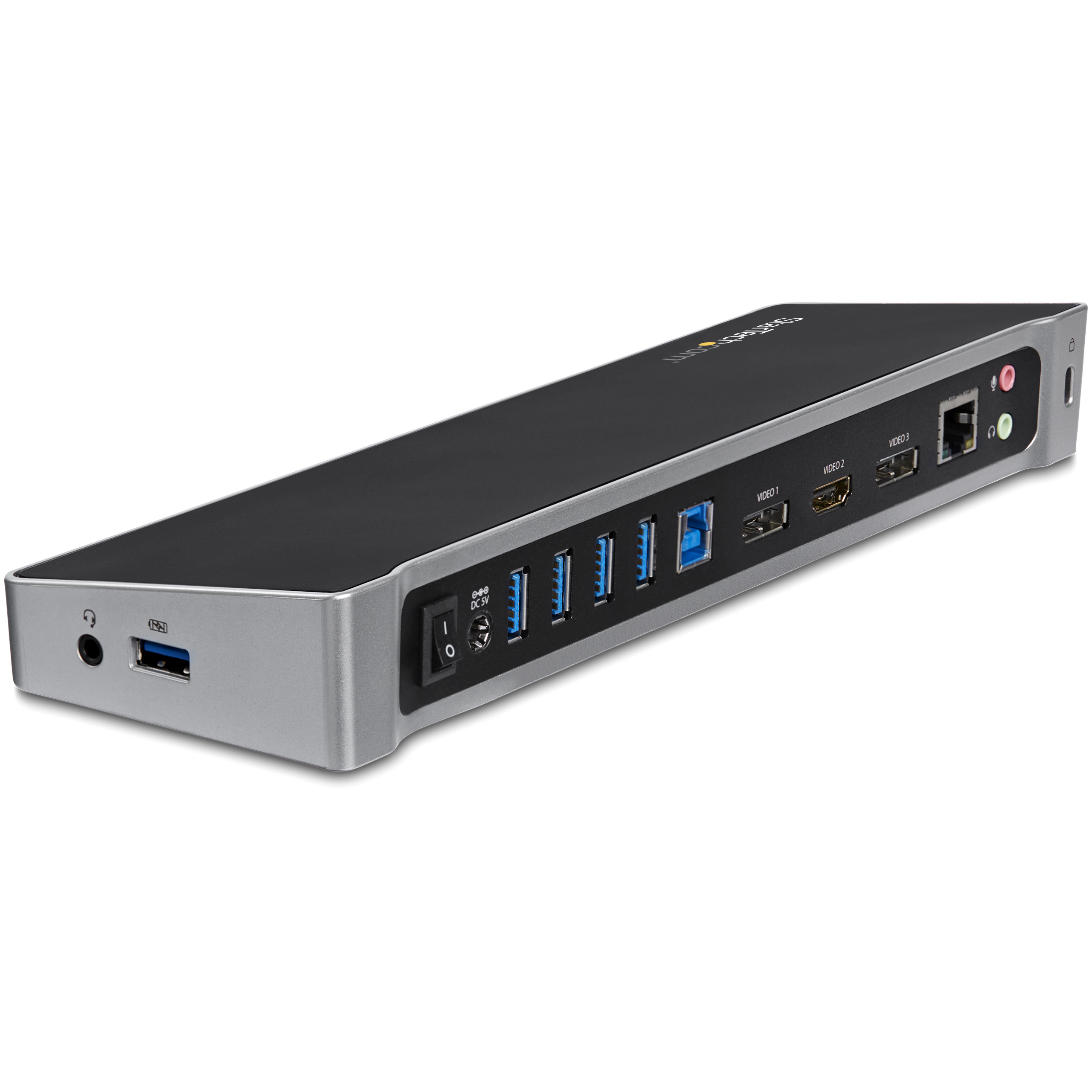

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

– Maximize your display capabilities with triple monitors (1 x HDMI and 2 x DP) or a dual-monitor setup
– Achieve a high resolution with up to 3840x2160p (4K) on one of the displays
– Connect your USB devices with 5 x USB 3.0 ports


Feature Feature Value
Connectivity technology Wired
Host interface USB 3.0 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
HDMI ports quantity 1
Microphone in Y
Headphone outputs 2
DisplayPorts quantity 2
Combo headphone/mic port Y
Headphone connectivity 3.5 mm
USB connector type USB Type-A
DC-in jack Y
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Wake-on-LAN ready Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X Y
Full duplex Y
Product colour Black,Silver
Card reader integrated N
Data transfer rate 5 Gbit/s
Maximum digital resolution 3840 x 2160 pixels
Cable lock slot Y
LED indicators Activity,Link
UASP support Y
Housing material Plastic
Brand compatibility Universal
RoHS compliance Y
Certification CE, FCC, DisplayLink, TAA, REACH
AC input voltage 100-240 V
Input current 1.5 A
Output voltage 5 V
Output current 6.5 A
Power consumption (typical) 32.5 W
Power plug type Type N
Compatible power plug types AU,EU,UK,US
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibility Y
Mac operating systems supported Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
Other operating systems supported Chrome
Width 82 mm
Depth 270 mm
Height 34 mm
Weight 376 g
Package width 296 mm
Package depth 164 mm
Package height 71 mm
Package weight 1 kg
Cables included USB
AC adapter included Y
Manual Y
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -10 – 80 °C
Operating relative humidity (H-H) 0 – 90%
Chipset DisplayLink – DL-5910, VLI – VL812
Number of microphone inputs 1
USB data transfer rates 5000 Mbit/s
Wake-on-LAN ready

Y

Data transfer rate

5 Gbit/s

Microphone in

Y

Chipset

DisplayLink – DL-5910, VLI – VL812

DisplayPorts quantity

2

Headphone connectivity

3.5 mm

Width

82 mm

Ethernet LAN (RJ-45) ports

1

Brand compatibility

Universal

Weight

376 g

Mac compatibility

Y

Maximum digital resolution

3840 x 2160 pixels

Host interface

USB 3.0 (3.1 Gen 1) Type-A

Card reader integrated

N

Full duplex

Y

HDMI ports quantity

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN

Y

USB connector type

USB Type-A

Headphone outputs

2

Number of microphone inputs

1
