SKU: SDI2HD Category: SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output

* Images are for illustrative purposes only.

£191.60 £159.67 Ex. VAT

Free UK Shipping Available*

Availability: 8 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Connect your HDMI Display to an SDI Video Source

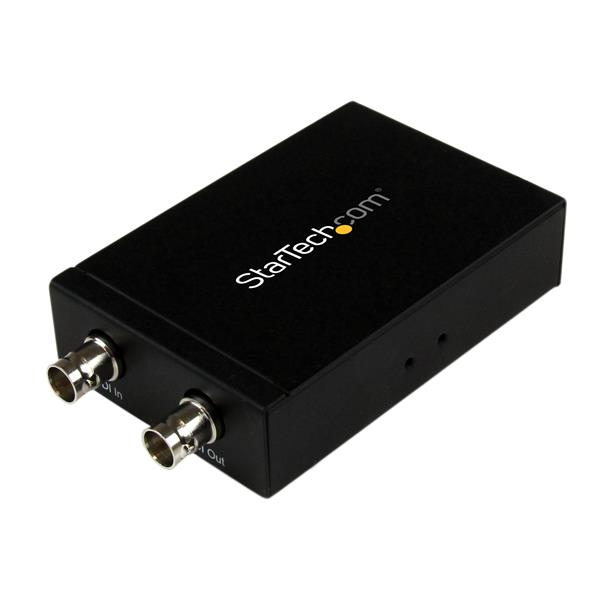

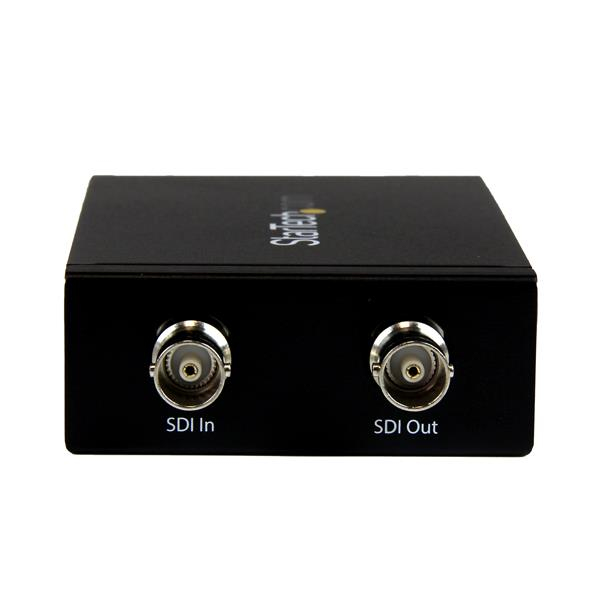

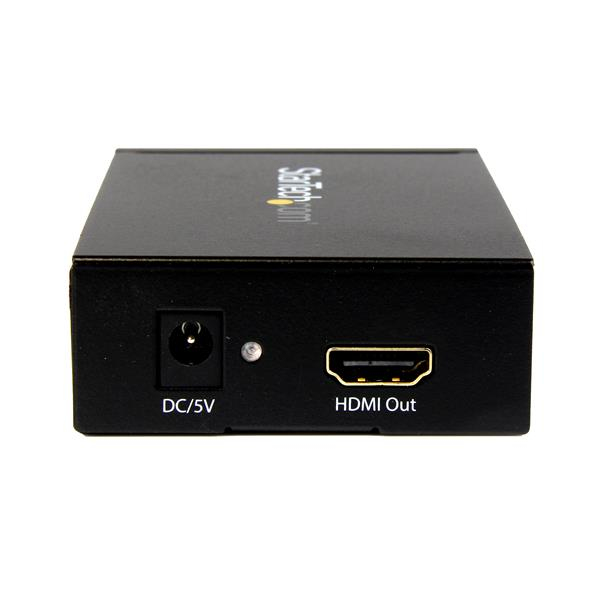

The SDI2HD 3G SDI to HDMI converter enables you to turn a 3G SDI video signal into an HDMI video output. The adapter features a built-in 3G SDI daisy chain port, giving you the ability to further extend the SDI source to up to 755ft (230m) over standard coaxial cable, for large scale HD-SDI video broadcasting distribution.

To ensure you maintain perfect high-definition video quality the SDI-HDMI converter features supports resolutions up to 1080p, allowing you to convert SDI to HDMI without sacrificing video quality.

For hassle-free installation, the SDI to HDMI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation.

The SDI2HD is backed by a 2-year warranty and free lifetime technical support.

The Advantage

– Increase scalability, with built-in 3G SDI daisy chain port
– Maintain High-definition video quality while converting from 3G SDI to HDMI, with support for resolutions up to 1080p
– Hassle-free installation, with pre-installed mounting brackets and no software or drivers required

Feature Feature Value
Connector 1 HDMI
Connector 2 2xSDI(BNC)
Product colour Black
Data transfer rate 1.485 Gbit/s
Maximum resolution 1920 x 1080 pixels
RoHS compliance Y
Input voltage 100 – 240 V
Output voltage 5 V
Output current 2000 mA
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -10 – 60 °C
Relative humidity 5 – 90%
Width 100 mm
Depth 70 mm
Height 25 mm
Weight 202 g
Package width 137 mm
Package depth 180 mm
Package height 80 mm
Package weight 600 g
Quantity per pack 1 pc(s)
AC adapter included Y

100 mm

Maximum resolution

1920 x 1080 pixels

Data transfer rate

1.485 Gbit/s


202 g
