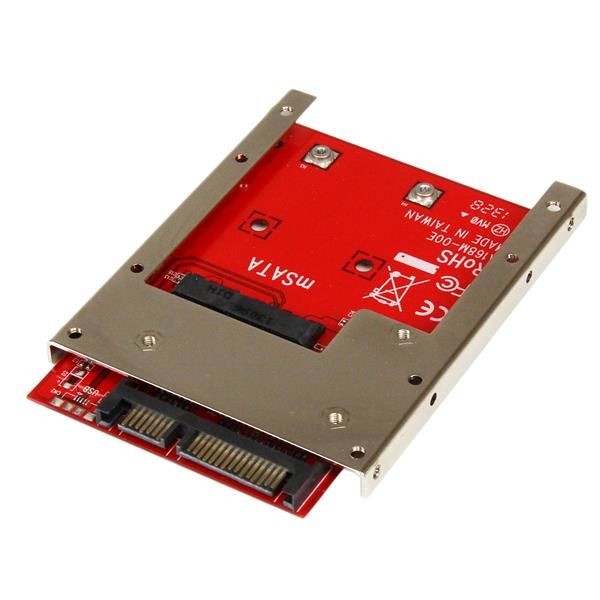

mSATA SSD to 2.5in SATA Adapter Converter

Transparent IT Expo — Wednesday 1st March 2023

SKU: SAT32MSAT257 Category: mSATA SSD to 2.5in SATA Adapter Converter

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£21.74 £18.12 Ex. VAT

Availability: 10 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5″ SATA application, with the SAT32MSAT257 mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

Help protect the health of your drive with an open frame design ensuring maximum heat dissipation.

The SAT32MSAT257 is backed by a 2-year warranty, and lifetime technical support.

The Advantage
– Maximize system speed by adding SSD performance
– Help prevent your drive from failure, with open frame aluminum housing providing excellent heat dissipation
– Reduce overall power consumption, with a high efficiency mSATA SSD

Feature Feature Value
Host interface SATA
Output interface mSATA
SATA revision 3.0
Internal Y
Product colour Black,Red,Silver
RoHS compliance Y
Certification CE, FCC
Data transfer rate (max) 6 Gbit/s
Operating temperature (T-T) -40 – 85 °C
Windows operating systems supported Y
Mac operating systems supported Y
Linux operating systems supported Y
Width 70 mm
Depth 100 mm
Height 7 mm
Weight 48 g
Mounting brackets included Y
Manual Y
Package width 170 mm
Package depth 142 mm
Package height 30 mm
Package weight 114 g
Host interface



70 mm

Mounting brackets included


Data transfer rate (max)

6 Gbit/s


48 g
