StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX

SKU: SFPSXMM Category:

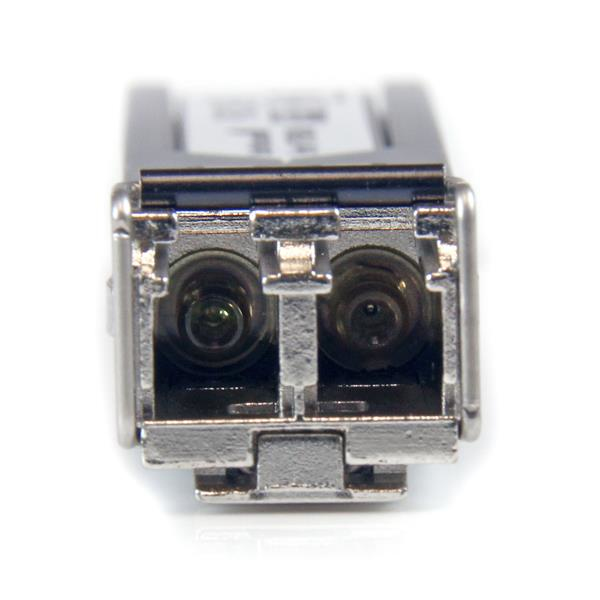

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£44.04 £36.70 Ex. VAT

Availability: 14 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | TAA | Lifetime Warranty

The SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 850 nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 550 m (1804 ft)

MTBF: 78,286 hours

Power Consumption: Less than 1 Watt

DDM: No

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

– StarTech.com SFP modules are backed by a lifetime warranty
– Delivers reliable 1 GbE connections for 1000BASE-SX compliant networks
– Hot-swappable with fiber-optic modules


Feature Feature Value
SFP transceiver type Fiber optic
Maximum data transfer rate 1250 Mbit/s
Interface type SFP
Multi-mode fiber (MMF) supported Y
Fiber optic connector LC
SFP transceiver standard SX
Maximum transfer distance 550 m
Wavelength 850 nm
Networking standards IEEE 802.3z
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Product colour Silver
Mean time between failures (MTBF) 78286 h
RoHS compliance Y
Certification CE, FCC, UL, TAA
Power consumption (typical) 1 W
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 13 mm
Depth 55 mm
Height 9 mm
Weight 18 g
Number of products included 1 pc(s)
Package width 25 mm
Package depth 115 mm
Package height 65 mm
Package weight 40 g
Dimensions (WxDxH) 13 x 55 x 9 mm
Interface type

SFP+

Fiber optic connector

LC

Maximum transfer distance

550 m

Weight

18 g

Maximum data transfer rate

1250 Mbit/s

Duplex system

Full

Width

13 mm

Number of products included

1 pc(s)
