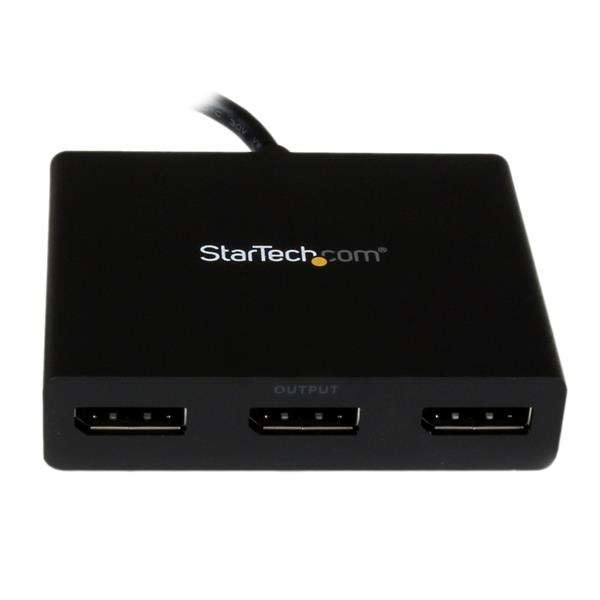

StarTech.com Mini DisplayPort to DisplayPort Multi-Monitor Splitter - 3-Port MST Hub

SKU: MSTMDP123DP Category:

StarTech.com Mini DisplayPort to DisplayPort Multi-Monitor Splitter - 3-Port MST Hub

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£86.15 £71.79 Ex. VAT

Availability: 4 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Use this adapter to connect three independent displays to a single mDP 1.2 port

This MST hub lets you connect three DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows device that supports DisplayPort 1.2, such as models of the Lenovo Think Pad and Microsoft Surface. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.

Increase your productivity with multiple monitors

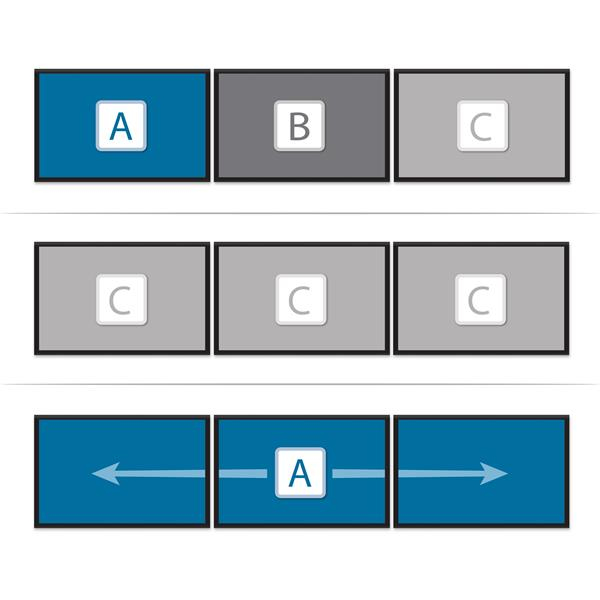

The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity – perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

Works with any monitor, television or projector

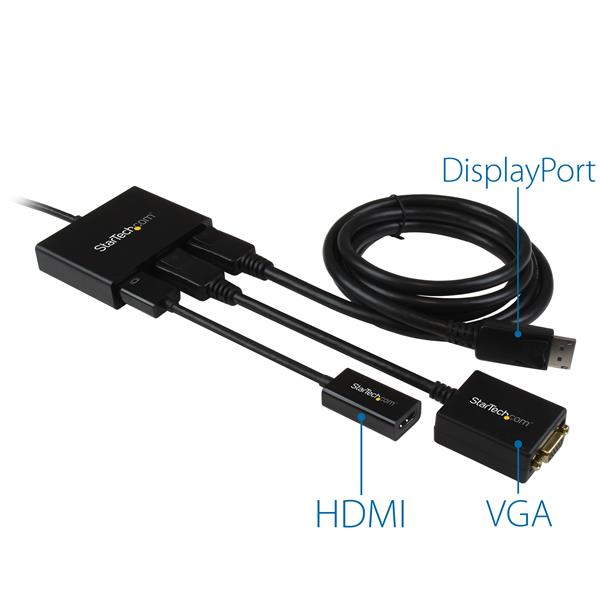

With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

The MSTMDP123DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

– Maximize your productivity by simultaneously multitasking on three different displays
– Get astonishing picture quality with support for resolutions up to 4K at 60Hz
– Output video to virtually any display with support for low-cost DVI, HDMI or VGA video adapters


Feature Feature Value
Video ports quantity 3
Video port type Mini DisplayPort
Video out 3x DisplayPort
Maximum resolution 3840 x 2160 pixels
Product colour Black
Housing material Plastic
Supported graphics resolutions 1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160
Plug and Play Y
RoHS compliance Y
Certification CE, FCC, RoHS
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Input voltage 110 – 240 V
Input current 0.5 A
Output voltage 5 V
Output current 3 A
Power consumption (typical) 15 W
Width 78 mm
Depth 386 mm
Height 20 mm
Weight 87 g
Package width 228 mm
Package depth 155 mm
Package height 55 mm
Package weight 407 g
Manual Y
AC adapter included Y
Included power plug types AU,EU,NA,UK
Operating temperature (T-T) 0 – 45 °C
Storage temperature (T-T) -20 – 70 °C
Video ports quantity

3

Width

78 mm

Video port type

Mini DisplayPort

Maximum resolution

3840 x 2160 pixels

Weight

87 g
