Connect a Mini DisplayPort 1.2-equipped PC or Mac to a VGA Monitor or Projector

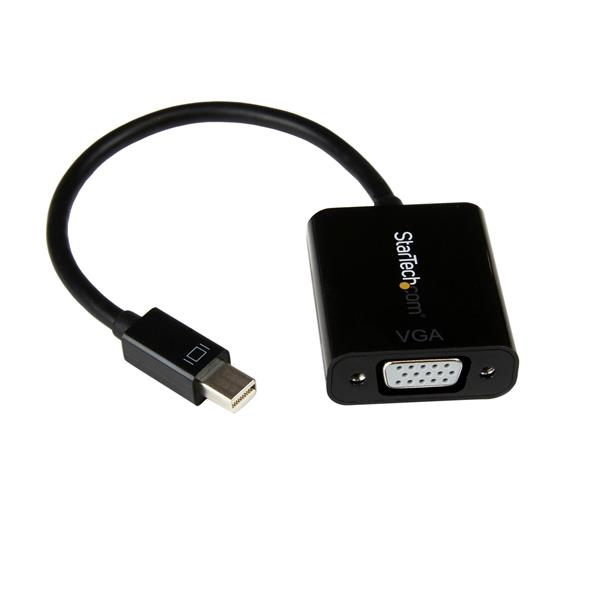

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook or any mDP-equipped Microsoft Surface Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920×1200 (WUXGA).
The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
– Save upgrade costs by connecting your Mini DisplayPort computer to a VGA monitor or Projector
– Maximum portability, with small foot print, and no external power adapter
| Feature | Feature Value |
|---|---|
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 720p,1080p |
| Converter type | Active video converter |
| Maximum resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Plug and Play | Y |
| Cable length | 0.18 m |
| Chipset | Analogix – ANX9833 |
| RoHS compliance | Y |
| Certification | REACH, CE, FCC |

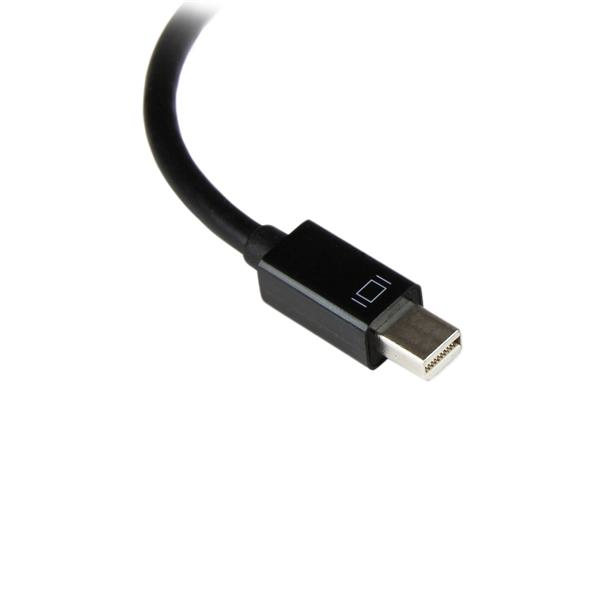

| Host interface | Mini DisplayPort |
| Output interface | VGA |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Width | 35 mm |
| Depth | 220 mm |
| Height | 8 mm |
| Weight | 27 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 18 mm |
| Package weight | 36 g |
| Audio support | N |
