StarTech.com M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.0 (5Gbps) with UASP

Transparent IT Expo — Wednesday 1st March 2023

SKU: SM2NGFFMBU33 Category:

StarTech.com M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.0 (5Gbps) with UASP

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£26.06 £21.72 Ex. VAT

Availability: 46 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Turn your solid state drive into an ultra-portable pocket drive

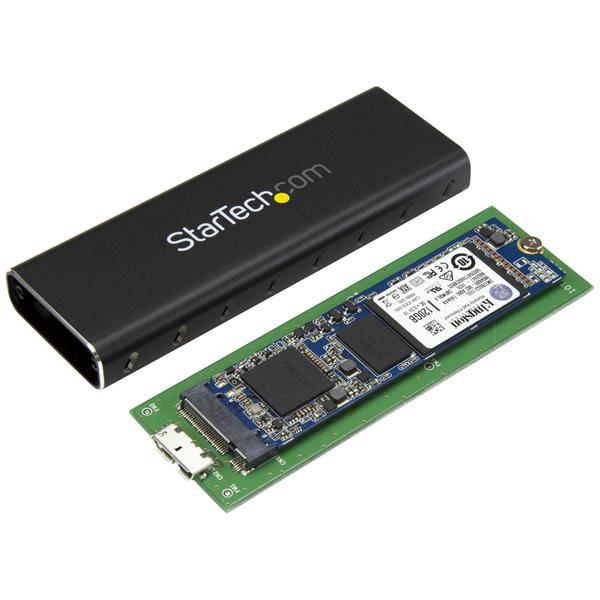

The SM2NGFFMBU33 external USB 3.0 to M.2 (NGFF) enclosure turns your SATA M.2 solid state drive into a portable, high speed USB 3.0 drive.

Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer.

This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter.

Durable aluminum construction helps to ensure your drive won’t be damaged while you’re on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive.

For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280.

The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

– Get the most out of your M.2 SSD with an external USB enclosure that supports UASP, for transfer speeds up to 70% faster than traditional USB 3.0
– Rest assured your M.2 SSD is supported, with mounting points for the most common M.2 NGFF SSD heights (2230, 2242, 2260, 2280)
– Carry your USB 3.0 external M.2 SSD in your laptop bag, and maximize portability with a small footprint, lightweight design

– Boost external performance by leveraging the speed of your SATA M.2 SSD in a UASP-supported USB 3.0 enclosure
– Maximize portability with a small footprint, lightweight design and USB-powered performance
– Broad compatibility with support for the most common SATA M.2 SSDs (30mm, 42mm, 60mm, 80mm)
– Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
– Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
– Compatible with SATA revision I/II/III (1.5 / 3.0 / 6.0 Gbps)


Feature Feature Value
Storage drive size M.2
Supported storage drive interfaces M.2
Number of storage drives supported 1
Supported storage drive lengths 30,42,60,80 mm
USB connectivity Y
USB version 3.0 (3.1 Gen 1)
USB connector type Micro-USB B
USB connector gender Female
USB ports quantity 1
Integrated USB cable N
Product type SSD enclosure
Product colour Black
Material Aluminium
RoHS compliance Y
Certification FCC, CE, TAA, REACH
Data transfer rate 6 Gbit/s
Chipset Asmedia – ASM1153
UASP support Y
Power source type USB
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -10 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 35 mm
Depth 100 mm
Height 15 mm
Weight 50 g
Package width 163 mm
Package depth 131 mm
Package height 31 mm
Package weight 125 g
Cables included USB
Screws included Y
Screwdriver included Y
Manual Y
Storage drive size

M.2

USB connectivity

Y

USB connector type

Micro-USB B

USB ports quantity

1

Material

Aluminium

Chipset

ASMedia – ASM1153

Width

35 mm

USB version

3.0 (3.1 Gen 1)

USB connector gender

Female

Data transfer rate

6 Gbit/s

Weight

50 g
