StarTech.com HP J8177C Compatible SFP Transceiver Module - 1000BASE-T

Transparent IT Expo — Wednesday 1st March 2023

SKU: J8177CST Category:

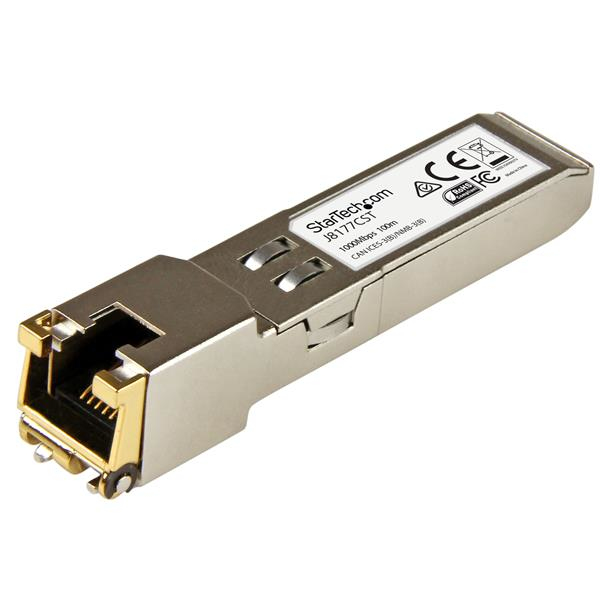

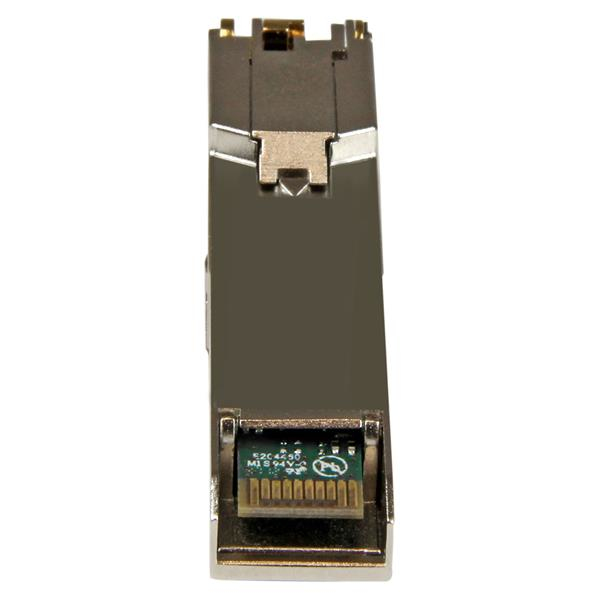

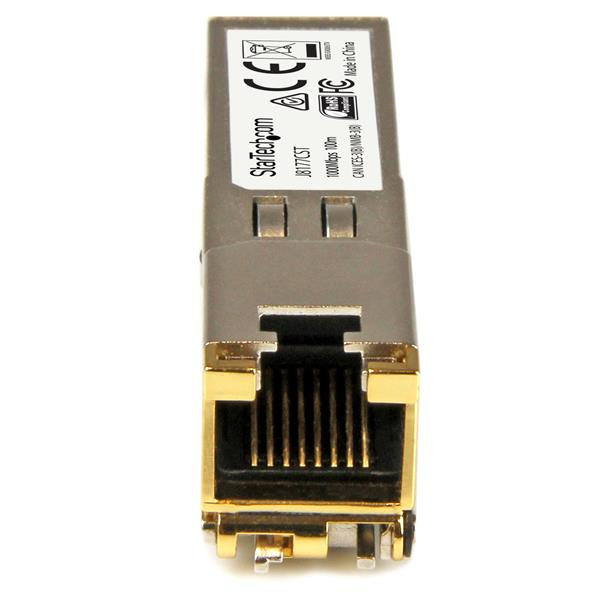

StarTech.com HP J8177C Compatible SFP Transceiver Module - 1000BASE-T

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£40.86 £34.05 Ex. VAT

Availability: 5 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

The J8177CST is an HP J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

Maximum Data Transfer Rate: 1000 Mbps

Type: Copper

Connection Type: RJ45 Connector

Maximum Transfer Distance: 100 m (328 ft)

MTBF: 4,655,371 hours

Power Consumption: Less than 1.3 Watts

Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

– 100% compatibility with HP J8177C guaranteed
– StarTech.com SFP modules are backed by a lifetime warranty
– Uses a cost-effective cabling alternative to fiber-optic set ups


Feature Feature Value
SFP transceiver type Copper
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Fiber optic connector MiniGBIC
Maximum transfer distance 100 m
Networking standards IEEE 802.3ab
Auto MDI/MDI-X Y
Auto-negotiation Y
Digital Diagnostics Monitoring (DDM) N
Ethernet LAN (RJ-45) ports 1
Product colour Silver
Housing material Aluminium
Hot-swap Y
Mean time between failures (MTBF) 4655371 h
RoHS compliance Y
Certification CE, FCC
Power consumption (typical) 1.3 W
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 30 – 75%
Width 14 mm
Depth 68 mm
Height 14 mm
Weight 25 g
Number of products included 1 pc(s)
Package width 118 mm
Package depth 92 mm
Package height 34 mm
Package weight 53 g
Interface type

SFP+

Maximum transfer distance

100 m

Hot-swap

Y

Width

14 mm

Number of products included

1 pc(s)

Maximum data transfer rate

1000 Mbit/s

Fiber optic connector

MiniGBIC

Ethernet LAN (RJ-45) ports

1

Weight

25 g
