StarTech.com HDMI Signal Booster - HDMI Extender - 4K 60Hz

Transparent IT Expo — Wednesday 1st March 2023

SKU: HDBOOST4K Category:

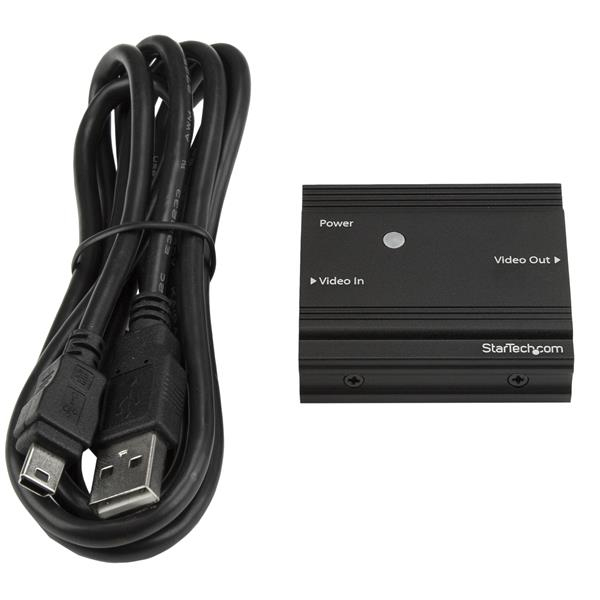

StarTech.com HDMI Signal Booster - HDMI Extender - 4K 60Hz

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£75.24 £62.70 Ex. VAT

Availability: 11 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

This 4K HDMI® signal booster lets you increase the signal strength of your HDMI video source so it can travel greater distances using standard HDMI cables. You can achieve resolutions up to 4K at 60Hz at distances of up to 30 ft. (10 m), and depending on your desired resolution, the booster supports distances up to 115 ft. (35 m) away at 1080p 60Hz resolution.

To install the booster, place it between two HDMI cables. Reference the table below for supported resolutions and cable lengths.

Maintains Ultra HD 4K video signals at 60Hz
When you’re extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few feet. Using this HDMI signal booster ensures that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 30 ft. (10 m).

You can achieve even longer distances at lower resolutions — up to 4K at 30Hz, at up to 82 ft. (25 m), and 1080p at 60Hz at up to 115 ft. (35 m).

Easy and discreet installation
With its small form factor design and no external power adapter, the HDMI booster is easy to hide, for a discreet installation. By extending your video signal using standard HDMI cables, the 4K booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.

Supports a variety of distances
The booster makes it easy to adjust your HDMI signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your HDMI signal, to ensure your signal will be flawless.

Support for a variety of extension distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.

Note: To achieve resolutions up to 4K60, your video source, display and cabling must support HDMI 2.0.

The HDBOOST4K is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Feature Feature Value
Type AV repeater
Maximum resolution 3840 x 2160 pixels
Maximum transfer distance 35 m
Audio system Multichannel
Audio output channels 7.1 channels
LED indicators Power
Supported video modes 720p,1080p,2160p
Supported graphics resolutions 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160
HDCP Y
Rack mounting N
Product colour Black
RoHS compliance Y
Certification CE, FCC
HDMI in 1
Number of HDMI outputs 1
Operating temperature (T-T) 0 – 35 °C
Storage temperature (T-T) -5 – 40 °C
Operating relative humidity (H-H) 20 – 80%
Dimensions (WxDxH) 46 x 56 x 15 mm
Weight 150 g
Package dimensions (WxDxH) 102 x 154 x 47 mm
Package weight 200 g
Cables included USB
Audio support Y
Type

AV repeater

Maximum transfer distance

35 m

HDCP

Y

Maximum resolution

3840 x 2160 pixels

Audio system

Multichannel

Rack mounting

N

HDMI in

1

Weight

150 g
