SKU: HD2A Category: HDMI Audio Extractor – 1080p

* Images are for illustrative purposes only.

£45.04 £37.53 Ex. VAT

Availability: 11 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

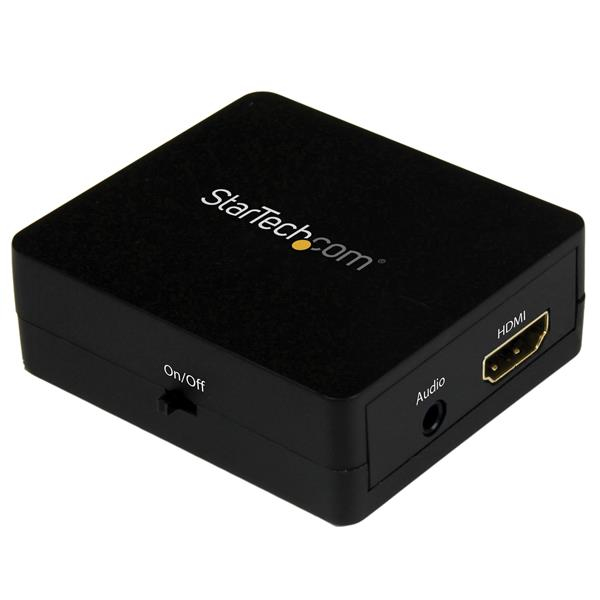

This HDMI® audio extractor lets you separate stereo audio from your HDMI video signal and connect it to a 3.5mm audio device, such as your stereo sound system or desktop speakers. You can also extract the audio from the HDMI signal and integrate it into an optical TOSLINK® application, using the included digital SPDIF adapter.

Hassle-free integration
Your latest consumer A/V equipment probably only offers an HDMI output. This can make it difficult to integrate devices, such as your new Blu-ray™ player or computer system, with your existing audio equipment or desktop speakers.

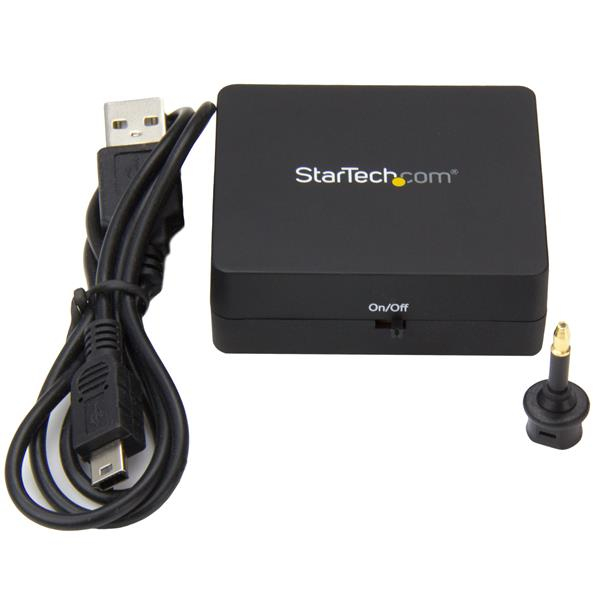

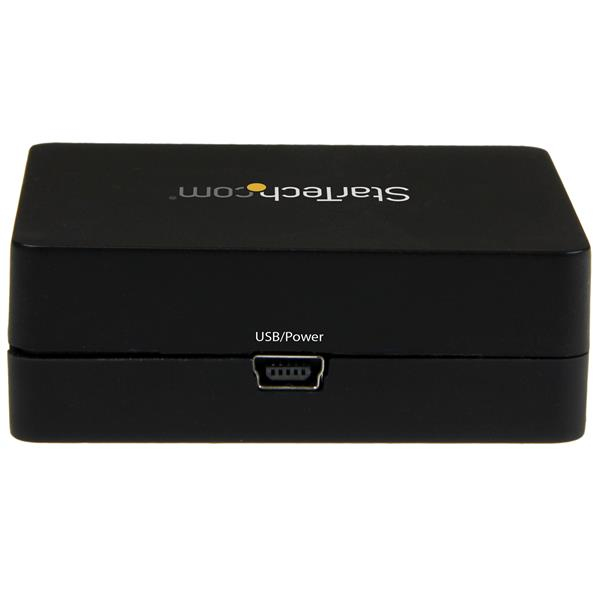

The HDMI audio extractor is USB powered using the included power cable, for easy integration with your computer systems. The adapter also features a small footprint that discreetly blends into your hardware setup, for a uniform look.

Versatile connection options

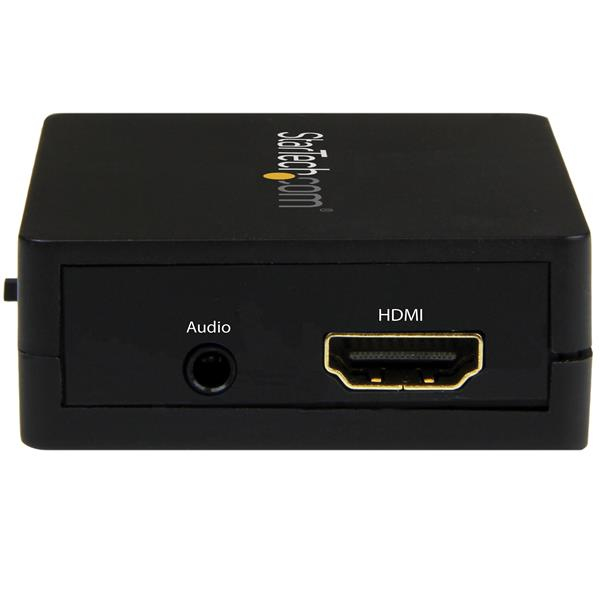

With a 3.5mm audio output and a TOSLINK adapter included, the HDMI audio extractor lets you output audio to virtually any non-HDMI equipment, whether it’s digital or analog. This makes the audio extractor great for any application where you need to connect your HDMI source to speakers that don’t have an HDMI input – such as desktop speakers, or a classroom or boardroom sound system.

Maximum compatibility

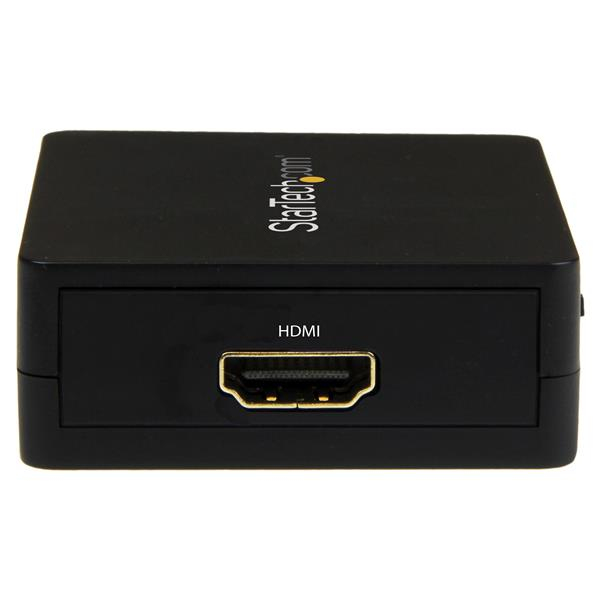

The audio extractor is HDCP enabled and HDMI 1.3b compliant, to ensure compatibility with your HDMI device. Plus, the HDMI output supports resolutions up to 1920×1080 (1080p) at 60Hz, to fit any HD application.

The HDMI audio extractor can also be used with an inexpensive dual-RCA composite adapter (sold separately) to integrate the audio from your HDMI source into 2-channel RCA audio applications.

The HD2A is backed by a 2-year warranty and free lifetime technical support.

Feature Feature Value
Maximum video resolution 1920 x 1080 pixels
Supported video modes 480p,720p,1080p
Audio output channels 2.1 channels
Chipset Explore-EP93Z3E
Certification CE, FCC
Host interface HDMI
Output interface HDMI
Audio output 3.5 mm
USB powered Y
Width 55 mm
Depth 60 mm
Height 20 mm
Weight 38 g
Cables included USB
Package width 23 mm
Package depth 132 mm
Package height 90 mm
Package weight 100 g
Audio support Y
Maximum video resolution

1920 x 1080 pixels





Host interface



55 mm

USB powered



38 g
