Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice

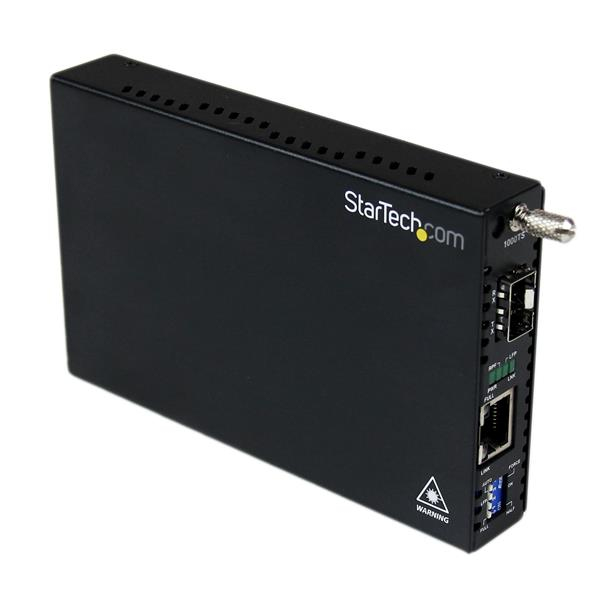

The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).
The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, ETCHS2U” text=”2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a ET91000SFP2C” text=”Card Module only (ET91000SFP2C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Install the SFP of your choice with the open SFP slot
– Operate as a standalone media converter or install into the ETCHS2U chassis
– Ensure maximum up-time with link-loss forwarding and remote status monitoring
|Maximum data transfer rate||1250 Mbit/s|
|Converter input interface||1000Base-T|
|Converter output interface||1000Base-LX,1000Base-SX|
|Networking standards||IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z|
|Ethernet interface type||Gigabit Ethernet|
|Ethernet LAN data rates||1000 Mbit/s|
|Fiber optic connector||SFP|
|Ethernet LAN (RJ-45) ports||1|
|Fiber ports quantity||1|
|Mean time between failures (MTBF)||65000 h|
|Input voltage||100 – 240 V|
|Input current||0.36 A|
|Output voltage||12 V|
|Output current||1 A|
|Power consumption (typical)||8 W|
|Power over Ethernet (PoE)||N|
|External power adapter||Y|
|Operating temperature (T-T)||0 – 60 °C|
|Storage temperature (T-T)||-10 – 70 °C|
|Operating relative humidity (H-H)||10 – 90%|
|Package width||135 mm|
|Package depth||203 mm|
|Package height||90 mm|
|Package weight||600 g|
