StarTech.com Gigabit Ethernet Copper-to-Fiber Media Converter – SM LC – 20 km

* Images are for illustrative purposes only.

£233.40 £194.50 Ex. VAT

Free UK Shipping Available*

Availability: 5 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

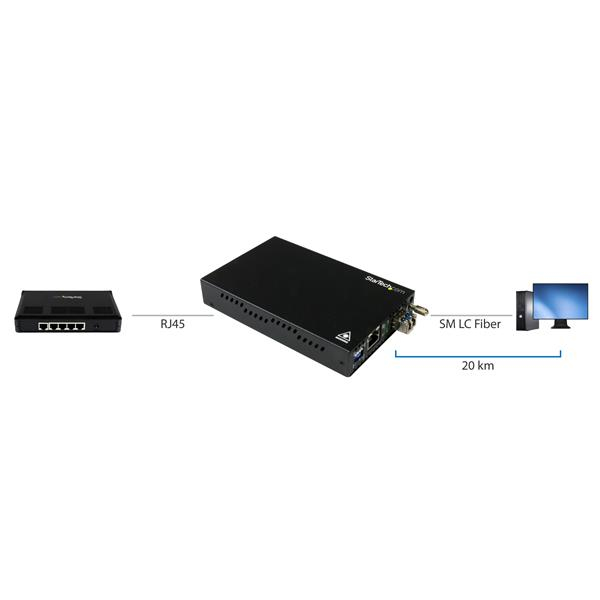

This Gigabit Ethernet to fiber media converter is a cost-effective way to extend your network, or extend the distance between two devices by up to 20 km (12.4 mi.).

Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications.

Flexible integration into mixed network environments
This versatile copper-to-fiber converter supports standalone operation, or alternatively it can be installed into the StarTech.com Rackmount Chassis (ETCHS2U – sold separately), giving you more options for integration into your existing network. The card module can also be inserted back into the ET91000SM20 enclosure, plus it’s compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately).

The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements.

With flexible integration and connectivity up to 20 km away, you can provide network access to remote areas in other buildings, or in areas where Wi-Fi® is unreliable or unavailable.

Rugged and reliable
This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses.

Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses.

Diagnose and correct issues easily
This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily.

Prepare your network for the future
If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.

The ET91000SM20 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.


Feature Feature Value
Maximum data transfer rate 2000 Mbit/s
Converter input interface 1000Base-T
Converter output interface 1000Base-LX
Networking standards IEEE 802.3ab,IEEE 802.3z
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Jumbo frames support Y
Jumbo frames 9600
Flow control support N
Auto MDI/MDI-X Y
Duplex system Full,Half
Fiber optic connector LC
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Maximum transfer distance 20000 m
Wavelength 1310 nm
Wavelength-division multiplexing (WDM) N
Fiber mode structure Single-mode
Mean time between failures (MTBF) 65000 h
Internal N
LED indicators Link,Power
Product colour Black
Housing material Plastic,Steel
RoHS compliance Y
Certification CE, FCC
Input voltage 100 – 240 V
Input current 0.48 A
Output voltage 12 V
Output current 1.6 A
Power consumption (max) 19.2 W
Power over Ethernet (PoE) N
Power plug type Type M
Width 88 mm
Depth 159 mm
Height 23 mm
Weight 410 g
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -10 – 70 °C
Operating relative humidity (H-H) 10 – 90%
Package width 135 mm
Package depth 205 mm
Package height 90 mm
Package weight 800 g
AC adapter included Y
Manual Y
Maximum data transfer rate

2000 Mbit/s

Flow control support

N

Duplex system

Full,Half

Fiber ports quantity

1

Fiber mode structure

Single-mode

Weight

410 g

Ethernet LAN data rates

10,100,1000 Mbit/s

Fiber optic connector

LC

Ethernet LAN (RJ-45) ports

1

Maximum transfer distance

20000 m

Power over Ethernet (PoE)

N

Width

88 mm
