Laptop Docking Station | Mac & Windows | DVI to VGA Adapter | Vertical
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.

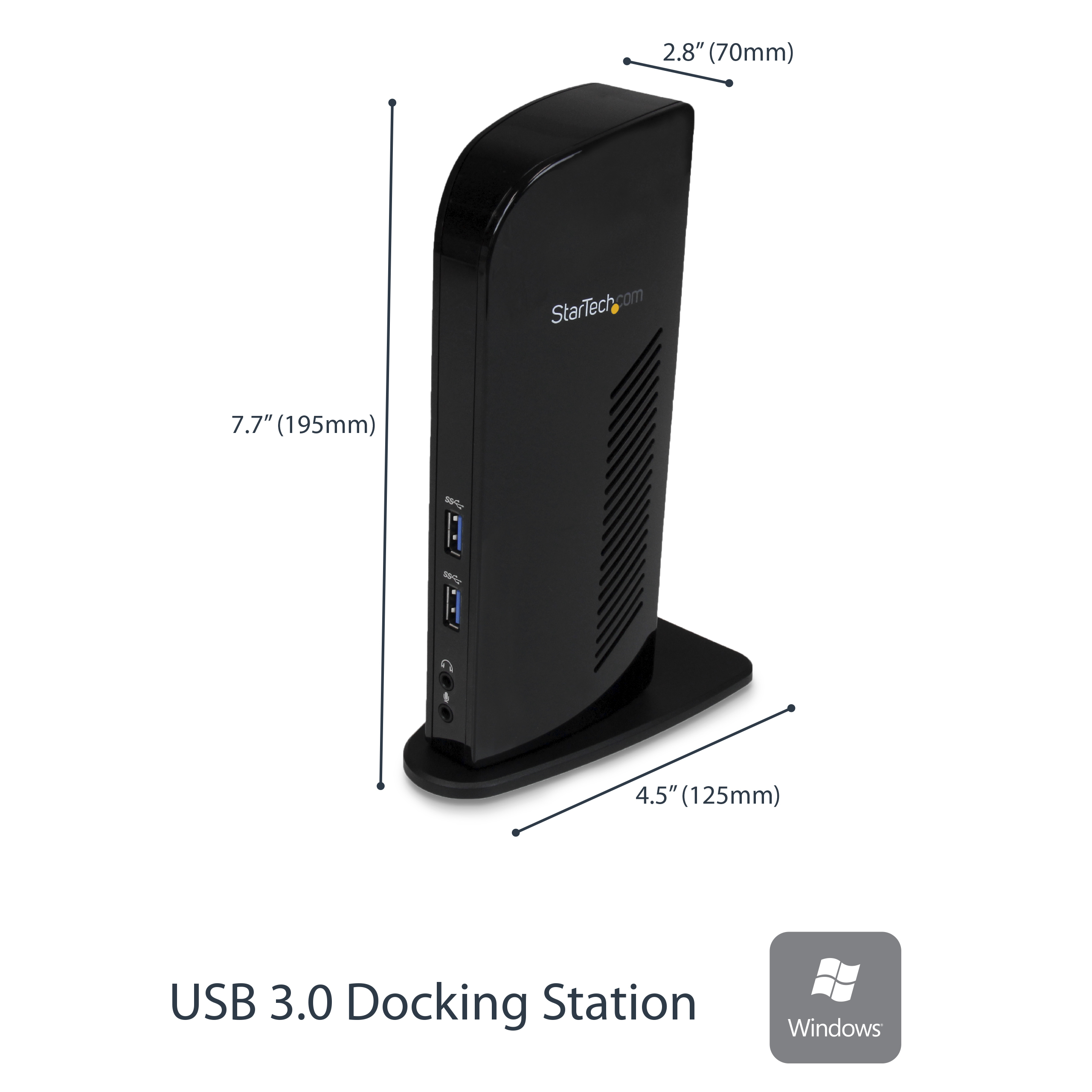

With an upright design, the dock occupies as little desk space as your smart phone, so it’s perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
– Flexible video output to extend or mirror your desktop at up to 1920×1200, with HDMI and DVI ports, plus included DVI to VGA adapter
– USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device
– The laptop docking station provides two additional USB 3.0 ports and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
|Host interface||USB 3.0 (3.1 Gen 1) Type-B|
|USB 2.0 ports quantity||4|
|USB 3.0 (3.1 Gen 1) Type-A ports quantity||2|
|HDMI ports quantity||1|
|DVI-I ports quantity||1|
|Combo headphone/mic port||N|
|Headphone connectivity||3.5 mm|
|USB connector type||USB Type-A|
|Ethernet LAN (RJ-45) ports||1|
|Ethernet LAN data rates||10,100,1000 Mbit/s|
|Networking standards||IEEE 802.3,IEEE 802.3ab,IEEE 802.3u|
|Card reader integrated||N|
|Data transfer rate||5 Gbit/s|
|Maximum digital resolution||1920 x 1200 pixels|
|AC input voltage||100-240 V|
|Input current||0.8 A|
|Output voltage||5 V|
|Output current||4 A|
|Power consumption (typical)||20 W|
|Power plug type||Type C|
|Compatible power plug types||AU,EU,JP,UK,US|
|Windows operating systems supported||Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows XP Home,Windows XP Professional|
|Mac operating systems supported||Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave|
|Other operating systems supported||Chrome|
|Package width||190 mm|
|Package depth||273 mm|
|Package height||109 mm|
|Package weight||947 g|
|AC adapter included||Y|
|Interface adapters included||DVI-I male – VGA female|
|Operating temperature (T-T)||10 – 40 °C|
|Storage temperature (T-T)||-10 – 80 °C|
|Minimum system requirements||CPU: i3 Dual core 2.8GHz +nRAM: 2GB +|
|Chipset||DisplayLink – DL-3900, VLI – VL810, Terminus – FE1.1, Realtek – RTL8211E|
|Number of microphone inputs||1|
