StarTech.com Dual Monitor USB 3.0 Docking Station with HDMI & 4K DisplayPort

Transparent IT Expo — Wednesday 1st March 2023

SKU: USB3DOCKHDPC Category:

StarTech.com Dual Monitor USB 3.0 Docking Station with HDMI & 4K DisplayPort

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£227.41 £189.51 Ex. VAT

Free UK Shipping Available*

Availability: 26 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

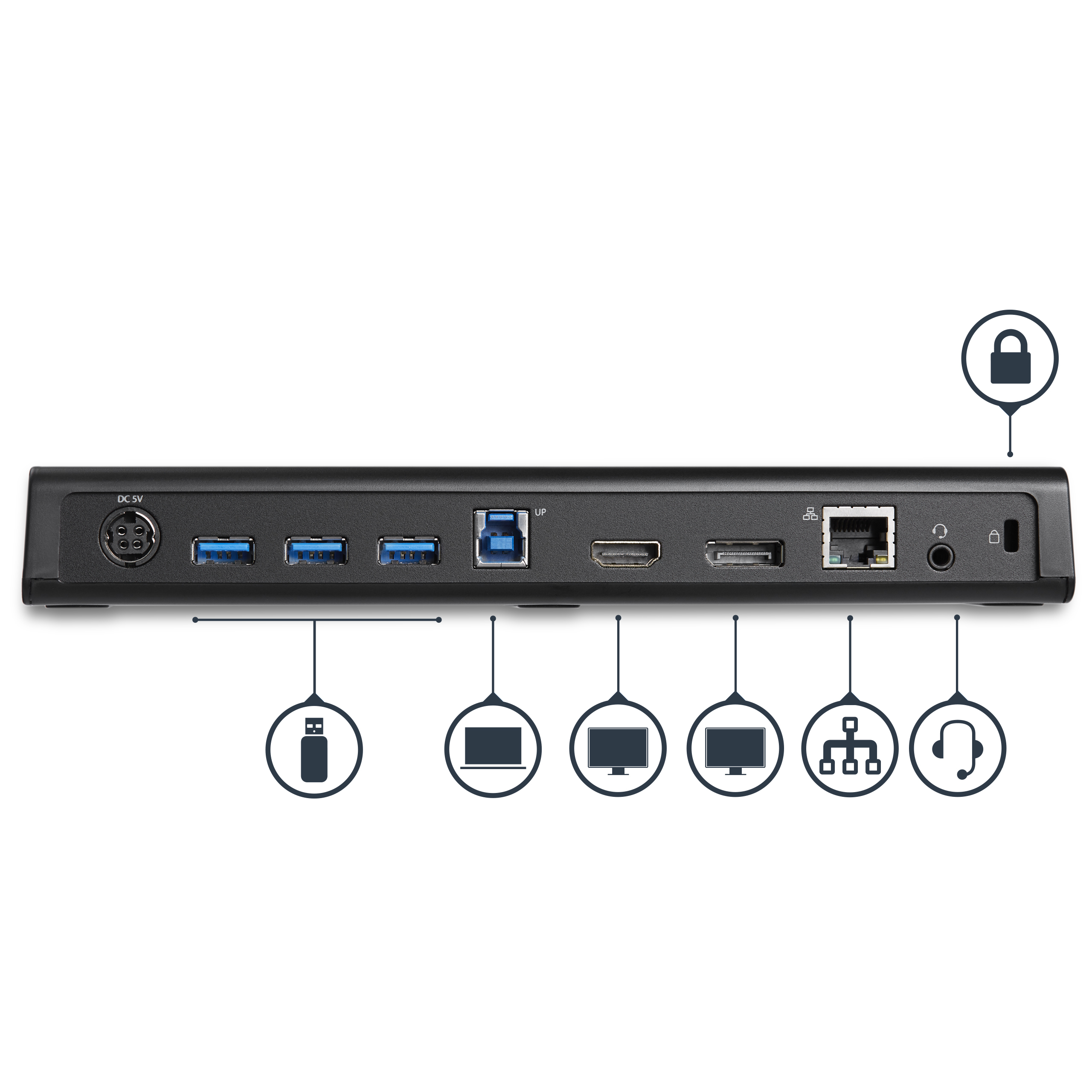

Laptop Docking Station | Mac & Windows | USB Fast Charge Port | 4 USB Ports | TAA Compliant

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution

DisplayPort

(Single Display)

3840 x 2160p (4K)

N/A

HDMI

(Single Display)

N/A

2560 x 1440p

DisplayPort and HDMI

(Two Displays)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

USB Fast Charge

The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use

This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

The StarTech.com Advantage

– Connect dual monitors (HDMI and 4K DP) to your Mac or Windows laptop
– Achieve a higher resolution with up to 3840x2160p on a single display
– Maximize your display capabilities with dual displays at 2048x1152p resolutions


Feature Feature Value
Connectivity technology Wired
Host interface USB 3.0 (3.1 Gen 1) Type-B
USB 3.0 (3.1 Gen 1) Type-A ports quantity 4
HDMI ports quantity 1
Headphone outputs 1
DisplayPorts quantity 1
Headphone connectivity 3.5 mm
USB connector type USB Type-A
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Wake-on-LAN ready Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X Y
Full duplex Y
Product colour Black
Card reader integrated N
Data transfer rate 5 Gbit/s
Maximum digital resolution 3840 x 2160 pixels
Cable lock slot Y
LED indicators Activity,Link
Charging function Y
UASP support Y
Housing material Plastic,Steel
Brand compatibility Universal
RoHS compliance Y
Certification CE, FCC, DisplayLink
AC input voltage 100-240 V
Input current 1.5 A
Output voltage 5 V
Output current 6.5 A
Power consumption (typical) 32.5 W
Compatible power plug types AU,EU,UK,US
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibility Y
Mac operating systems supported Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
Other operating systems supported Chrome
Width 76 mm
Depth 227 mm
Height 24 mm
Weight 277 g
Package width 193 mm
Package depth 250 mm
Package height 69 mm
Package weight 1.1 kg
Cables included AC,USB
AC adapter included Y
Manual Y
Drivers included Y
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -10 – 80 °C
Operating relative humidity (H-H) 0 – 90%
Cable length 0.6 m
Chipset DisplayLink – DL-5900, VLI – VL812
USB data transfer rates 5000 Mbit/s
Full duplex

Y

Maximum digital resolution

3840 x 2160 pixels

Headphone outputs

1

Cable length

0.6 m

Headphone connectivity

3.5 mm

Weight

277 g

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Mac compatibility

Y

Brand compatibility

Universal

Card reader integrated

N

Width

76 mm

Host interface

USB 3.0 (3.1 Gen 1) Type-B

Data transfer rate

5 Gbit/s

HDMI ports quantity

1

Wake-on-LAN ready

Y

Ethernet LAN (RJ-45) ports

1

USB connector type

USB Type-A

DisplayPorts quantity

1

Chipset

DisplayLink – DL-5900, VLI – VL812
