StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£208.69 £173.91 Ex. VAT

Free UK Shipping Available*

Availability: 54 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Laptop Docking Station | Mac & Windows | DVI to VGA & HDMI Adapters | 2x Charge Ports

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

Display Flexibility

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048×1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

Powerful Connections and Fast Device Charging

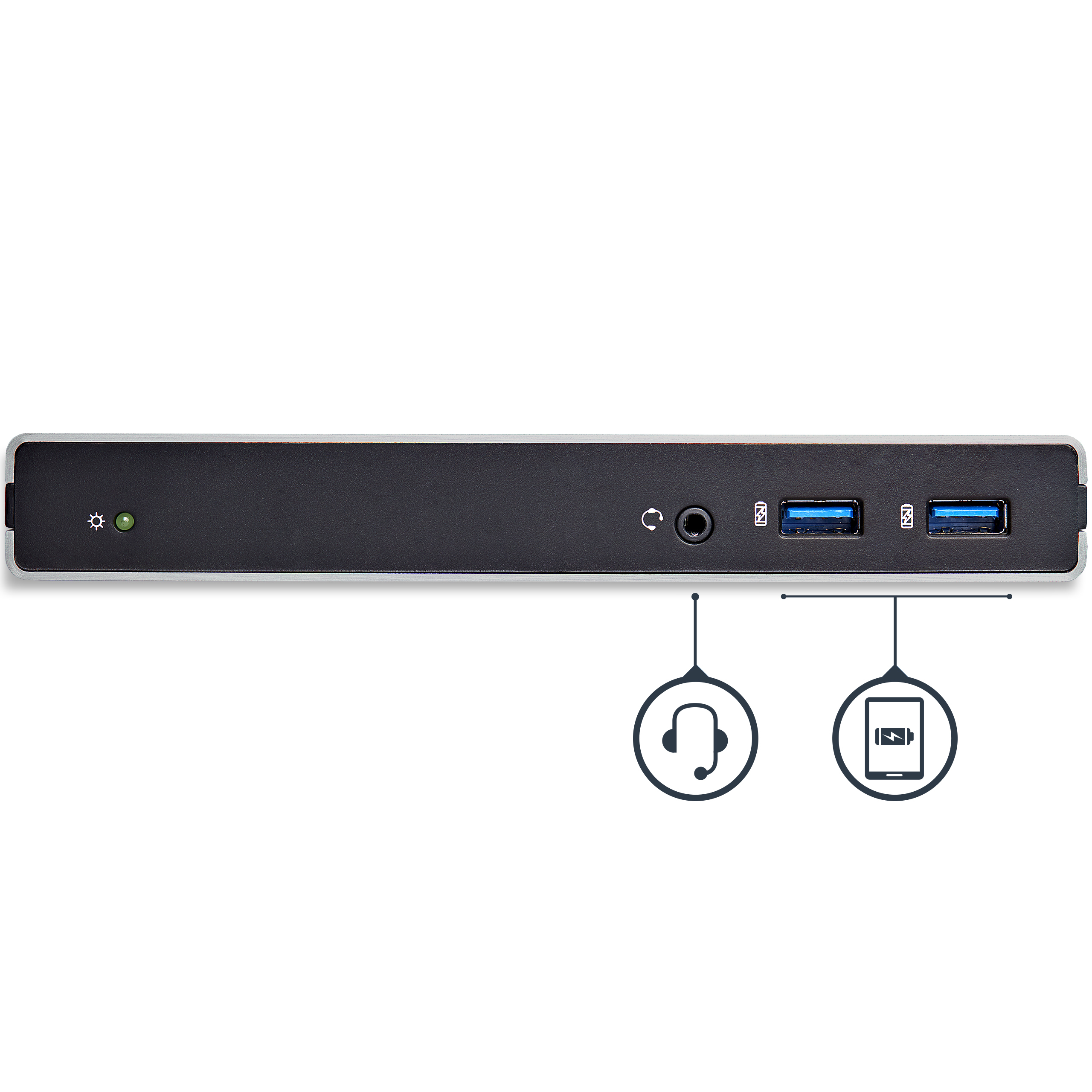

Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

Save Desktop Space

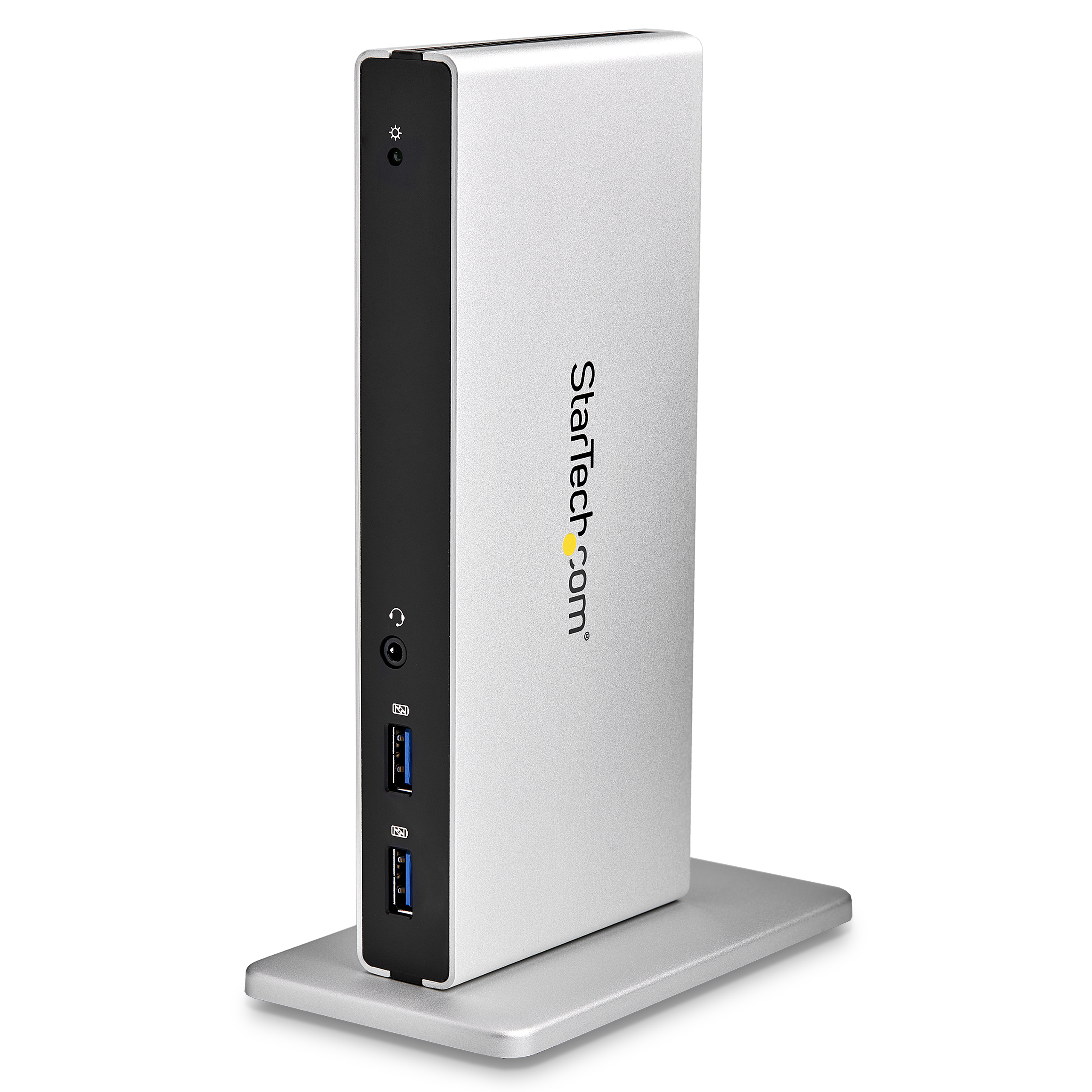

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.

The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

– Dock your USB 3.0 equipped Mac or Windows laptop with support for several dual monitor configurations using the included video adapters
– Connect and charge your USB devices with 5x USB 3.0 ports, including two Fast-Charge USB ports
– Save space on your desktop by placing the dock in a vertical orientation with the included dock stand

– Dock your USB 3.0 equipped Mac or Windows laptop with support for several dual monitor configurations using the included video adapters
– Connect and charge your USB devices with 5x USB 3.0 ports, including two Fast-Charge USB ports
– Save space on your desktop by placing the dock in a vertical orientation with the included dock stand
– Add wired network connectivity and audio devices with the Gigabit Ethernet RJ-45 port and headset jack plus separate 3.5 mm audio and microphone ports


Feature Feature Value
Connectivity technology Wired
Host interface USB 3.0 (3.1 Gen 1) Type-B
USB 3.0 (3.1 Gen 1) Type-A ports quantity 5
Headphone outputs 1
DVI-I ports quantity 1
DVI-D ports quantity 1
Combo headphone/mic port Y
Headphone connectivity 3.5 mm
DC-in jack Y
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Wake-on-LAN ready Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X Y
Full duplex Y
Product colour Black,Silver
Card reader integrated N
Data transfer rate 5 Gbit/s
Maximum analog resolution 2048 x 1152 pixels
LED indicators Power
Charging function Y
UASP support Y
Rubber feet Y
Housing material Aluminium,Plastic
Brand compatibility Universal
RoHS compliance Y
Certification CE, FCC, REACH
Power source type AC
AC input voltage 100-240 V
Input current 0.8 A
Output voltage 5 V
Output current 4 A
Power consumption (typical) 20 W
Power plug type Type M
Compatible power plug types AU,EU,UK,US
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibility Y
Mac operating systems supported Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
Other operating systems supported Chrome
Width 23 mm
Depth 83 mm
Height 178 mm
Weight 285 g
Package width 255 mm
Package depth 186 mm
Package height 95 mm
Package weight 1 kg
Cables included USB
AC adapter included Y
Manual Y
Drivers included Y
Stand included Y
Interface adapters included DVI-I male – HDMI female,DVI-I male – VGA female
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 5 – 85%
Cable length 1 m
Chipset DisplayLink – DL-3900, Genesys Logic – GL3520
USB data transfer rates 12,480,5000 Mbit/s
Chipset

DisplayLink – DL-3900, Genesys Logic – GL3520

Wake-on-LAN ready

Y

Width

23 mm

Data transfer rate

5 Gbit/s

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN

Y

Full duplex

Y

Card reader integrated

N

Headphone outputs

1

Maximum analog resolution

2048 x 1152 pixels

Brand compatibility

Universal

Mac compatibility

Y

Headphone connectivity

3.5 mm

Weight

285 g

Interface adapters included

DVI-I male – HDMI female,DVI-I male – VGA female

Cable length

1 m

Host interface

USB 3.0 (3.1 Gen 1) Type-B
