Connect your DVI Dual Link display to a DisplayPort video source, for high resolution applications

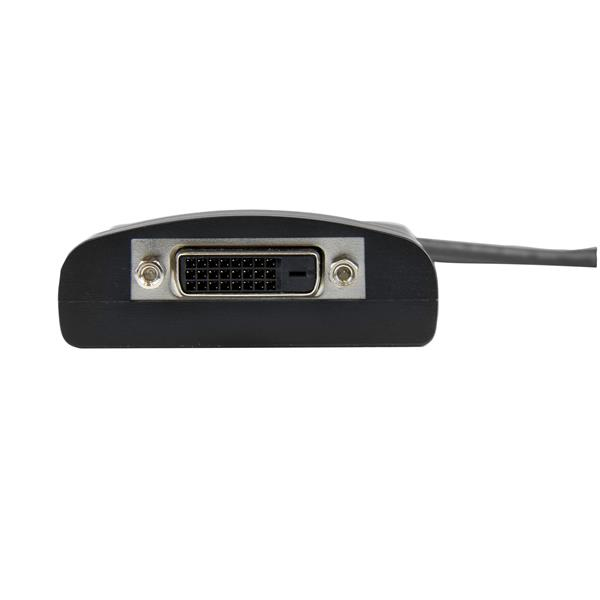

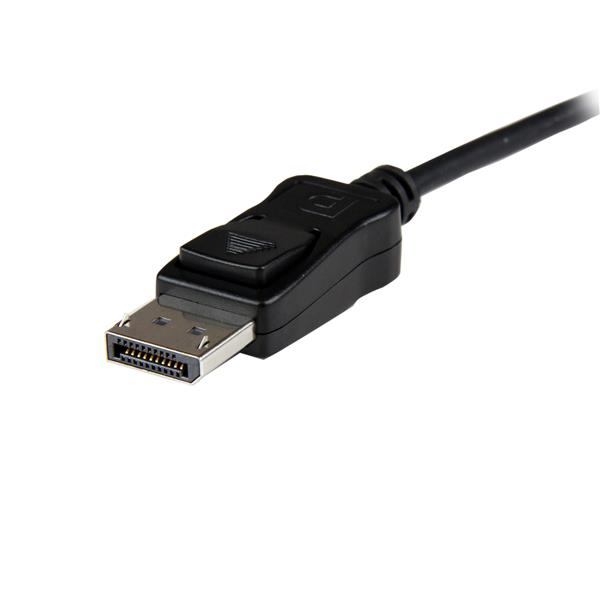

The DP2DVID2 DisplayPort to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560×1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren’t capable of outputting multimode DP++ signals, such as ATI Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
– Eliminates cost by making your DisplayPort video output compatible with an older, DVI-D (dual link) display
– Suitable for DisplayPort video cards not capable of outputting DVI signals (i.e. single mode DisplayPort)
|Maximum video resolution||2560 x 1600 pixels|
|Video resolutions||1920 x 1080,1920 x 1200 pixels|
|Maximum refresh rate||120 Hz|
|Converter type||Active video converter|
|Maximum resolution||2560 x 1600 pixels|
|Supported resolutions||2560 x 1600 n1920 x 1080 n1920 x 1200|
|Operating temperature (T-T)||0 – 45 °C|
|Storage temperature (T-T)||-20 – 70 °C|
|Package width||174 mm|
|Package depth||143 mm|
|Package height||35 mm|
|Package weight||232 g|
