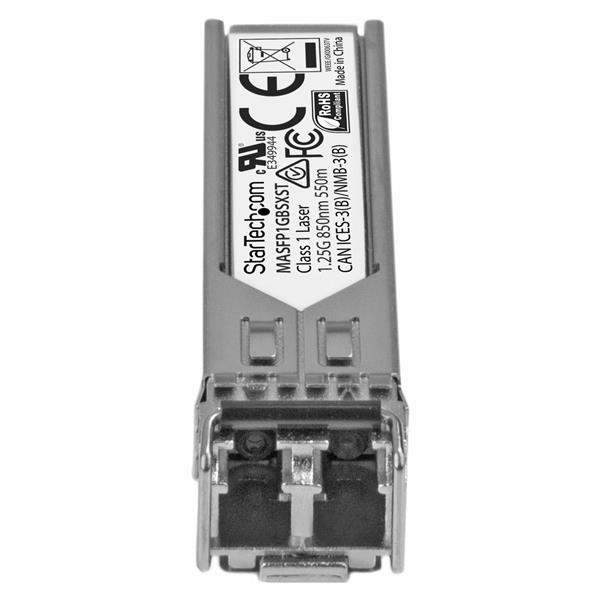

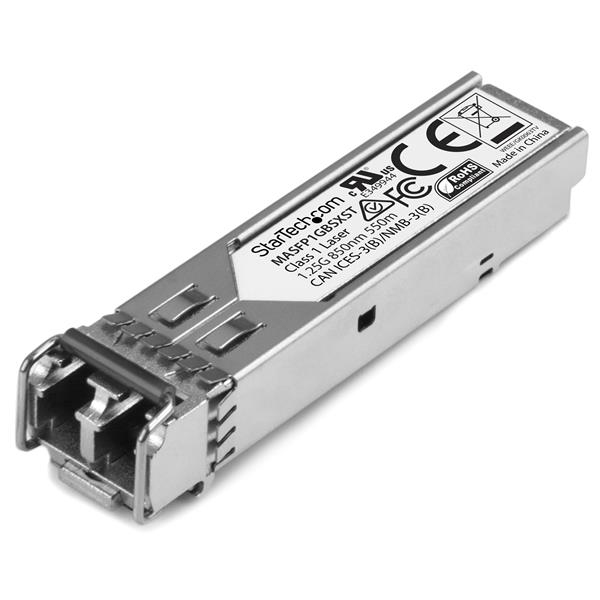

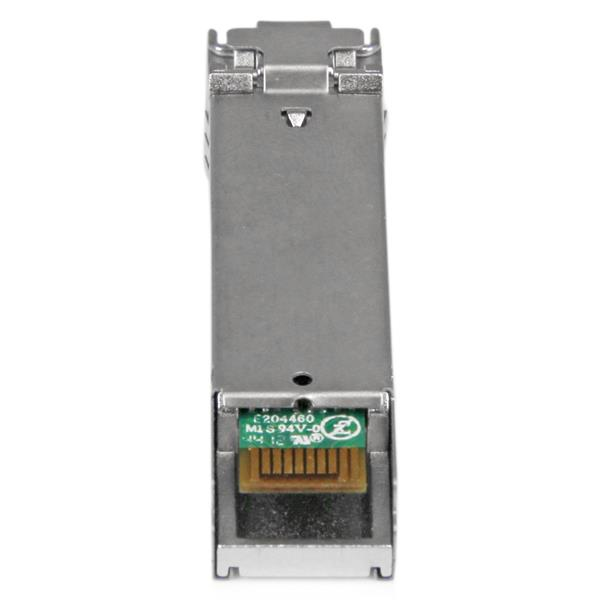

StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module – 1000BASE-SX

* Images are for illustrative purposes only.

£29.34 £24.45 Ex. VAT

Availability: 66 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).

Technical Specifications:

Wavelength: 850nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 550m (1804 ft)

MTBF: 1,967,709 hours

Power Consumption: Less than 1.2 Watts

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

– 100% compatibility with Cisco Meraki MA-SFP-1GB-SX guaranteed
– StarTech.com SFP modules are backed by a lifetime warranty
– Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards


Feature Feature Value
SFP transceiver type Fiber optic
Maximum data transfer rate 1250 Mbit/s
Interface type SFP
Multi-mode fiber (MMF) supported Y
Fiber optic connector LC
SFP transceiver standard SX
Maximum transfer distance 550 m
Wavelength 850 nm
Networking standards IEEE 802.3z
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Product colour Silver
Housing material Aluminium
Hot-swap Y
Mean time between failures (MTBF) 3381761 h
RoHS compliance Y
Country of origin China
Certification CE, FCC, UR
Power consumption (typical) 1 W
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 13.7 mm
Depth 56.6 mm
Height 12.5 mm
Weight 14 g
Number of products included 1 pc(s)
Package width 119 mm
Package depth 94 mm
Package height 33 mm
Package weight 42 g
Interface type

SFP+

Fiber optic connector

LC

Maximum transfer distance

550 m

Width

13.7 mm

Number of products included

1 pc(s)

Maximum data transfer rate

1250 Mbit/s

Duplex system

Full

Hot-swap

Y

Weight

14 g
