StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Transceiver Module - 1000BASE-LX

Black Friday Sale Now On | 25 — 28th November

SKU: MASFP1GBLX10 Category:

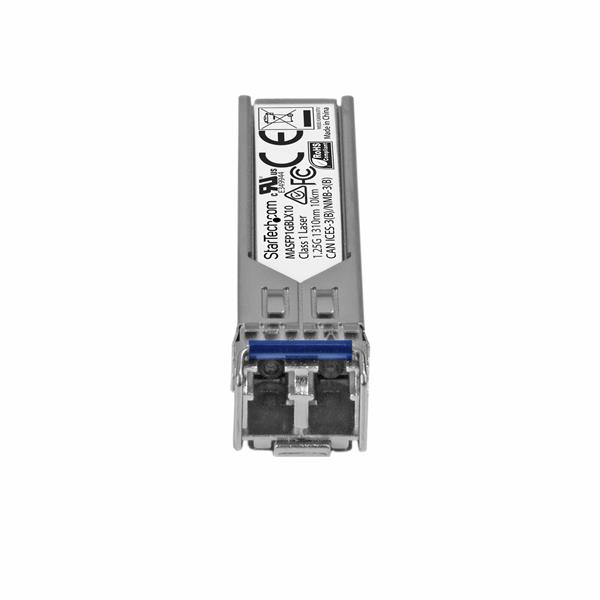

StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Transceiver Module - 1000BASE-LX

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£45.97 £38.31 Ex. VAT

Availability: 2 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

Wavelength: 1310nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 3,092,408 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

– 100% compatibility with Cisco Meraki MA-SFP-1GB-LX10 guaranteed
– StarTech.com SFP modules are backed by a lifetime warranty
– Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards


Feature Feature Value
SFP transceiver type Fiber optic
Maximum data transfer rate 1250 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported Y
Fiber optic connector LC
SFP transceiver standard LX
Maximum transfer distance 10000 m
Wavelength 1310 nm
Networking standards IEEE 802.3z
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Product colour Silver
Housing material Aluminium
Hot-swap Y
Mean time between failures (MTBF) 3092408 h
RoHS compliance Y
Certification CE, FCC, UR
Power consumption (typical) 1 W
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 13.7 mm
Depth 56.6 mm
Height 12.5 mm
Weight 20 g
Number of products included 1 pc(s)
Package width 118 mm
Package depth 93 mm
Package height 33 mm
Package weight 46 g
Interface type

SFP+

Fiber optic connector

LC

Maximum transfer distance

10000 m

Weight

20 g

Maximum data transfer rate

1250 Mbit/s

Duplex system

Full

Hot-swap

Y

Width

13.7 mm

Number of products included

1 pc(s)
