SKU: MASFP10GBSR Category:

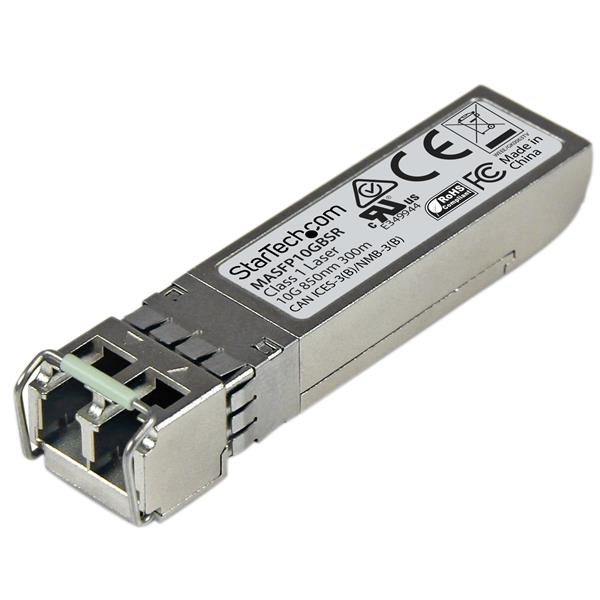

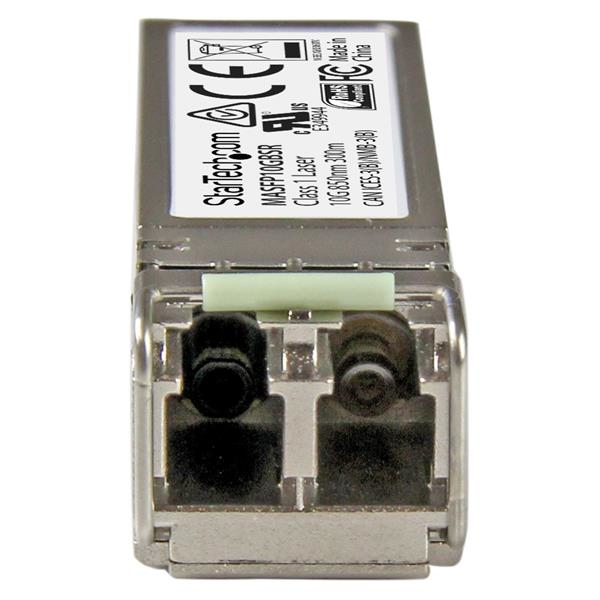

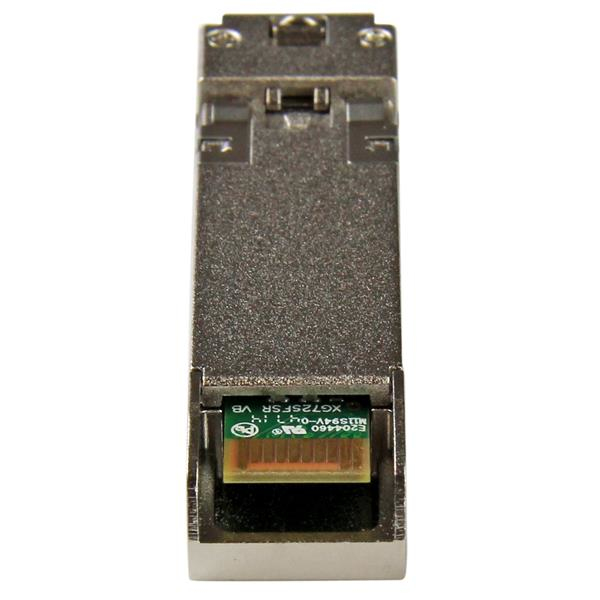

StarTech.com Cisco Meraki MA-SFP-10GB-SR Compatible SFP+ Transceiver Module – 10GBASE-SR

* Images are for illustrative purposes only.

£43.31 £36.09 Ex. VAT

Availability: 88 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).

Technical Specifications:

Wavelength: 850nm

Maximum Data Transfer Rate: 10 Gbps

Type: Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 300 m (984 ft)

MTBF: 1,967,709 hours

Power Consumption: Less than 1.2 Watts

Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

– 100% compatibility with Cisco Meraki MA-SFP-10GB-SR guaranteed
– StarTech.com SFP modules are backed by a lifetime warranty
– Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards


Feature Feature Value
SFP transceiver type Fiber optic
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Multi-mode fiber (MMF) supported Y
Fiber optic connector LC
SFP transceiver standard SR
Maximum transfer distance 300 m
Wavelength 850 nm
Networking standards IEEE 802.3ae
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Wavelength-division multiplexing (WDM) N
Product colour Silver
Housing material Aluminium
Hot-swap Y
Mean time between failures (MTBF) 1967709 h
RoHS compliance Y
Certification CE, FCC, UR
Power consumption (typical) 1.2 W
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 13.9 mm
Depth 54 mm
Height 12.6 mm
Weight 18 g
Number of products included 1 pc(s)
Package width 117 mm
Package depth 93 mm
Package height 34 mm
Package weight 47 g
Interface type

SFP+

Fiber optic connector

LC

Maximum transfer distance

300 m

Hot-swap

Y

Width

13.9 mm

Number of products included

1 pc(s)

Maximum data transfer rate

10000 Mbit/s

Duplex system

Full

Weight

18 g
