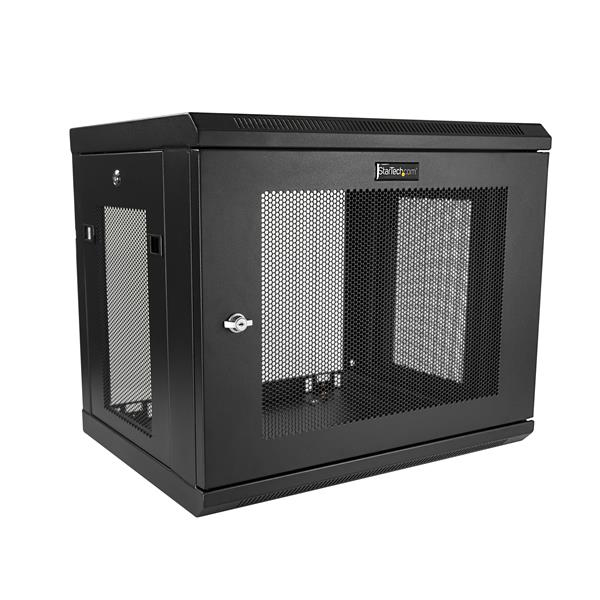

StarTech.com 9U Wall-Mount Server Rack Cabinet – 14.6 in. Deep

* Images are for illustrative purposes only.

£224.74 £187.28 Ex. VAT

Free UK Shipping Available*

Availability: 6 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Use this wall mount network cabinet to mount your equipment to the wall

This 9U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features an adjustable mounting depth from 6 to 14.6 in. and offers a maximum load capacity of 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that’s not rack-mountable.

Easily install your servers and network equipment

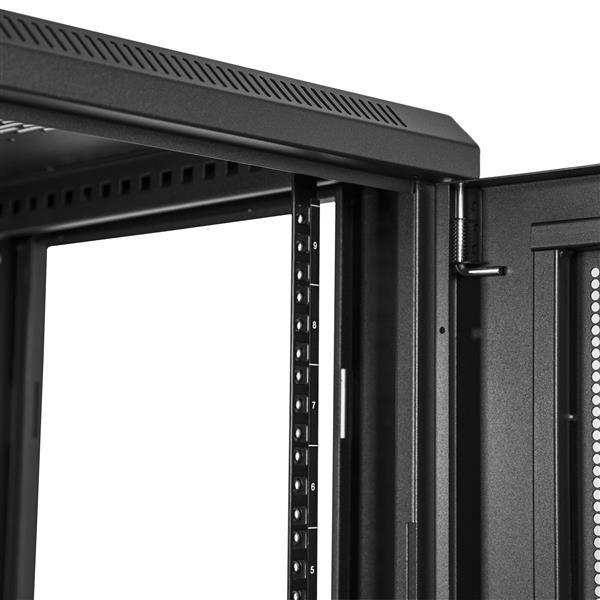

The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.

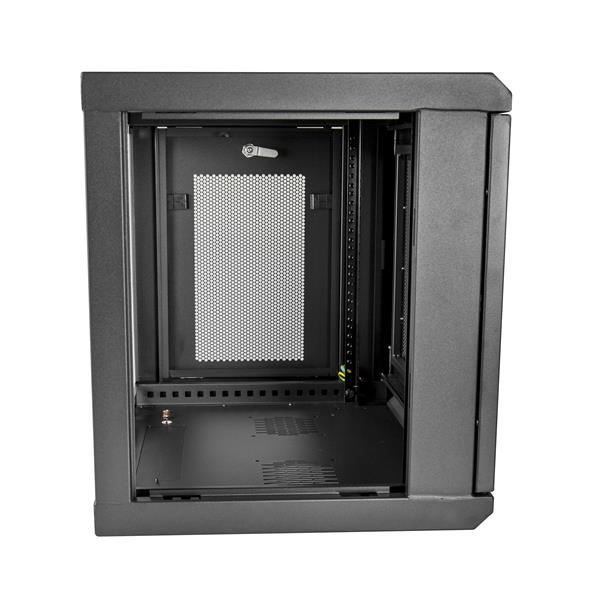

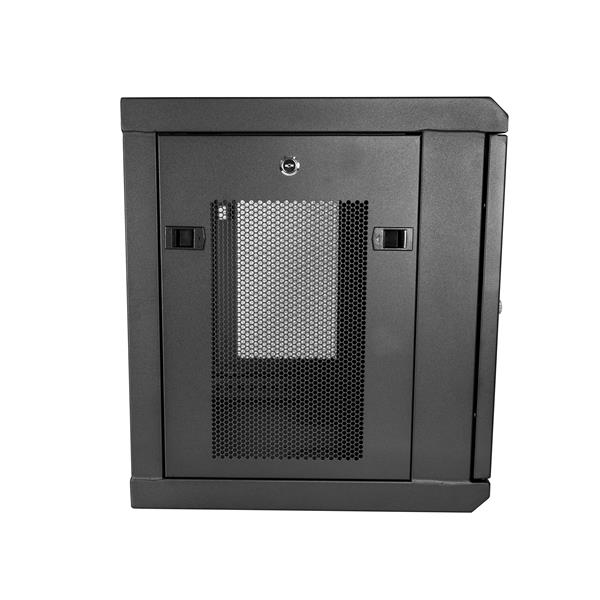

The 9U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you’ll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

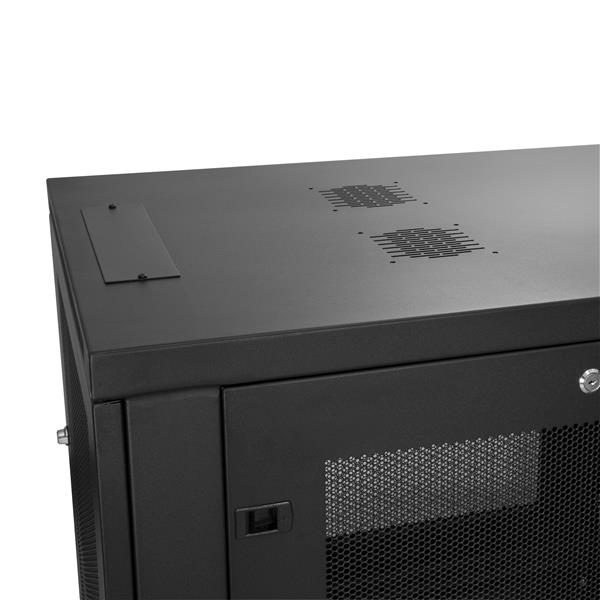

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

The RK9WALM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

– Save space by wall-mounting your servers or networking equipment

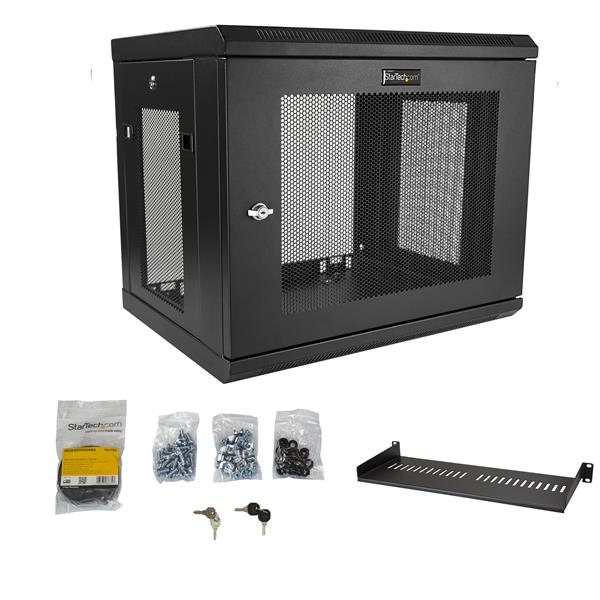

– Comes fully assembled and includes a 1U shelf and a 3 meter hook-and-loop cable tie
– Easily install your equipment with adjustable 2-post mounting rails

– Save space by wall-mounting your servers or networking equipment
– Comes fully assembled and includes a 1U shelf and a 3 meter hook-and-loop cable tie
– Easily install your equipment with adjustable 2-post mounting rails
– Secure your mission-critical equipment with a locked enclosure
– Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes


Feature Feature Value
Rack capacity 9U
Type Wall mounted rack
Maximum weight capacity 90 kg
Product colour Black
Material Steel
Frame type Closed
Design 2-post
Back door construction Steel
Front door construction Steel
Removable front door Y
Key lock Y
Front door key lock Y
Adjustable mounting rails Y
RoHS compliance Y
Certification CE, REACH
Width 600 mm
Depth 450 mm
Height 511 mm
Inner width 594 mm
Inner depth 433 mm
Weight 17.7 kg
Mounting depth (max) 37 cm
Nuts included Y
Number of nuts 36
Screws included Y
Number of screws 36
Wall mounting kit Y
Manual Y
Package width 670 mm
Package depth 530 mm
Package height 580 mm
Package weight 20.8 kg
Compliance industry standards EIA/ECA-310-E
Rack capacity

9U

Material

Steel

Design

2-post

Key lock

Y

Weight

17.7 kg

Wall mounting kit

Y

Type

Wall mounted rack

Width

600 mm
