SKU: ICUSB23208FD Category: 8-Port USB-to-Serial Adapter Hub

* Images are for illustrative purposes only.

£301.00 £250.83 Ex. VAT

Free UK Shipping Available*

Availability: 3 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

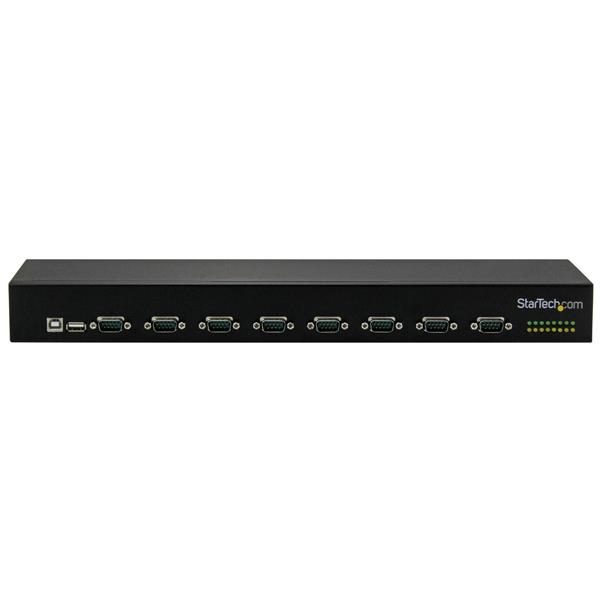

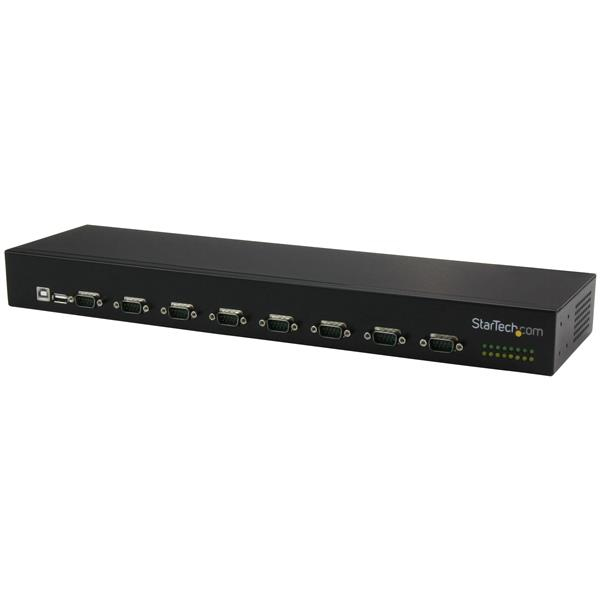

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.

Meets the demands of industrial environments

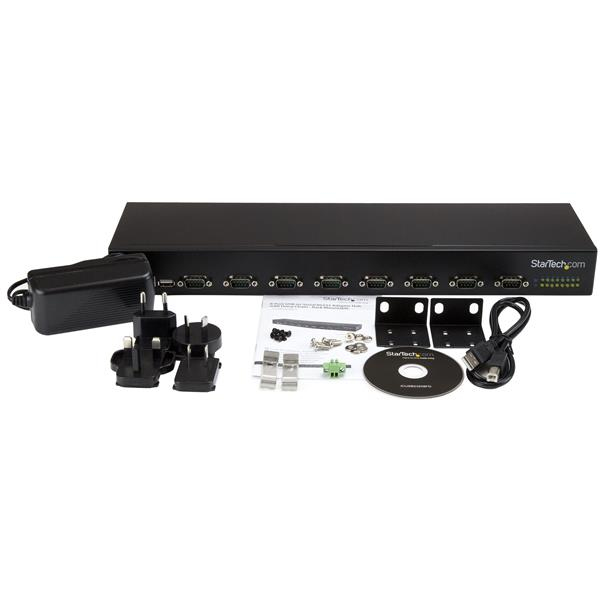

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

The ICUSB23208FD is backed by a 2-year warranty and free lifetime technical support.

Feature Feature Value
Ports quantity 8
Host interface USB 2.0
Hub interfaces Serial
USB 2.0 ports quantity 1
RS-232 ports 8
Terminal block port Y
DC-in jack Y
Product colour Black
Housing material Aluminium
LED indicators Y
Certification CE, FCC, RoHS
Power consumption (max) 36 W
Input voltage 100 – 240 V
Input current 1.5 A
Output voltage 12 V
Output current 3 A
Power plug type Type B
Width 120 mm
Depth 430 mm
Height 45 mm
Weight 1.36 kg
Package width 215 mm
Package depth 450 mm
Package height 60 mm
Package weight 2.1 kg
Included power plug types AU,EU,NA,UK
Cables included USB
Terminal block included Y
Quick installation guide Y
Operating temperature (T-T) -40 – 85 °C
Storage temperature (T-T) -65 – 150 °C
Operating relative humidity (H-H) 20 – 80%
Chipset FTDI – FT4232
Ports quantity


Hub interfaces



1.36 kg


FTDI – FT4232

Host interface

USB 2.0

USB 2.0 ports quantity



120 mm
