StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)

SKU: SV831DUSBAU Category:

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£340.82 £284.02 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

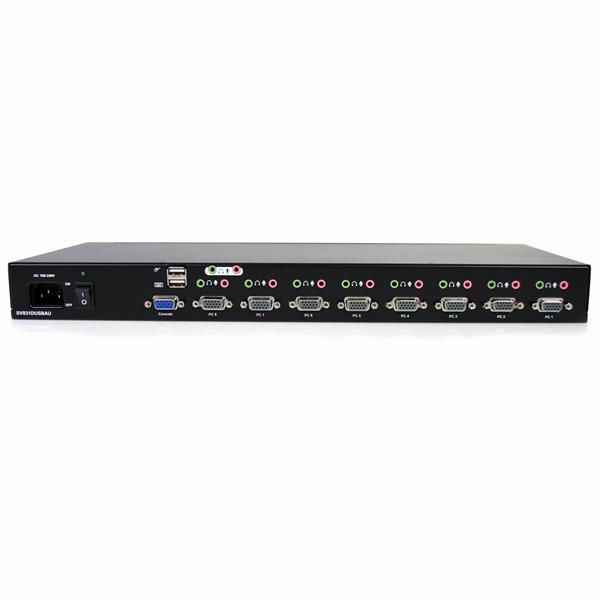

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

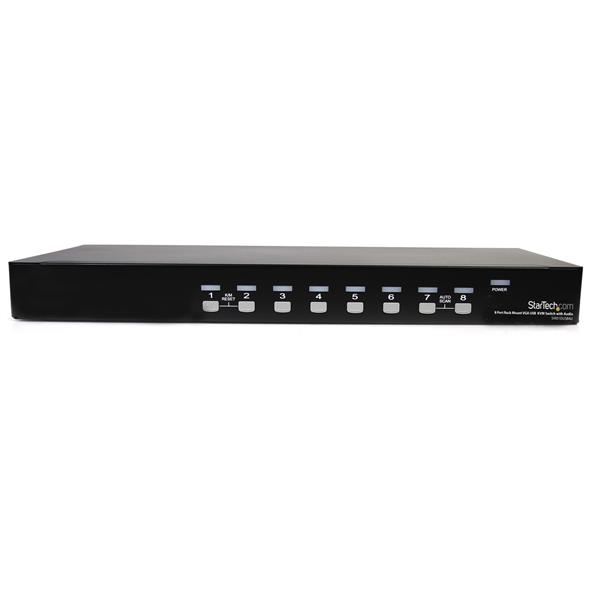

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
– Rugged, rack mountable 1U metal chassis is ideal for any environment
– User friendly access through the OSD saves configuration time and frustration
– Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver


Feature Feature Value
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type VGA
Console ports 3.5mm headphone,3.5mm mic,USB A,VGA (D-Sub)
Console USB ports quantity 2
USB 2.0 ports quantity 2
USB connector type USB Type-A
Headphone outputs 8
Number of microphone inputs 8
DC-in jack Y
Maximum resolution 1920 x 1440 pixels
Maximum analog resolution 1920 x 1440 pixels
Plug and Play Y
Daisy chain Y
Number of users 1 user(s)
Rack mounting Y
Product colour Black
Rack capacity 1U
Housing material Steel
Cascadable Y
LED indicators Y
RoHS compliance Y
Certification CE, FCC, UL
On Screen Display (OSD) Y
AC input voltage 110-240 V
Input current 1.8 A
Output voltage 12 V
Output current 4 A
Power consumption (typical) 48 W
Power plug type Type M
Operating temperature (T-T) 5 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 540 mm
Depth 180 mm
Height 45 mm
Weight 2.6 kg
Package width 123 mm
Package depth 591 mm
Package height 264 mm
Package weight 4.7 kg
Cables included AC
Manual Y
AC adapter included Y
Rubber feet Y
Audio support Y
IP control N
