8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables

SKU: SV831DUSBUK Category: 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£342.05 £285.04 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

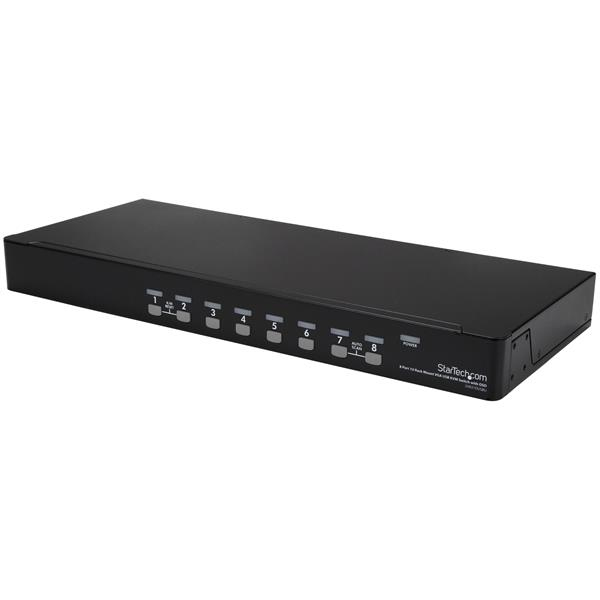

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.

Backed by a 3-year warranty and free lifetime technical support.

The Advantage
– For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
– Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
– Rugged rack mountable metal chassis allows for versatility and durability in almost any environment

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type VGA

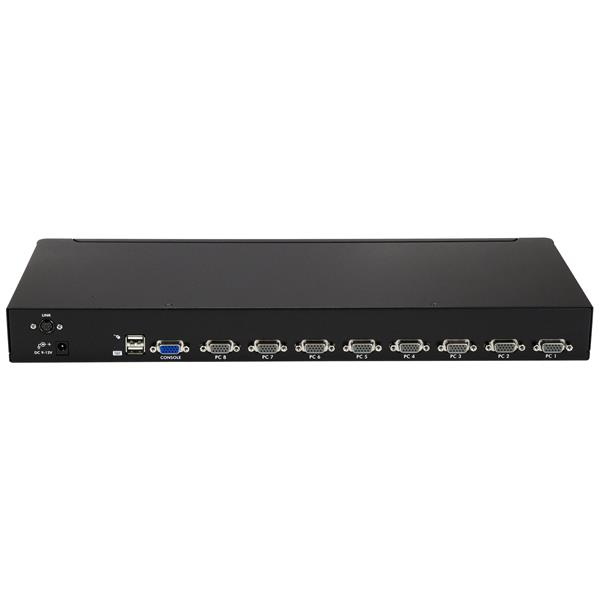

Console ports USB A,VGA (D-Sub)
Console USB ports quantity 2
USB 2.0 ports quantity 2
USB connector type USB Type-A
DC-in jack Y
Maximum resolution 1920 x 1440 pixels
Maximum analog resolution 1920 x 1440 pixels
Plug and Play Y
Daisy chain Y
Rack mounting Y
Product colour Black
Rack capacity 1U
Housing material Steel
Cascadable Y
LED indicators Power
Hot keys Y
RoHS compliance Y
Certification CE, FCC
On Screen Display (OSD) Y
AC input voltage 110-240 V
Output voltage 12 V
Output current 1 A
Power consumption (typical) 12 W
Compatible power plug types AU,EU,UK,US
Operating temperature (T-T) 5 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 435 mm
Depth 180 mm
Height 45 mm
Weight 2.18 kg
Package width 590 mm
Package depth 260 mm
Package height 120 mm
Package weight 5 kg
Cables included USB,VGA
Manual Y
AC adapter included Y
Rack mount kit Y
Audio support N
IP control N
Mouse port type


USB 2.0 ports quantity


Maximum analog resolution

1920 x 1440 pixels

On Screen Display (OSD)



2.18 kg

Rack mount kit


IP control


Keyboard port type


Video port type


USB connector type

USB Type-A

Maximum resolution

1920 x 1440 pixels

Rack mounting


Rack capacity


Hot keys



435 mm
