8 Port 1U Rackmount DVI USB KVM Switch

SKU: SV831DVIU Category: 8 Port 1U Rackmount DVI USB KVM Switch


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£660.35 £550.29 Ex. VAT

Availability: 4 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

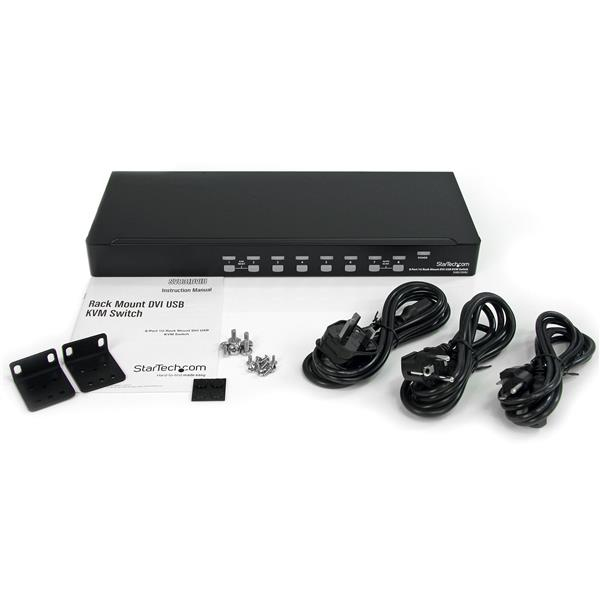

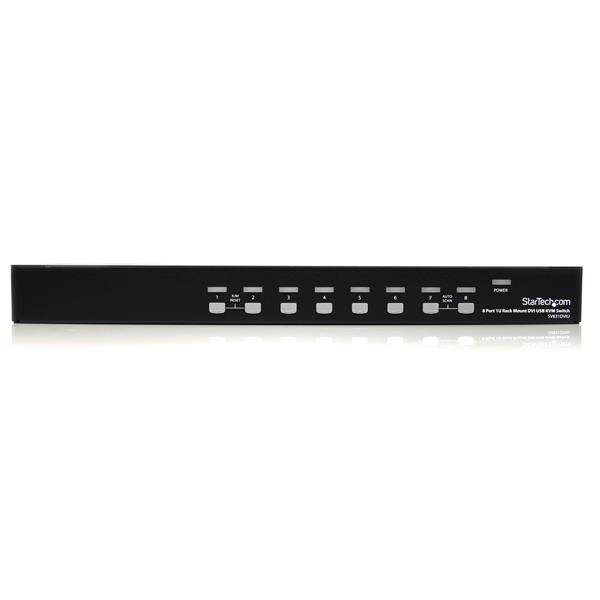

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.

The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920×1200 via DVI or HDMI connection (using DVI to HDMI adapter – see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.

A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.

Backed by a 3-year warranty and free lifetime technical support.

Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.

The Advantage
– High-resolution 1920×1200 DVI connections support control of DVI systems or HDMI systems (with adapter)
– Supports wireless and combo style mouse and keyboard sets for added flexibility
– Rugged, solid steel rack-mountable case offers durability even in harsh environments

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type DVI-I
USB 2.0 ports quantity 10
Audio connections N
Ethernet LAN N
Maximum resolution 1920 x 1200 pixels
Maximum analog resolution 1920 x 1200 pixels
Daisy chain N
Rack mounting Y
Product colour Black
Rack capacity 1U
Housing material Steel
LED indicators Y
Hot keys Y
Mean time between failures (MTBF) 45254 h
RoHS compliance Y
Certification CE, FCC
AC input voltage 100-240 V
Input current 1.8 A
Output voltage 12 V
Output current 4 A
External power adapter Y
Power plug type Type M
Compatible power plug types AU,EU,UK,US
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 438 mm
Depth 180 mm
Height 44 mm
Weight 3.5 kg
Package width 590 mm
Package depth 261 mm
Package height 87 mm
Package weight 4 kg
Manual Y
Rack mount kit Y
IP control Y
Mouse port type


USB 2.0 ports quantity


Ethernet LAN


Maximum analog resolution

1920 x 1200 pixels

Rack mounting


Rack capacity



3.5 kg

Rack mount kit


Keyboard port type


Video port type


Maximum resolution

1920 x 1200 pixels

Hot keys



438 mm

IP control
