SKU: ST7300USBME Category:

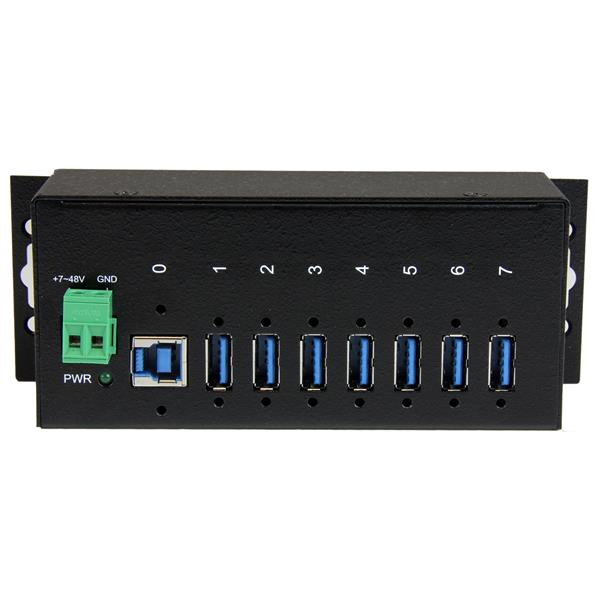

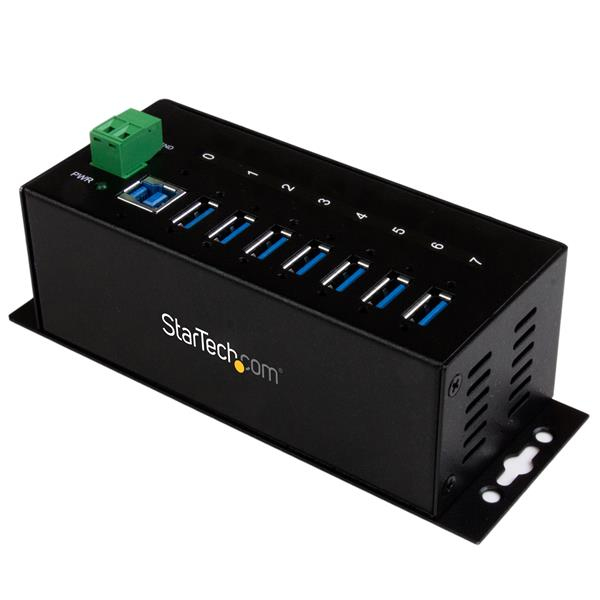

StarTech.com 7-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection

* Images are for illustrative purposes only.

£114.74 £95.62 Ex. VAT

Availability: 304 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail |5 Gbps

This TAA compliant 7-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

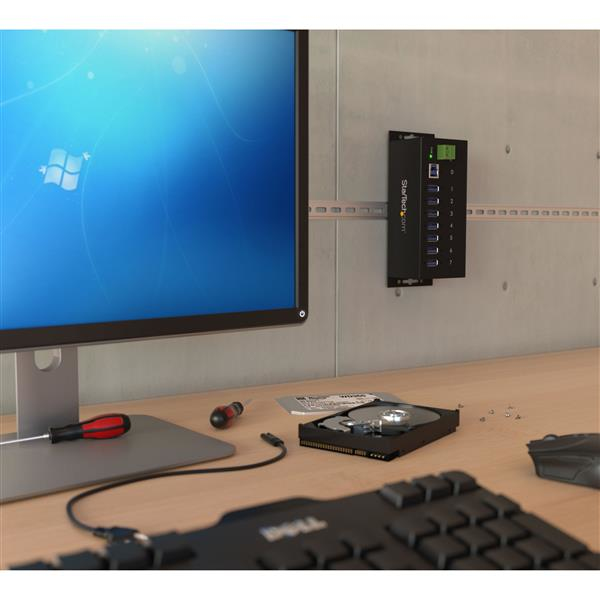

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.

The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

– Protects your connected devices with 15kV Air and 8kV Contact ESD protection
– Surge protection of 350W on the downstream and upstream USB ports
– Mount industrial USB hub where required with built-in mounting brackets or included DIN rails


Feature Feature Value
Ports quantity 7
Host interface USB 3.0 (3.1 Gen 1) Type-B
Hub interfaces USB 3.0 (3.1 Gen 1) Type-A
Terminal block port Y
Data transfer rate 5000 Mbit/s
Product colour Black
Housing material Steel
Surge protection Y
LED indicators Power
Certification CE, FCC, RoHS, TAA, REACH
Power source type DC
Input voltage 7 – 48 V
Width 54 mm
Depth 145 mm
Height 45 mm
Weight 325 g
Package width 295 mm
Package depth 190 mm
Package height 69 mm
Package weight 629 g

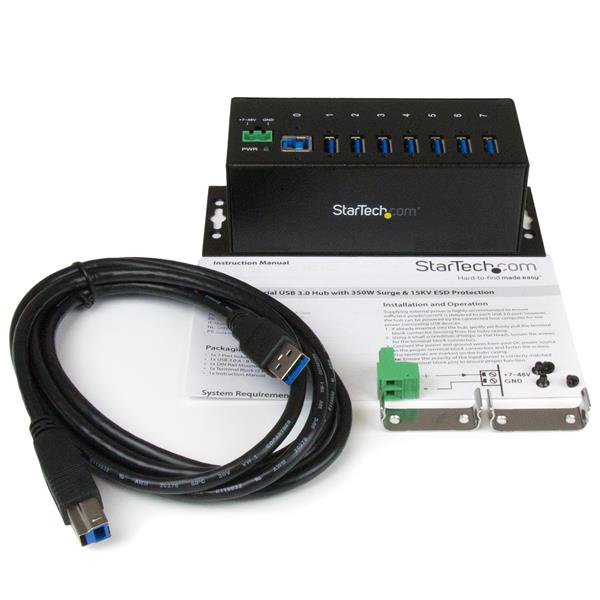

Cables included USB
Manual Y
Terminal block included Y
DIN rail kit included Y
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -20 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Mean time between failures (MTBF) 126106 h
Chipset Genesys Logic – GL3520
Ports quantity

7

Hub interfaces

USB 3.0 (3.1 Gen 1) Type-A

Data transfer rate

5000 Mbit/s

Width

54 mm

Chipset

Genesys Logic GL3520

Host interface

USB 3.0 (3.1 Gen 1) Type-B

Surge protection

Y

Weight

325 g

DIN rail kit included

Y
