StarTech.com 7-Port Industrial USB 2.0 Hub with ESD & 350W Surge Protection

SKU: ST7200USBM Category:

StarTech.com 7-Port Industrial USB 2.0 Hub with ESD & 350W Surge Protection

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£81.91 £68.26 Ex. VAT

Availability: 137 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail |480 Mbps

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

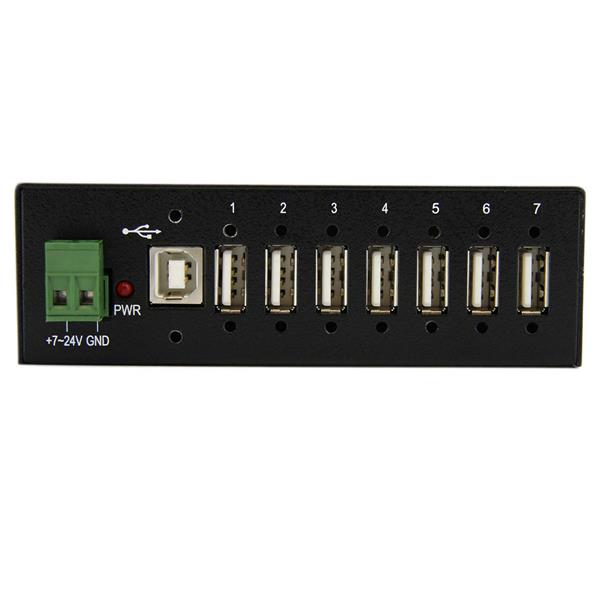

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

– A single USB host connection provides 7 additional USB ports with per port surge protection
– Surface and DIN mounting options and terminal block power input to suit a wide range of industrial applications
– Backed by a StarTech.com 2-year warranty and free lifetime technical support


Feature Feature Value
Ports quantity 7
Host interface USB 2.0 Type-B
Hub interfaces USB 2.0
USB 2.0 ports quantity 7
Terminal block port Y
Data transfer rate 480 Mbit/s
Product colour Black
Housing material Steel
Surge protection Y
LED indicators Y
Hot-swap Y
Plug and Play Y
Certification CE, FCC, RoHS, REACH, TAA
Input voltage 7 – 24 V
Width 61.5 mm
Depth 133 mm
Height 36.3 mm
Weight 283 g
Package width 216 mm
Package depth 151 mm
Package height 51 mm
Package weight 488 g
Cables included USB
Manual Y
DIN rail kit included Y
Operating temperature (T-T) 0 – 55 °C
Storage temperature (T-T) -20 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Mean time between failures (MTBF) 170227 h
Chipset Terminus – FE2.1
Ports quantity

7

Hub interfaces

USB 2.0

Surge protection

Y

Hot-swap

Y

Width

61.5 mm

DIN rail kit included

Y

Host interface

USB 2.0 Type-B

USB 2.0 ports quantity

7

Data transfer rate

480 Mbit/s

Weight

283 g

Chipset

Terminus – FE2.1
