5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive

SKU: HSB100SATBK Category: 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£19.00 £15.83 Ex. VAT

Availability: 70 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

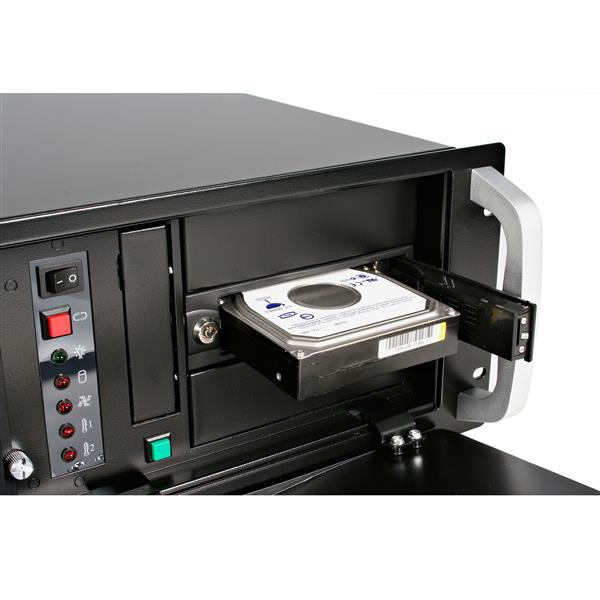

Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it’s as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by’s 2-year warranty.

The Advantage

– Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
– Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
– Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay

Feature Feature Value
Size 13.3 cm (5.25″)
Type Bezel panel
Number of HDDs supported 1
HDD size 3.5″
HDD interface Serial ATA,Serial ATA II,Serial ATA III
Product colour Black
Material Aluminium,PU plastic
Width 149 mm
Depth 184 mm
Height 42 mm
Weight 305 g
Package weight 400 g
Operating temperature (T-T) 0 – 50 °C

13.3 cm (5.25")

Number of HDDs supported


HDD interface

Serial ATA,Serial ATA II,Serial ATA III


Aluminium,PU plastic


305 g


Bezel panel

HDD size



149 mm
