SKU: SV431HDU3A2 Category: 4-Port HDMI KVM Switch – USB 3.0 – 1080p

* Images are for illustrative purposes only.

£405.71 £338.09 Ex. VAT

Free UK Shipping Available*

Availability: 32 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

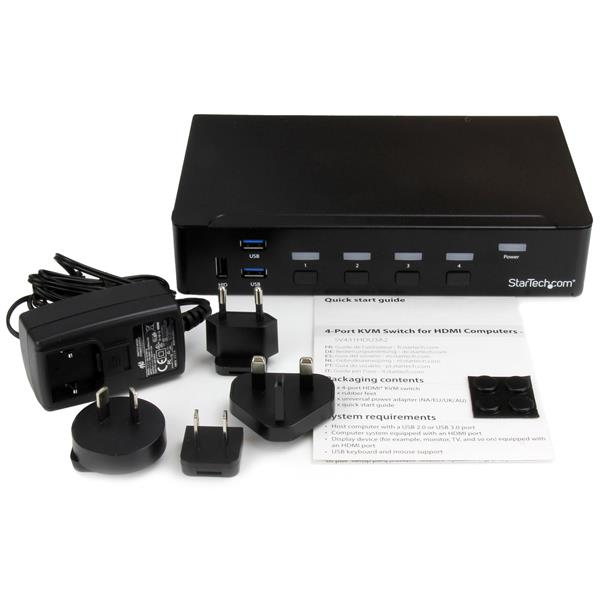

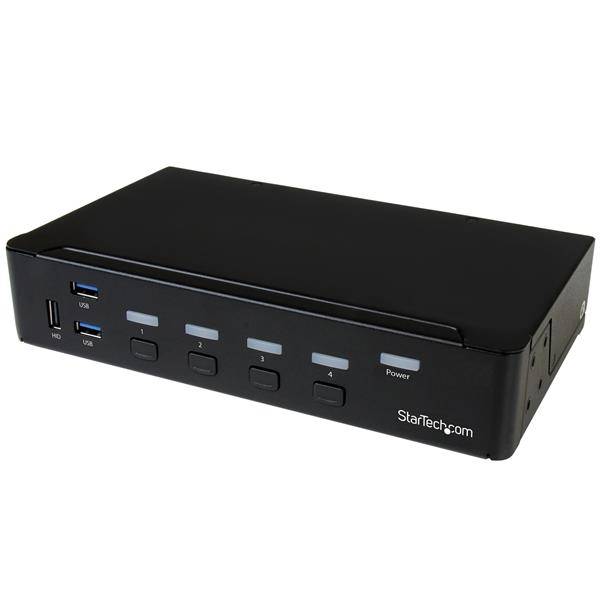

This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that’s separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals – great for quickly transferring data to external USB 3.0 drives.

HD picture quality
Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.

Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431HDU3A2 is backed by a 2-year warranty and free lifetime technical support.

Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type HDMI

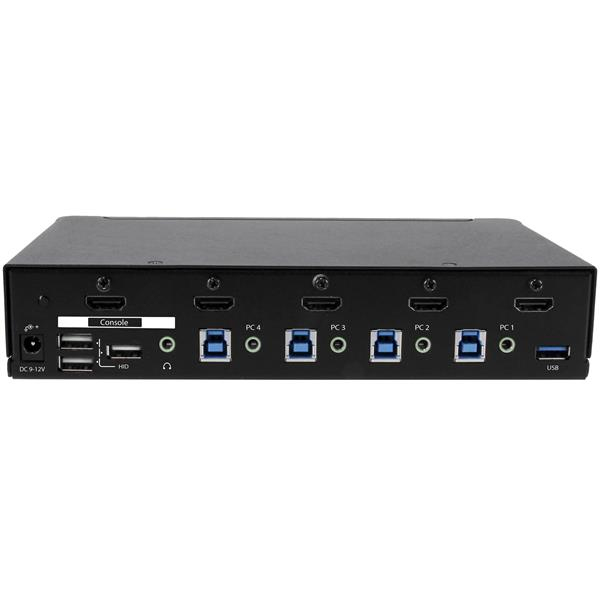

Console ports 3.5mm headphone,HDMI,USB A
Console USB ports quantity 4
USB 3.0 (3.1 Gen 1) Type-A hub ports quantity 3
USB connector type USB Type-A
Audio connections Y
Headphone outputs 4
DC-in jack Y
Ethernet LAN N
Maximum resolution 1920 x 1080 pixels
Plug and Play Y
Daisy chain N
Rack mounting Y
Product colour Black
Maximum cable length 10000 m
LED indicators Link,Power
Hot keys Y
RoHS compliance Y
Certification CE, FCC, UL, PSE
Built-in display N
On Screen Display (OSD) N
AC input voltage 100-240 V
Input current 0.6 A
Output voltage 12 V
Output current 1.5 A
Power plug type Type M
Compatible power plug types AU,EU,UK,US
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -10 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 130 mm
Depth 220 mm
Height 43 mm
Weight 1.06 kg
Package width 247 mm
Package depth 294 mm
Package height 88 mm
Package weight 1.6 kg
Quick installation guide Y
Rubber feet Y
Audio channels 2.0
Audio support Y
IP control N
Maximum resolution

1920 x 1080 pixels

Mouse port type



1.06 kg

Keyboard port type


Video port type


USB connector type

USB Type-A

Headphone outputs


Ethernet LAN


Rack mounting


Maximum cable length

10000 m

Hot keys


On Screen Display (OSD)



130 mm

IP control
