StarTech.com 4-Port Gigabit Midspan – PoE+ Injector – 802.3at/af

SKU: POEINJ4G Category:

StarTech.com 4-Port Gigabit Midspan – PoE+ Injector – 802.3at/af

* Images are for illustrative purposes only.

£145.18 £120.98 Ex. VAT

Availability: 10 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

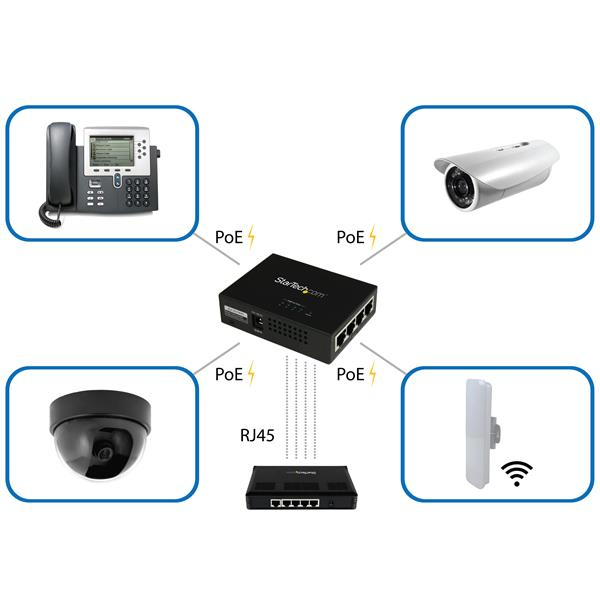

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.

More power, with less cost and hassle
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Feature Feature Value
Type Network transmitter
Maximum transfer distance 100 m
Power over Ethernet (PoE) Y
Data transfer rate 2000 Mbit/s
Full duplex Y
Auto MDIX IEEE Y
Auto-negotiation Y
Duplex system Full
Plug and Play Y
Mean time between failures (MTBF) 50000 h
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Ethernet LAN (RJ-45) ports 8
Power over Ethernet (PoE) ports quantity 4
DC-in jack Y
Product colour Black
Housing material Steel
LED indicators PoE,Power
RoHS compliance Y
Certification CE, FCC
AC input voltage 100-240 V
Power consumption (max) 120 W
Output voltage 52 V
Output current 2.31 A
Power plug type Type M
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -10 – 70 °C
Operating relative humidity (H-H) 5 – 95%
Width 70 mm
Depth 94 mm
Height 26 mm
Weight 204 g
Cables included AC
Manual Y
AC adapter included Y
Package width 220 mm
Package depth 255 mm
Package height 100 mm
Package weight 1.5 kg
Type

Network transmitter

Power over Ethernet (PoE)

Y

Full duplex

Y

Ethernet LAN (RJ-45) ports

8

Width

70 mm

Maximum transfer distance

100 m

Data transfer rate

2000 Mbit/s

Duplex system

Full

Weight

204 g
