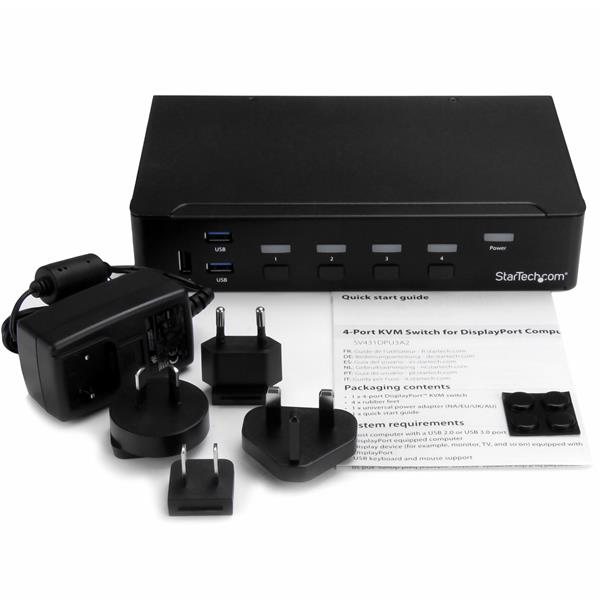

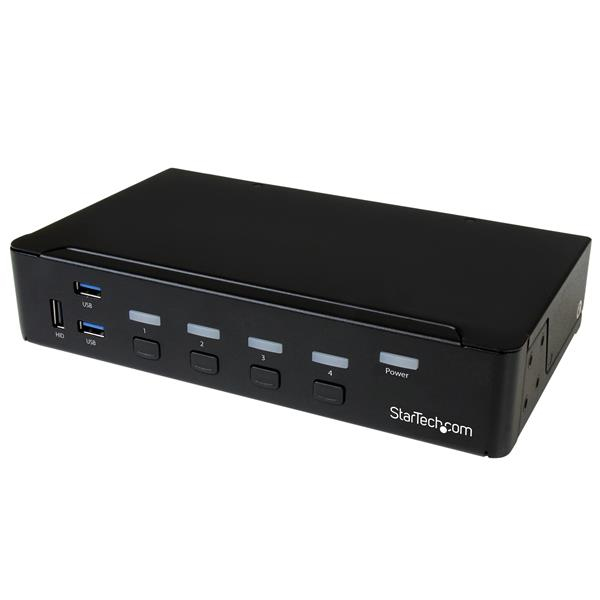

StarTech.com 4-Port DisplayPort KVM Switch – USB 3.0 – 4K 30Hz

* Images are for illustrative purposes only.

£464.82 £387.35 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that’s separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals – great for quickly transferring data to external USB 3.0 drives.

Astonishing picture quality

Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The StarTech.com Advantage

– Easily share peripheral devices using the built-in USB 3.0 hub
– Astonishing picture quality with support for Ultra HD 4K resolutions
– Full multimedia control with separate 3.5 mm auxiliary support


Feature Feature Value
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort

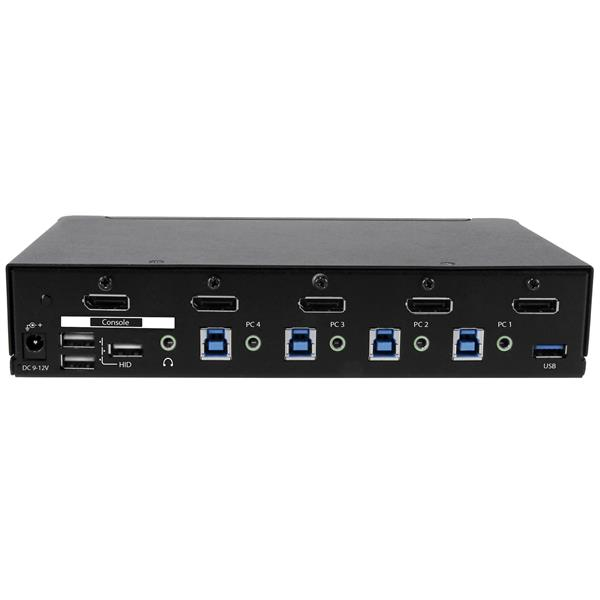

Console ports 3.5mm headphone,DisplayPort,USB A
HDCP Y
Console USB ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 3
USB connector type USB Type-A
USB version 3.2 Gen 1 (3.1 Gen 1)
Audio connections Y
Headphone outputs 4
DC-in jack Y
Ethernet LAN N
HD type 4K Ultra HD
Maximum resolution 3840 x 2160 pixels
Plug and Play Y
Daisy chain N
Maximum operating distance 10 m
Rack mounting Y
Product colour Black
LED indicators Link,Power
Hot keys Y
RoHS compliance Y
Certification CE, FCC, UL, PSE
Built-in display N
AC input voltage 100-240 V
Output voltage 12 V
Output current 1.5 A
Power consumption (typical) 18 W
Power plug type Type M
Compatible power plug types AU,EU,UK,US
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -10 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 130 mm
Depth 220 mm
Height 43 mm
Weight 1.06 kg
Package width 247 mm
Package depth 294 mm
Package height 84 mm
Package weight 1.6 kg
Quick installation guide Y
Rubber feet Y
Audio channels 2.0
Audio support Y
IP control N
Mouse port type

USB

USB connector type

USB Type-A

HD type

4K Ultra HD

Hot keys

Y

Weight

1.06 kg

Keyboard port type

USB

Video port type

DisplayPort

HDCP

Y

USB version

3.2 Gen 1 (3.1 Gen 1)

Headphone outputs

4

Ethernet LAN

N

Maximum resolution

3840 x 2160 pixels

Rack mounting

Y

Width

130 mm

IP control

N
