4 Port 1U Rackmount USB KVM Switch with OSD

SKU: SV431DUSBU Category: 4 Port 1U Rackmount USB KVM Switch with OSD


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£173.68 £144.73 Ex. VAT

Availability: 9 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor

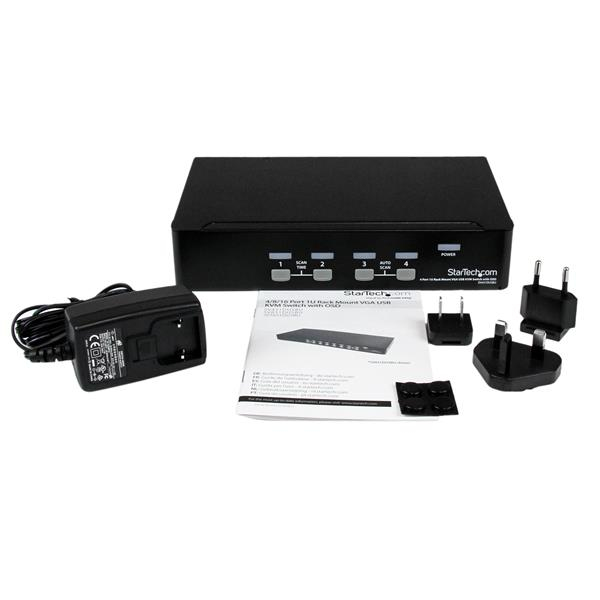

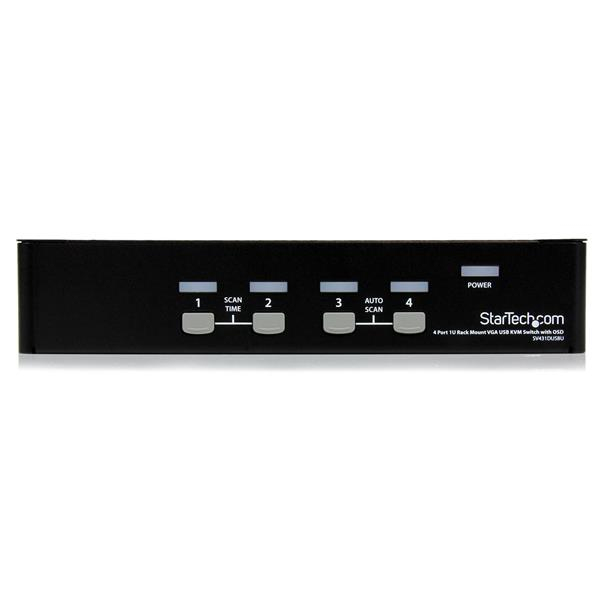

The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
Backed by a 3-year warranty and free lifetime technical support.
The Advantage
– Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
– On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
– Absolutely no software or drivers required providing a completely OS independent KVM solution

Feature Feature Value
Number of computers controlled 4
Keyboard port type N
Mouse port type N
Video port type VGA
Console ports USB A,VGA (D-Sub)
Console USB ports quantity 2
USB 2.0 ports quantity 2
Audio connections N
DC-in jack Y
Maximum resolution 1920 x 1440 pixels
Maximum analog resolution 1920 x 1440 pixels
Plug and Play Y
Daisy chain Y
Rack mounting Y
Product colour Black
Rack capacity 1U
Housing material Steel
LED indicators Power
RoHS compliance Y
Certification CE, FCC
Built-in display N
On Screen Display (OSD) Y
AC input voltage 110-240 V
Input current 0.2 A
Output voltage 9 V
Output current 0.6 A
Power consumption (typical) 5.4 W
External power adapter Y
Power plug type Type M
Compatible power plug types AU,EU,UK,US
Operating temperature (T-T) 5 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 220 mm
Depth 130 mm
Height 43 mm
Weight 1.5 kg
Package width 89 mm
Package depth 411 mm
Package height 214 mm
Package weight 1.6 kg
Manual Y
AC adapter included Y
Rubber feet Y
Audio support N
IP control N
